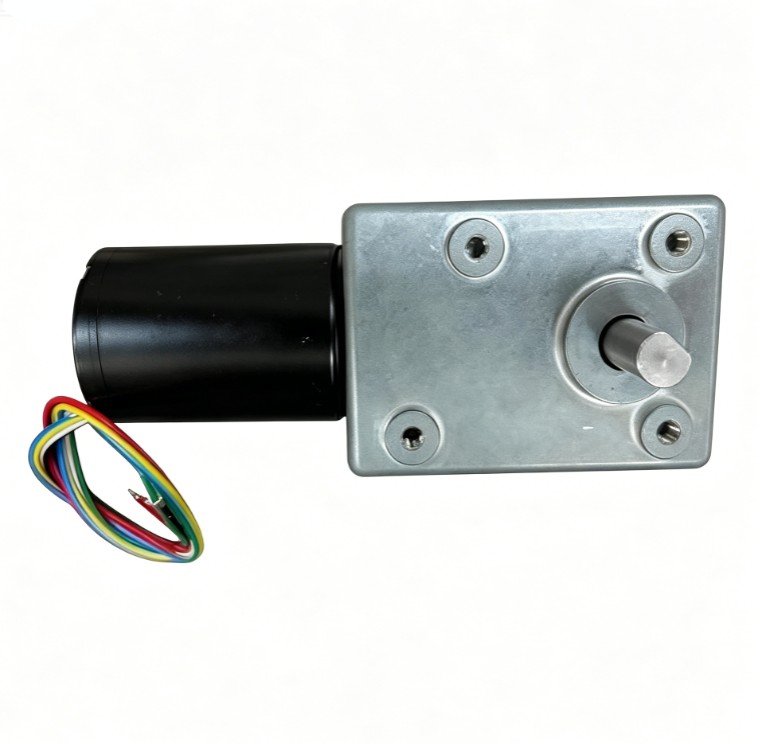

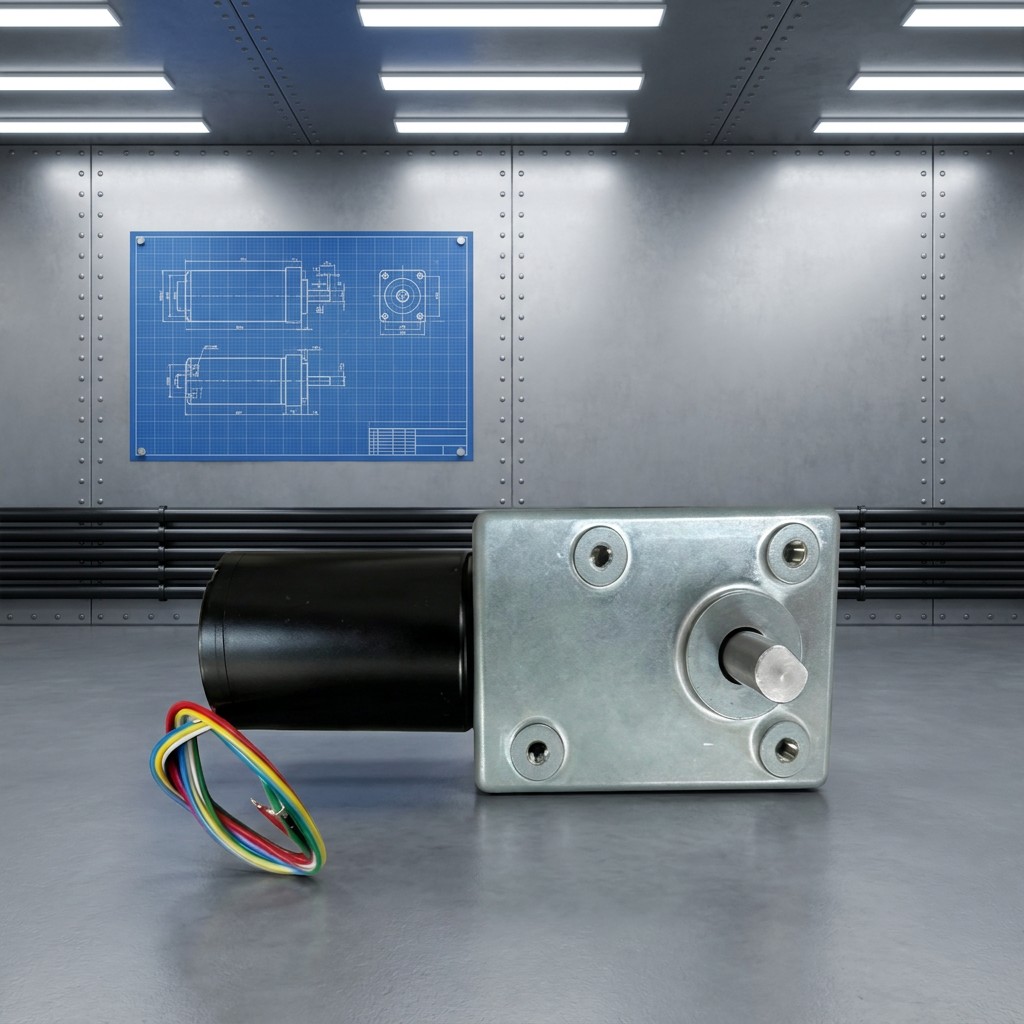

High-Torque 5882Z-4260 Brushless Worm Gear Motor
- · Model: 5882Z-4260 High-Torque Brushless Worm Gear Motor
- · Motor Core Type: Brushless DC (BLDC) 4260 Motor with 5882 Right-Angle Worm Gearbox
- · Rated Voltage Options: 12.0V DC / 24.0V DC (Customizable)
- · No-Load Speed: 5 RPM – 470 RPM (Depending on Gear Ratio)
- · Rated Torque: 3.5 kg.cm – 45.0 kg.cm
Product Overview
The 5882Z-4260 Brushless Worm Gear Motor is an advanced, high-torque motion control unit designed for demanding industrial, commercial, and automated equipment. Combining a high-efficiency 4260 brushless DC (BLDC) motor core with a heavy-duty 5882-size 90-degree right-angle gearbox, this motor delivers remarkable power density, precise control features, self-locking safety, and extended operational lifespan in compact installation spaces.
Self-Locking Mechanism
Heavy-Duty Metal Gears
90° Right Angle Output
12V / 24V DC
OEM/ODM Customization
Core Design & Technical Highlights
|
01. High-Efficiency Brushless Core
Utilizes a 4260 BLDC motor architecture that eliminates brush wear, reduces maintenance downtime, and boosts electrical-to-mechanical conversion efficiency. Ideal for continuous-duty applications requiring long service life. |
02. Automatic Self-Locking Security
The worm drive structure inherently holds output position when power is off, preventing load back-driving. This provides solid safety in winches, door operators, and lifting mechanisms without needing secondary electromagnetic brakes. |
|
03. Heavy-Duty All-Metal Construction
Engineered with precision-machined alloy gears, steel worm shafts, and a zinc die-cast housing. It supports high continuous torque loads and handles stall torque up to 70 kg.cm without tooth deformation. |
04. Precise Speed & Motion Control
Integrated control inputs support PWM/0-5V speed regulation, direction switching (CW/CCW), and tachometer FG signal feedback, simplifying closed-loop control integration in automated systems. |
Custom Engineering & OEM Options
Tailored Solutions for Your Specific Application Needs
- Shaft Modifications: Custom D-cut shafts, double output shafts, threaded rods, or stainless steel keyway shafts.
- Voltage & Speed Tuning: Customized BLDC winding options for 12V, 24V, or custom DC voltages to hit targeted RPM and torque goals.
- Harness & Connectors: Tailored lead lengths, heat-shrink insulation, and specified terminal connectors (JST, Molex, etc.).
- Feedback Integration: Optional Hall-effect magnetic encoders for precision closed-loop positioning and speed feedback.
Ready to Integrate the 5882Z-4260 Worm Gear Motor into Your Project?
Our engineering team provides full OEM/ODM assistance, 3D STEP models, sample testing evaluation, and custom volume manufacturing support to fulfill your exact application requirements.
Technical Specifications
| Model | 5882Z-4260 High-Torque Brushless Worm Gear Motor |
| Motor Core Type | Brushless DC (BLDC) 4260 Motor with 5882 Right-Angle Worm Gearbox |
| Rated Voltage Options | 12.0V DC / 24.0V DC (Customizable) |
| No-Load Speed | 5 RPM – 470 RPM (Depending on Gear Ratio) |
| Rated Torque | 3.5 kg.cm – 45.0 kg.cm |
