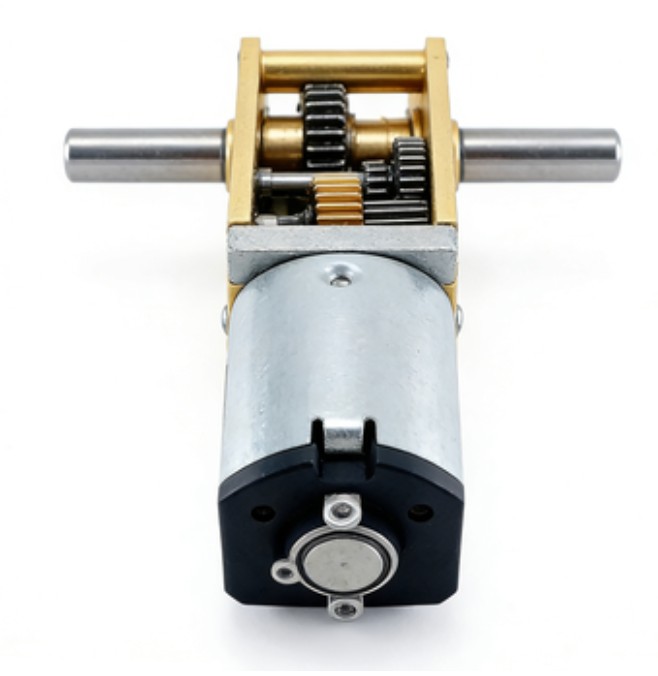

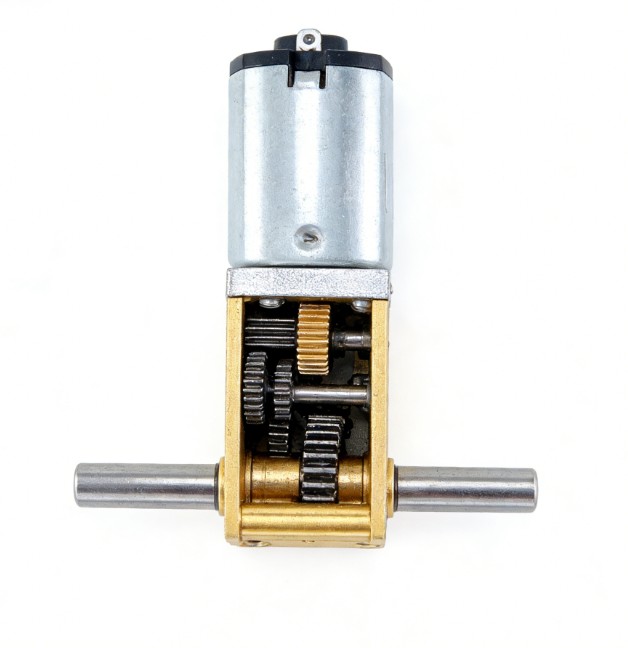

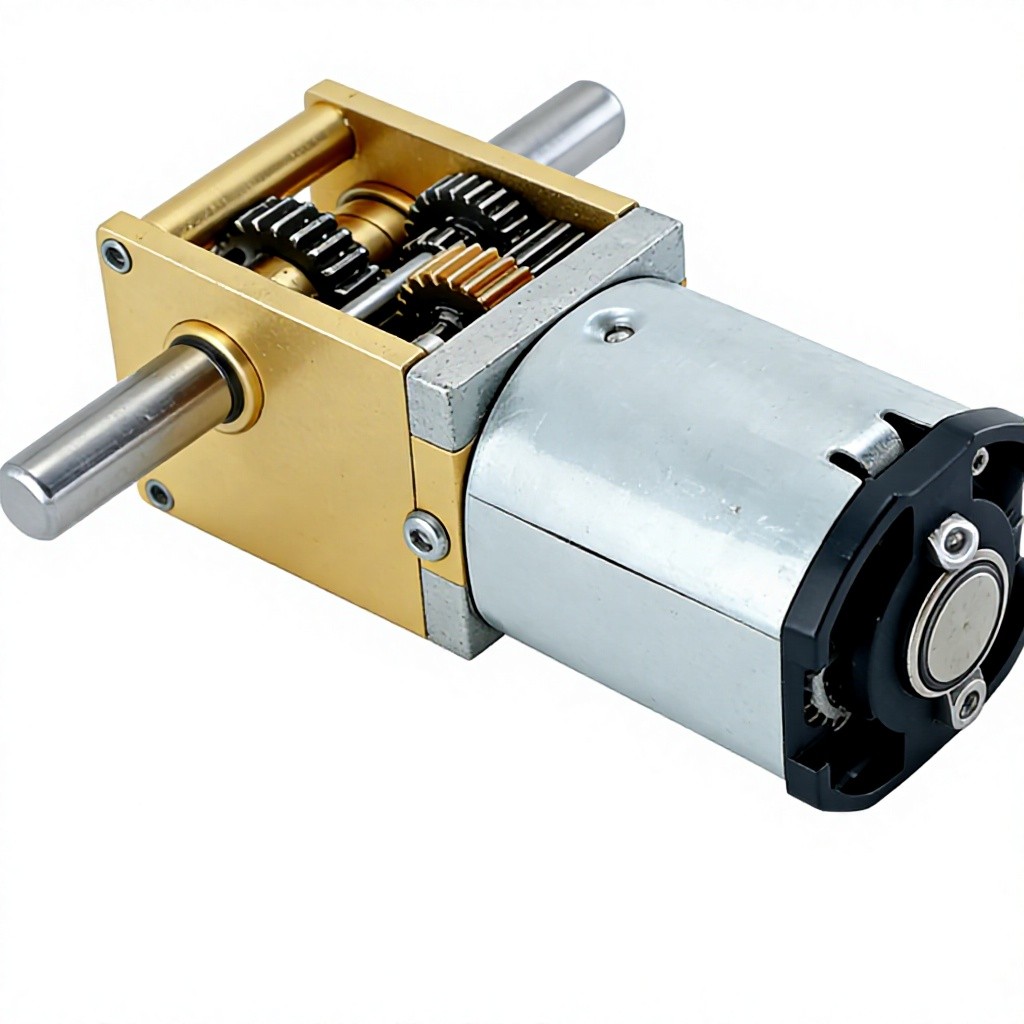

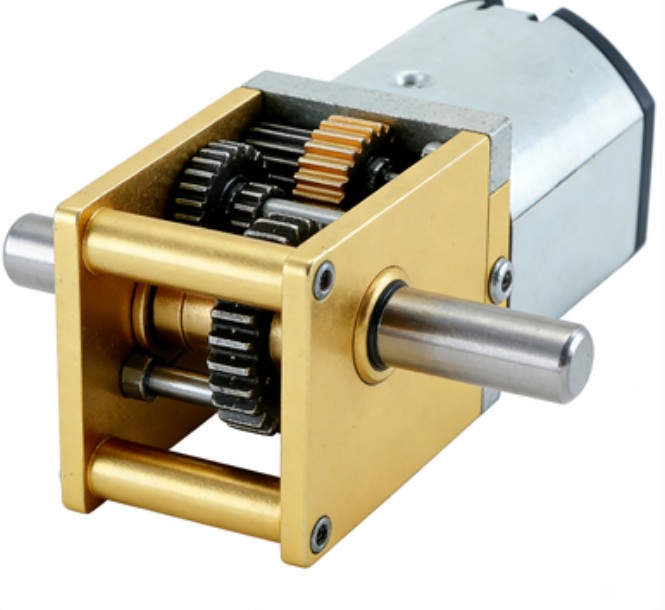

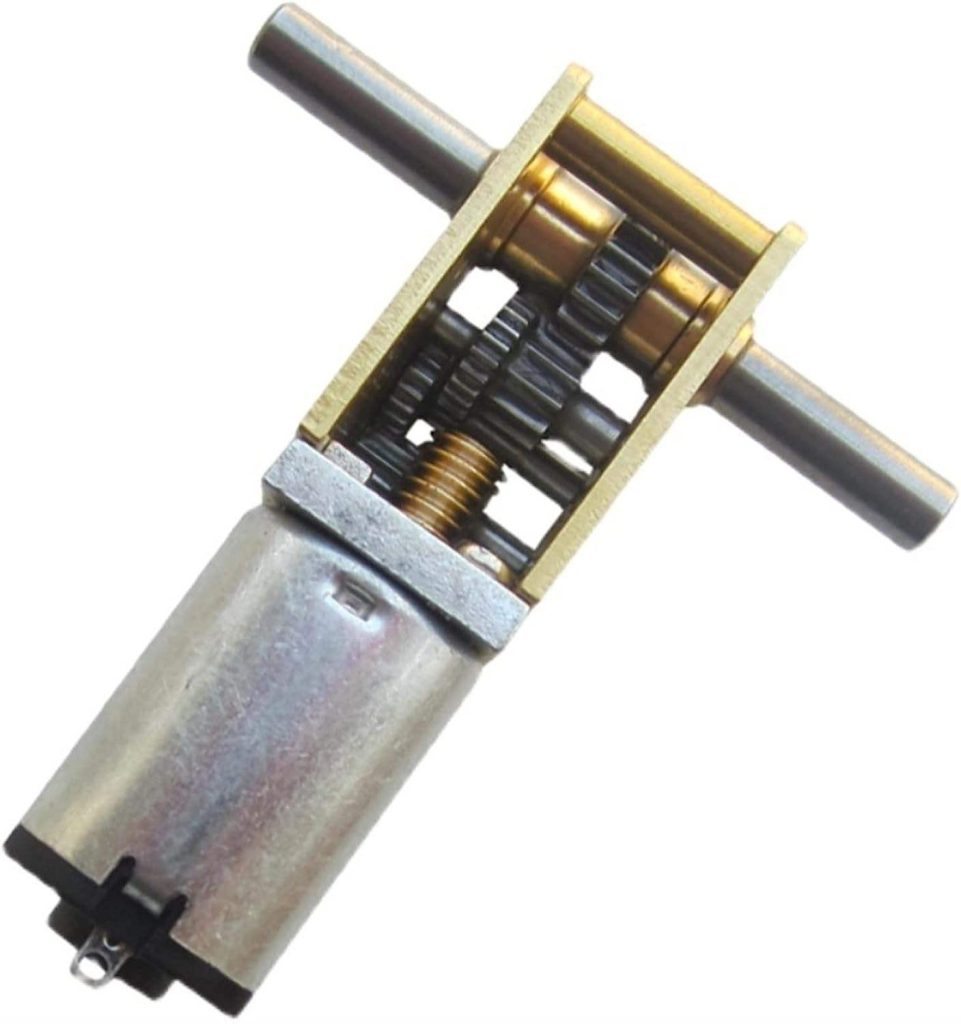

12Z-N20-2 12V Micro Worm Gear Motor

Model: 12Z-N20-2

Product Highlights

Self-Locking Worm Mechanism: Ensures automatic output shaft locking when powered off, preventing back-driving without additional braking systems.
Precision All-Metal Gear Train: Built with high-strength alloy worm gear components for enhanced load bearing, durability, and wear resistance.
Ultra-Compact Footprint: Miniature N20 frame size paired with a 90-degree right-angle gearbox allows integration into space-constrained devices.
Right-Angle Output Shaft: 90° orientation simplifies mechanical layout and saves axial mounting space in narrow enclosures.
Wide Voltage & Speed Range: Supports 3V, 6V, and 12V DC power inputs with customizable gear ratios and output RPM settings.
Low Noise & Smooth Transmission: Optimized tooth profile cuts smooth mesh engagements, significantly minimizing vibration and operational sound.
Customization Ready: Flexible D-shaft, threaded shaft, lead wire length, and connector options available for OEM/ODM integration.

Parameters	Specifications
Model Series	12Z-N20 Micro Worm Gear Motor
Motor Type	Brushed DC Motor with Right-Angle Worm Gearbox
Rated Voltage Options	3.0V DC / 6.0V DC / 12.0V DC (Customizable)
No-Load Speed	10 RPM – 600 RPM (Depending on Gear Ratio)
Rated Torque	0.1 kg.cm – 2.5 kg.cm
