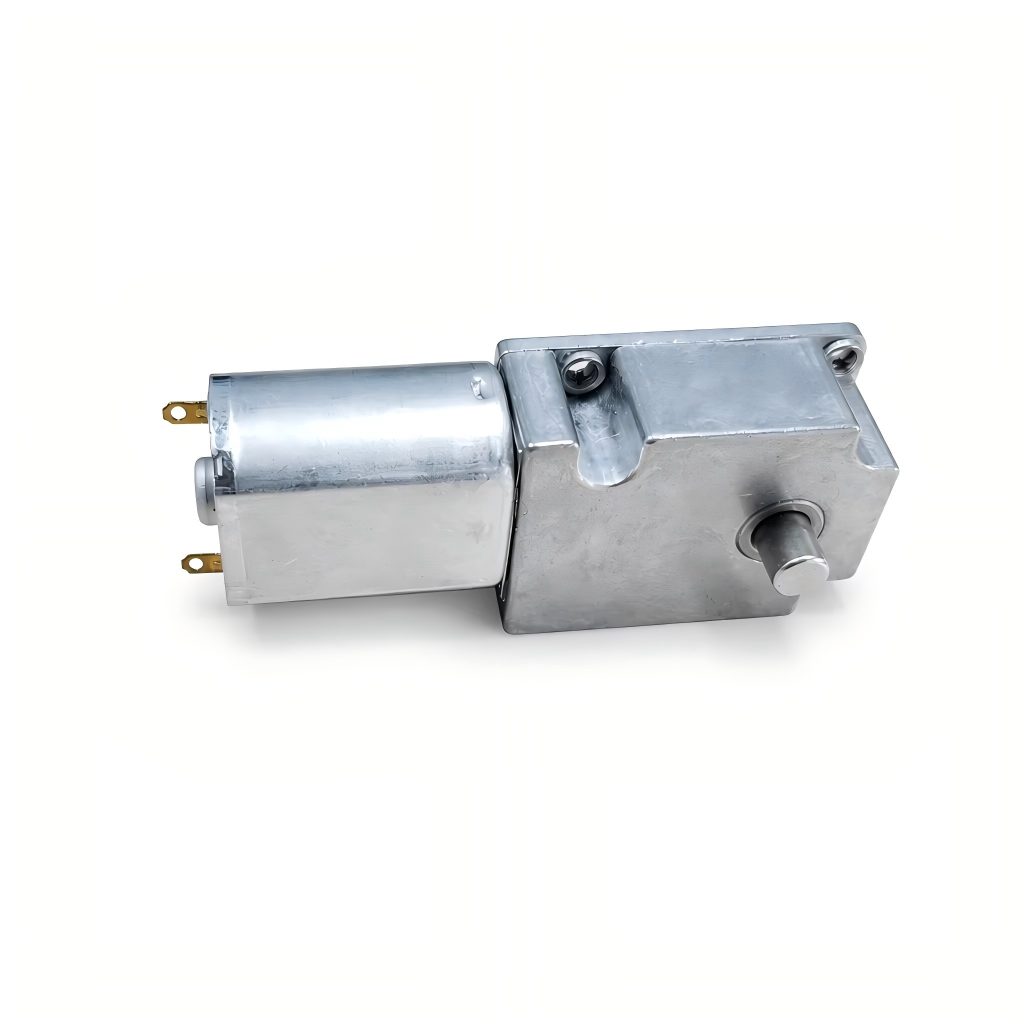

High-Torque 2534Z-130 Micro Worm Gear Motor
- · Model: 2534Z-130 Micro Worm Gear Motor
- · Motor Core Type: Brushed DC 130 Motor with Right-Angle Worm Gearbox
- · Rated Voltage Options: 6.0V DC / 12.0V DC / 24.0V DC (Customizable)
- · No-Load Speed: 5 RPM – 300 RPM (Depending on Gear Ratio)
- · Rated Torque: 0.5 kg.cm – 6.0 kg.cm
Product Overview
The 2534Z-130 Micro Worm Gear Motor is a robust, high-torque power unit engineered for compact equipment requiring reliable right-angle transmission and positional holding strength. Driven by a high-efficiency 130 DC motor and enclosed within a 25mm all-metal gear housing, the 2534Z-130 delivers exceptional torque density, low acoustic output, and high mechanical reliability in tight spaces.
All-Metal Gearbox
90° Right Angle Output
6V / 12V / 24V DC
OEM/ODM Customization
Core Design & Technical Highlights
|
01. Automatic Self-Locking Security
The worm mechanism prevents reverse driving of the output shaft when unpowered. This ensures secure load holding and positional stability in smart lock systems, valves, and vertical lifts without needing external electrical brakes. |
02. Heavy-Duty All-Metal Transmission
Built with high-grade copper alloy gears and a hardened steel worm drive shaft. It provides superior wear resistance, handles high peak stall torque up to 10 kg.cm, and maintains dimensional stability under continuous operational stresses. |
|
03. Space-Saving 90° Form Factor
The perpendicular right-angle shaft output drastically minimizes the required axial depth. This makes the 2534Z-130 ideal for mounting inside slim door frames, shallow device enclosures, or tightly integrated robotic assemblies. |
04. Smooth & Low-Noise Motion
Precision gear tooth profiles ensure continuous lubricant retention and low acoustic levels during rotation. It satisfies noise-sensitive environments like high-end residential interiors and medical facilities. |
Custom Engineering & OEM Options
Tailored Engineering Solutions for B2B Applications
- Shaft Modifications: Custom D-shafts, dual output shafts, knurling, threaded rods, or stainless steel materials.
- Electrical Winding Adjustments: Custom coil windings to deliver exact speed (RPM) and torque profile at 6V, 12V, or 24V DC.
- Cable Harness & Connectors: Customized lead lengths, heat-shrink insulation, and specified terminals (JST, Molex, Dupont).
- Feedback Systems: Optional integration with magnetic or optical encoders for closed-loop motion and position sensing.
Ready to Integrate the 2534Z-130 Worm Gear Motor into Your Project?
Our engineering team provides comprehensive technical support, 3D STEP drawings, sample testing evaluation, and custom OEM manufacturing tailored to your exact specifications.
Technical Specifications
| Model | 2534Z-130 Micro Worm Gear Motor |
| Motor Core Type | Brushed DC 130 Motor with Right-Angle Worm Gearbox |
| Rated Voltage Options | 6.0V DC / 12.0V DC / 24.0V DC (Customizable) |
| No-Load Speed | 5 RPM – 300 RPM (Depending on Gear Ratio) |
| Rated Torque | 0.5 kg.cm – 6.0 kg.cm |
