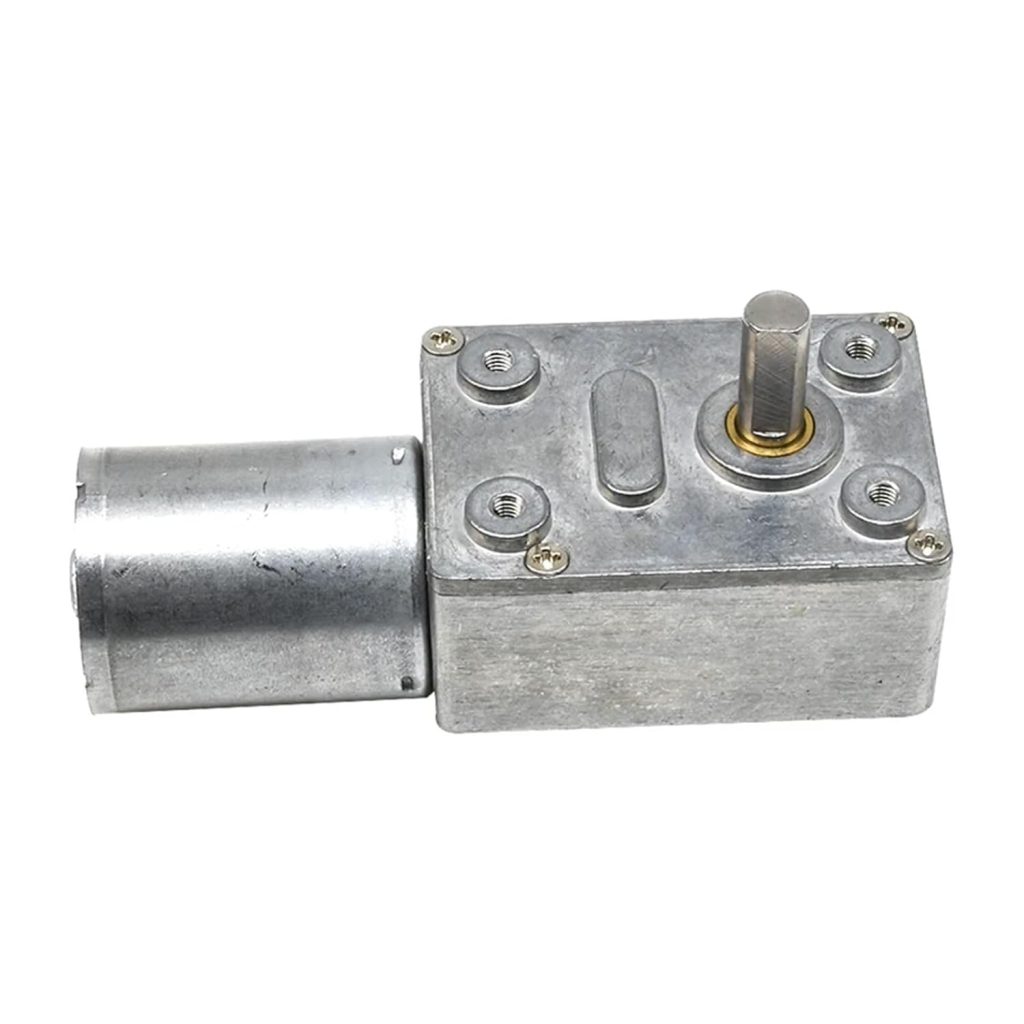

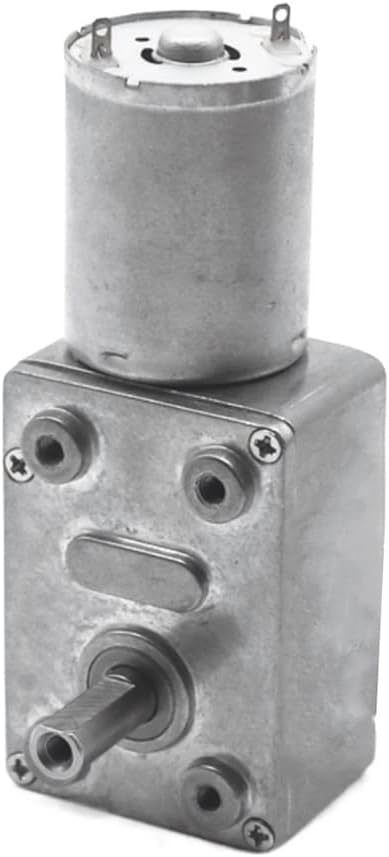

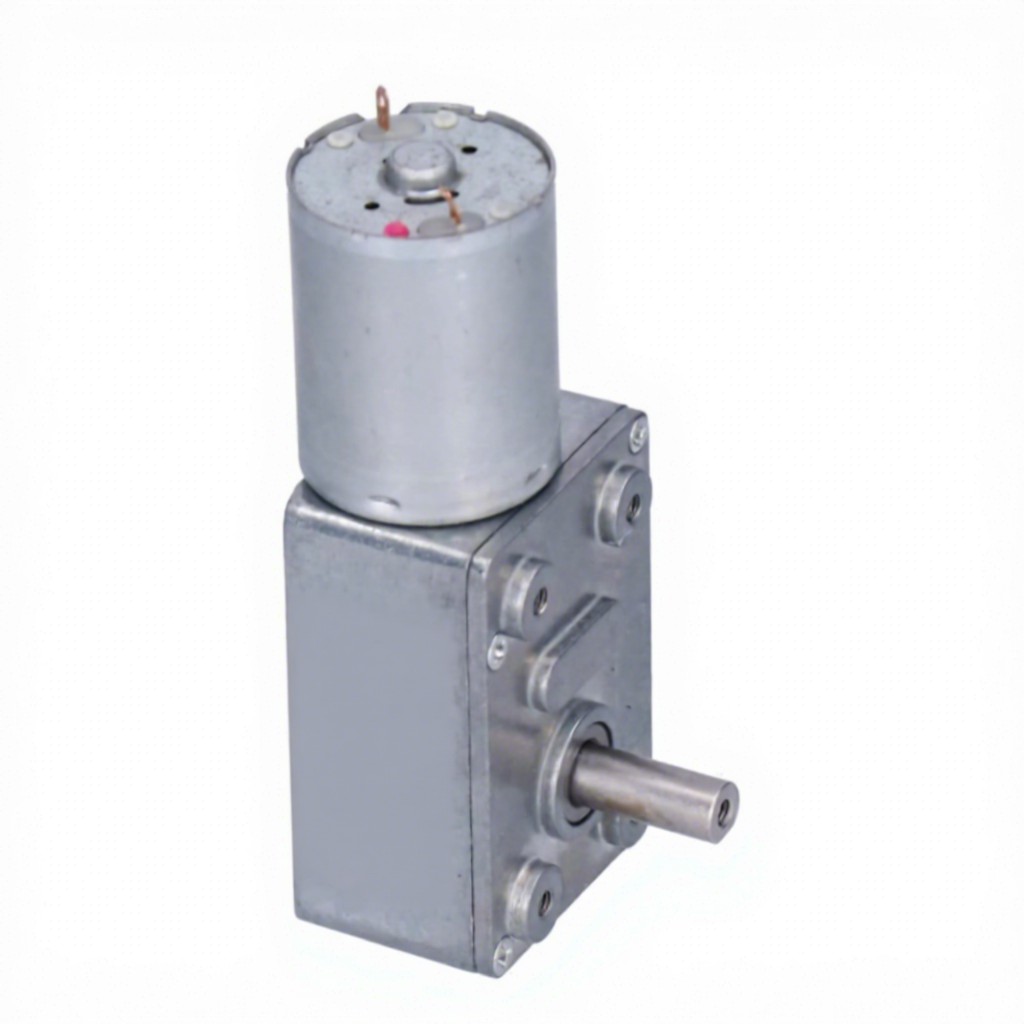

High-Torque 4632Z-370 Worm Gear Motor

Model: 4632Z-370

Product Highlights

Self-Locking Worm Gear System: Prevents back-driving when power is off, providing reliable holding torque without external braking systems.
Heavy-Duty All-Metal Gearbox: Engineered with high-strength alloy gears and a hardened steel worm shaft for high durability and continuous load handling.
Robust 4632 Frame Size: Paired with a powerful 370 core DC motor to generate high stall torque up to 25 kg.cm.
90-Degree Right-Angle Transmission: Compact right-angle output shaft design saves critical axial mounting space in shallow enclosures.
Reversible Polarity Control: Easily switch rotation directions (CW/CCW) by reversing the DC input power polarity.
Smooth & Quiet Meshing: Precision-machined gear teeth reduce vibration and operational noise during high-torque output.
Flexible Customization: Supports customized shaft lengths, D-cut shafts, dual output shafts, custom wiring harnesses, and optional encoders.

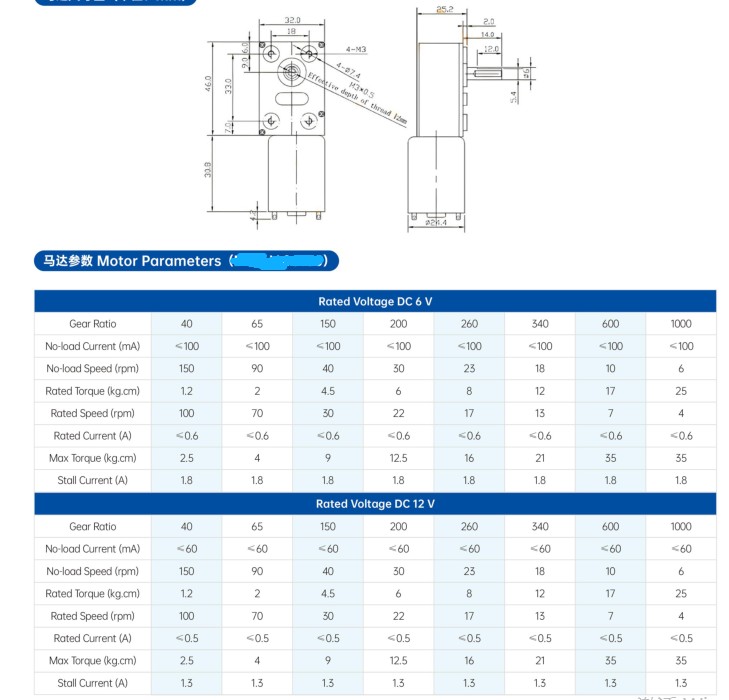

Parameters	Specifications
Model	4632Z-370 Micro Worm Gear Motor
Motor Core Type	Brushed DC 370 Motor with Right-Angle Worm Gearbox
Rated Voltage Options	6.0V DC / 12.0V DC / 24.0V DC (Customizable)
No-Load Speed	2 RPM – 375 RPM (Depending on Gear Ratio)
Rated Torque	1.0 kg.cm – 15.0 kg.cm

Modern precision workshop, advanced CNC automated machining centers, and 100% full-inspection assembly lines.

Verified compliance with global standards, supporting smooth customs clearance and regulatory approvals across North America and Europe.
