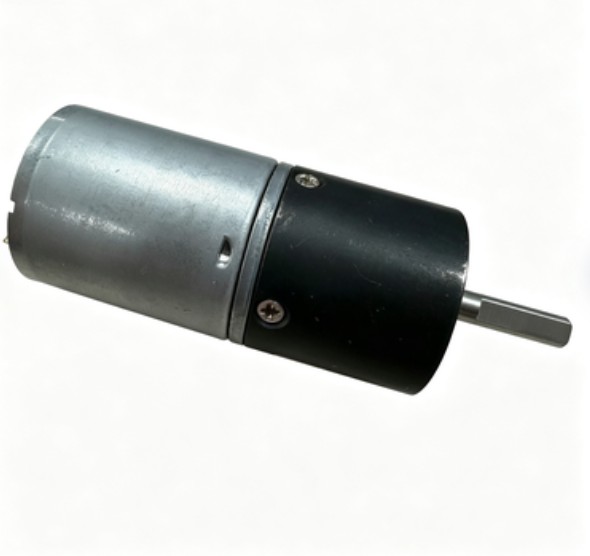

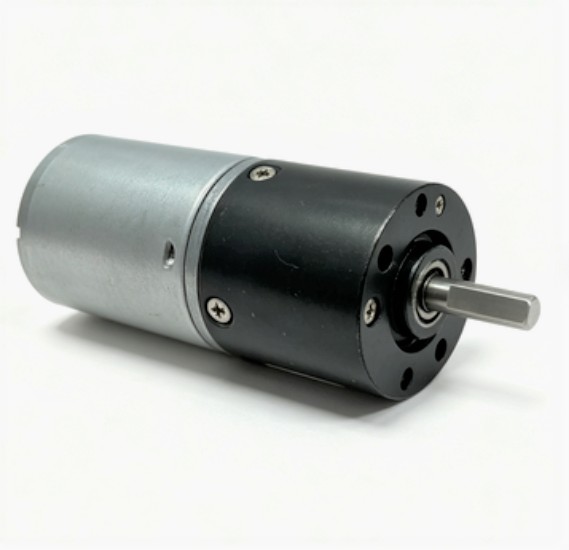

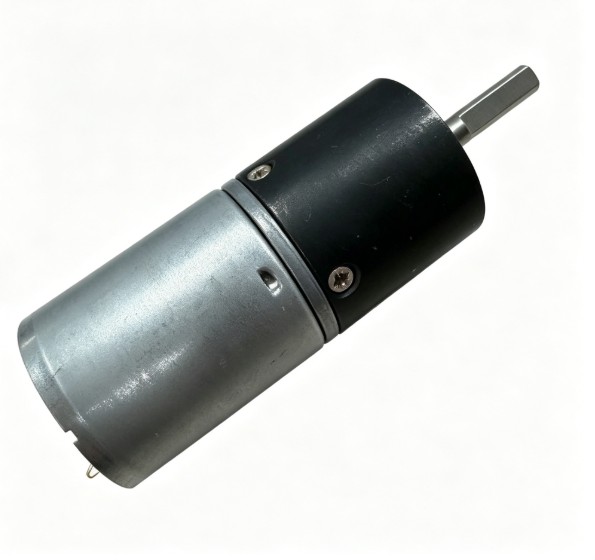

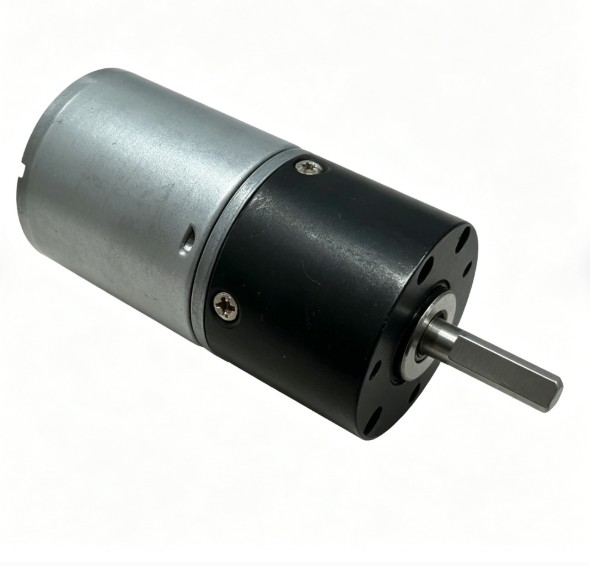

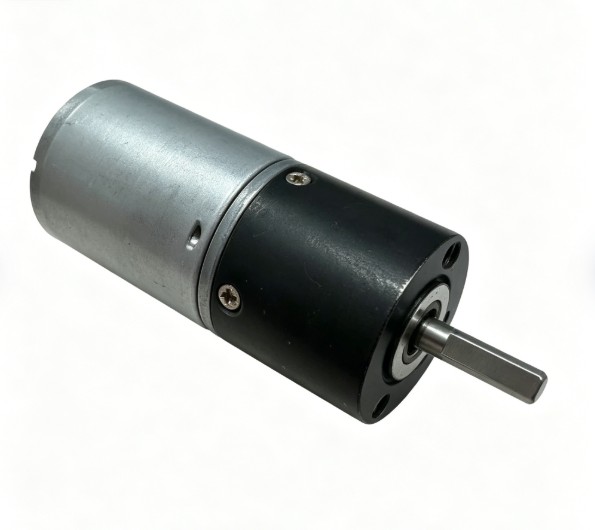

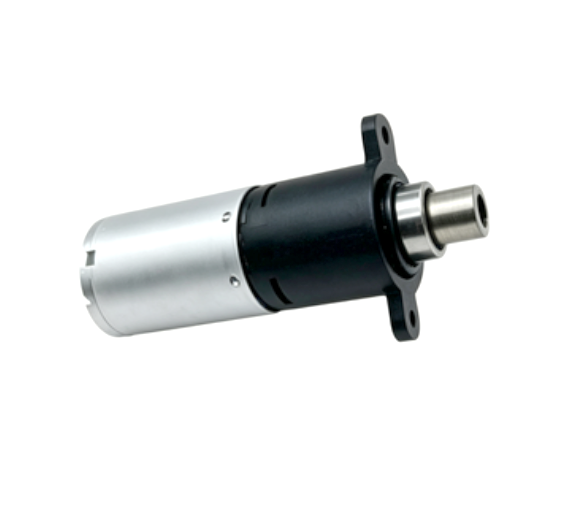

24P-370 24mm Planetary DC Gear Motor

Model: 24P-370

No reviews yet (Write a review)

· Model: 24P-370
· Gearbox Outer Diameter: 24 mm
· Motor Type: 370 DC Micro Planetary Gear Motor
· Operating Voltage Range: 3.0V – 24.0V DC (Nominal: 6.0V / 12.0V / 24.0V)
· No-Load Speed: 10 RPM – 1500 RPM (Customizable based on gear ratio)

Product Overview

The 24P-370 24mm Planetary DC Gear Motor integrates a robust 370 DC micro motor core with a high-precision 24mm planetary gearbox. Engineered to provide exceptional power density, heavy continuous load handling, and low angular backlash, the 24P-370 is designed for high-demanding applications requiring smooth speed reduction and maximum torque in a compact cylindrical envelope.

Key Features & Engineering Highlights

24mm Precision Planetary Structure

Multi-gear planet load distribution allows high torque transmission, low backlash, and high radial stability under dynamic mechanical stress.

High-Performance 370 Motor Core

Equipped with a proven 370 motor winding that delivers strong dynamic power, high stall torque capability, and reliable operation across wide voltage ranges.

All-Metal Powder Metallurgy Gears

Precision sintered steel planet gears and sun gears provide superior wear resistance, impact tolerance, and long-term service life.

Smooth & Low-Noise Transmission

Optimized gear teeth engagement and balanced armature structure minimize mechanical noise and rotational vibration during operation.

Target Applications

Robotic Arm Joints & Mobile Service Robots
Precision Medical Devices & Peristaltic Pumps
Commercial Smart Door Locks & Security Systems
Automated Valves & Smart Fluid Metering
Motorized Window Shades & Pergola Automation
ATM Bill Dispensing & Cash Handling Modules
Industrial Micro-Actuators & Conveyor Drives
Power Tools & Portable Industrial Equipment

Custom OEM/ODM Engineering Options

We offer tailored mechanical and electrical modifications to fit your specific system requirements. Contact our engineering team for customized configurations including:

Custom Voltage Ratings (3V – 24V)
Tailored Gear Ratios (1-Stage to 4-Stage)
Shaft Geometry (D-Cut, Round, Keyway, Threaded)
Integrated Hall Sensor / Magnetic Encoders
Custom Wiring Harnesses & Connectors

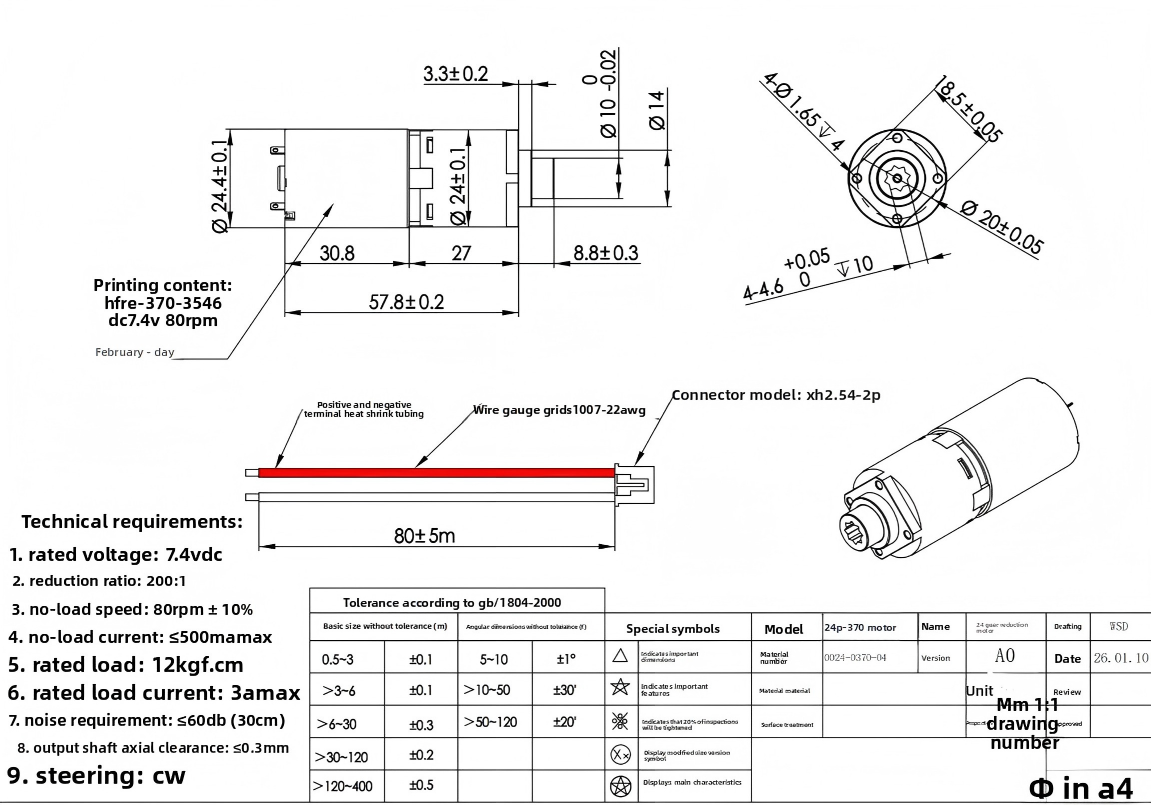

Technical Specifications

Model	24P-370
Gearbox Outer Diameter	24 mm
Motor Type	370 DC Micro Planetary Gear Motor
Operating Voltage Range	3.0V – 24.0V DC (Nominal: 6.0V / 12.0V / 24.0V)
No-Load Speed	10 RPM – 1500 RPM (Customizable based on gear ratio)

Key Features

High-precision 24mm planetary structure providing exceptional torque density and low angular backlash.

Multi-gear load distribution design ensuring high radial stability and superior impact resistance.

High-performance 370 DC motor core delivering consistent power output and strong stall torque capabilities.

All-metal sintered powder metallurgy gear train built for heavy continuous duty and long service life.

Precision-meshed gear geometry engineered to minimize operational mechanical noise and vibration.

Reversible rotation capability with responsive velocity control across dynamic load cycles.

Comprehensive OEM customization options including gear reduction ratios, shaft dimensions, and magnetic encoder feedback.

Applications

Robotic Arm Joints, Articulated Servos, and Mobile Service Robotics

Precision Medical Pumps, Syringe Drives, and Automated Laboratory Equipment

Commercial Smart Locks, Electronic Access Controllers, and Security Deadbolts

Miniature Rotary Actuators, Automated Valve Controllers, and Liquid Metering Equipment

Motorized Window Shades, Automated Pergola Louvers, and Smart Home Controls

ATM Cash Handling Modules, Currency Counters, and POS Terminal Mechanisms

Industrial Micro-Actuators, Mini-Conveyors, and Automated Assembly Systems

Portable Power Tools, Industrial Measuring Devices, and Testing Equipment
