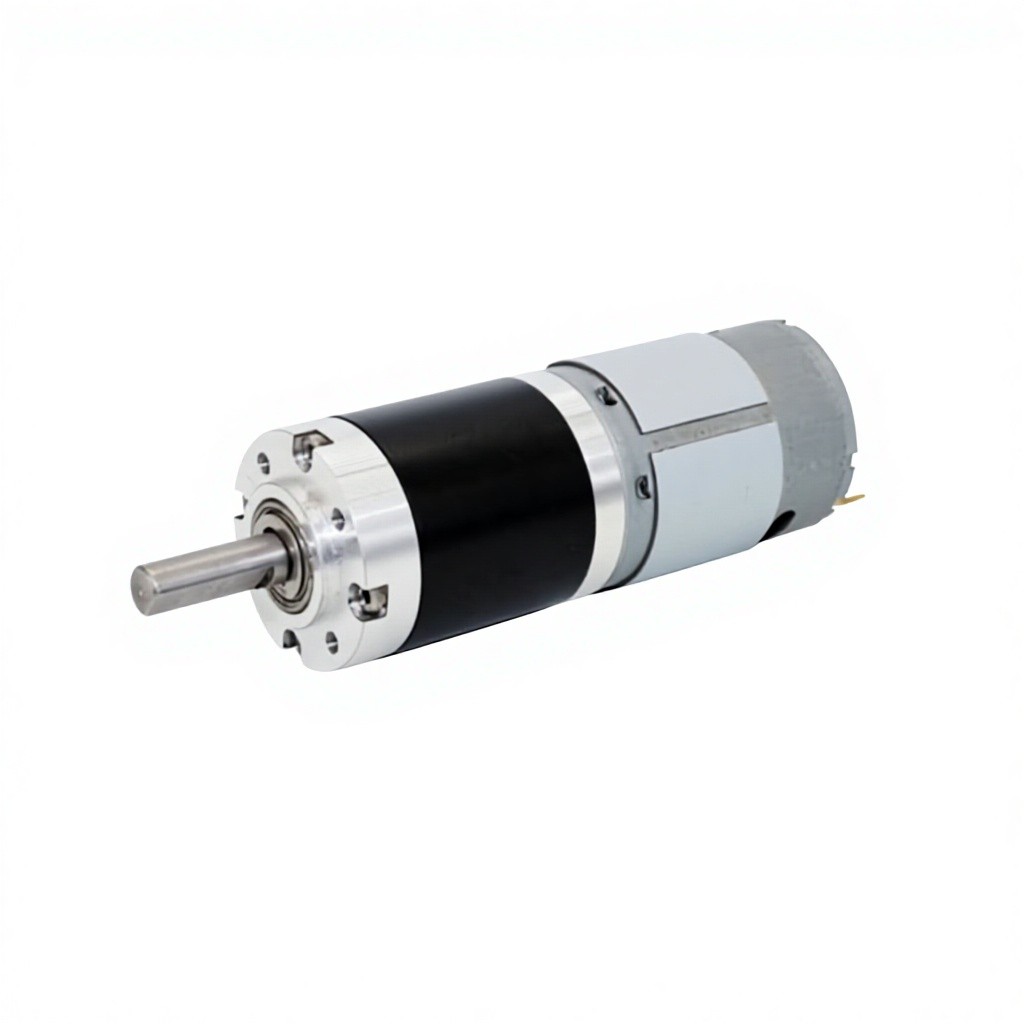

32P-31Z 32mm Planetary DC Gear Motor

Model: 32P-31Z

No reviews yet (Write a review)

· Model: 32P-31Z
· Gearbox Outer Diameter: 32 mm
· Motor Type: 31Z Permanent Magnet DC Planetary Gear Motor
· Operating Voltage Range: 6.0V – 24.0V DC (Nominal: 12.0V / 24.0V)
· No-Load Speed: 10 RPM – 1000 RPM (Customizable based on gear ratio)

Product Overview

The 32P-31Z 32mm Planetary DC Gear Motor integrates a high-efficiency 31Z permanent magnet DC motor core with a heavy-duty 32mm precision planetary gearbox. Engineered to provide exceptional continuous torque output, robust shock load distribution, and minimal angular backlash, the 32P-31Z is an optimal motion control solution for demanding industrial automation, medical drives, robotics, and smart equipment.

Key Features & Engineering Highlights

32mm Planetary Gear Architecture

Multi-gear load distribution ensures maximum power transmission, low backlash, and superior radial load stability under dynamic mechanical stress.

31Z Permanent Magnet Core

High-coercivity permanent magnet design delivers high starting torque, low power consumption, and exceptional magnetic stability under continuous operation.

All-Metal Powder Metallurgy Gears

Precision sintered steel planet gears provide high impact absorption, minimal gear wear, and extended service life during high-torque applications.

Smooth & Quiet Transmission

Precision-ground gear meshing and dynamic rotor balance ensure quiet performance, low vibration, and steady rotation across varying voltage inputs.

Target Applications

Robotic Mobile Platforms, AGV Drive Wheels & Articulated Arms
Medical Patient Lifts, Wheelchairs & Peristaltic Pumps
Heavy Commercial Smart Lock Actuators & Security Gates
Automated Heavy Valves & Fluid Management Systems
Motorized Pergola Louvers & Heavy Window Automation
Commercial Vending Dispensing & Coin Mechanisms
ATM Money Handling Modules & Bill Counters
Industrial Conveyors & Mini Feeding Automation

Custom OEM/ODM Engineering Options

We offer complete customization services to tailor the motor performance to your exact electrical and mechanical specs. Contact us for custom configurations including:

Custom Voltage Ratings (6V – 24V)
Tailored Gear Reduction Ratios
Shaft Geometry (D-Cut, Round, Keyway, Threaded)
Magnetic / Optical Encoder Integration
Custom Lead Wire Harnesses & Connectors

Technical Specifications

Model	32P-31Z
Gearbox Outer Diameter	32 mm
Motor Type	31Z Permanent Magnet DC Planetary Gear Motor
Operating Voltage Range	6.0V – 24.0V DC (Nominal: 12.0V / 24.0V)
No-Load Speed	10 RPM – 1000 RPM (Customizable based on gear ratio)

Key Features

High-precision 32mm planetary gearhead architecture offering exceptional torque density and low angular backlash.

High-coercivity 31Z permanent magnet motor core delivering strong starting torque and high magnetic stability.

Multi-gear load distribution design ensuring superior radial load capacity and shock absorption under heavy duties.

Wear-resistant all-metal powder metallurgy gear train built for heavy continuous duty cycles and long service life.

Precision-ground gear profiles designed to minimize operational vibration and acoustic noise.

Fully reversible CW/CCW rotation capability with smooth velocity modulation across dynamic workload conditions.

Comprehensive OEM customization options including gear reduction ratios, shaft geometry, wiring, and magnetic encoders.

Applications

Robotic Mobile Platforms, AGV Drive Wheels, and Articulated Arm Servos

Medical Patient Lifts, Motorized Wheelchairs, and Automated Laboratory Equipment

Heavy Commercial Smart Lock Actuators, Electronic Access Controls, and Security Deadbolts

Heavy-Duty Automated Valve Controllers, Fluid Flow Systems, and Industrial Actuators

Motorized Pergola Louvers, Heavy Commercial Window Blinds, and Sunshade Actuation

Commercial Vending Machines, Coin Dispensing Mechanisms, and Product Feeders

ATM Banknote Handlers, High-Speed Bill Counters, and POS Terminal Drives

Industrial Micro-Actuators, Conveyor Sorting Modules, and Automated Assembly Lines
