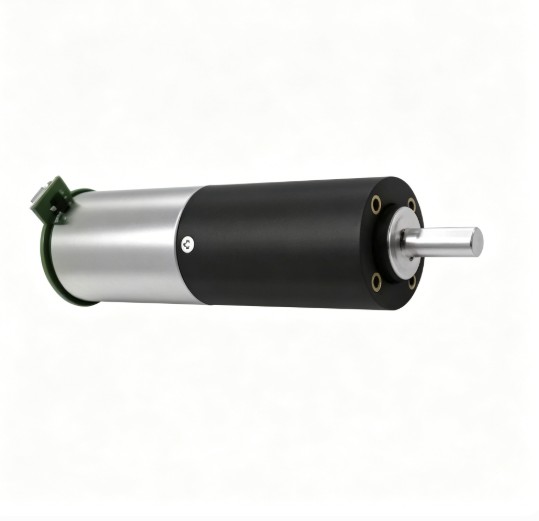

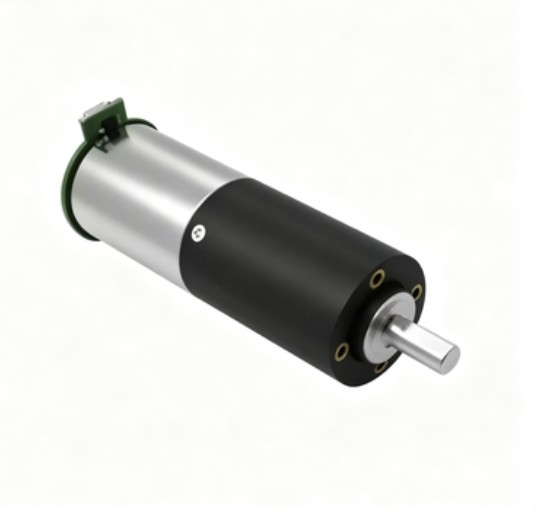

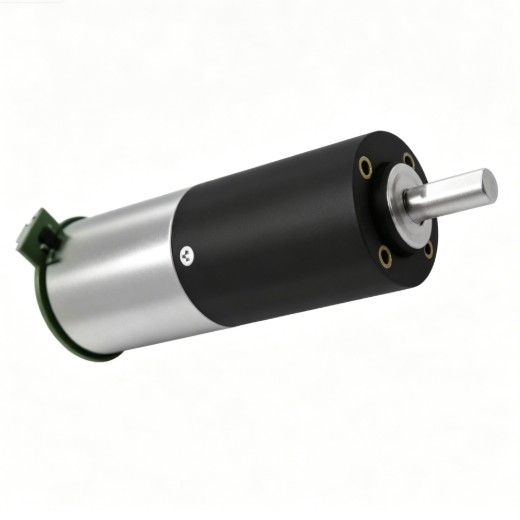

22P-2230 22mm Planetary DC Gear Motor

Model: 22P-2230

Diameter: 22mm
Voltage: 6-24V
Gear Ratio: 3:1-80:1

Product Highlights

Compact 22mm planetary gearbox
High torque and efficient transmission
Low backlash and smooth operation
Low noise and durable construction
Multiple gear ratios available

Applications

> Precision Robotics & Cobots
> Medical Devices & Surgical Systems
> Aerospace & Flight Actuators
> Automotive Electric Drive Systems
> Industrial Automation & AGV/AMR
> Semiconductor Handling Equipment
> CNC Machine Tool Feeding Units
> Precision Optical Positioning
> High-Speed Packaging Machinery

Technical Specifications

Parameters	Specifications
Model	22P-2230
Outer Diameter	22 mm
Motor Type	BLDC/Brushed/Coreless Motor
Rated Voltage	6V – 24.0V DC
No-Load Speed	10 RPM – 500 RPM (Customizable)
Gear Ratio	3:1-80:1

Why Choose Us

Factory Manufacturing Capabilities

Modern precision workshop, advanced CNC automated machining centers, and 100% full-inspection assembly lines.

International Certifications

Verified compliance with global standards, supporting smooth customs clearance and regulatory approvals across North America and Europe.
