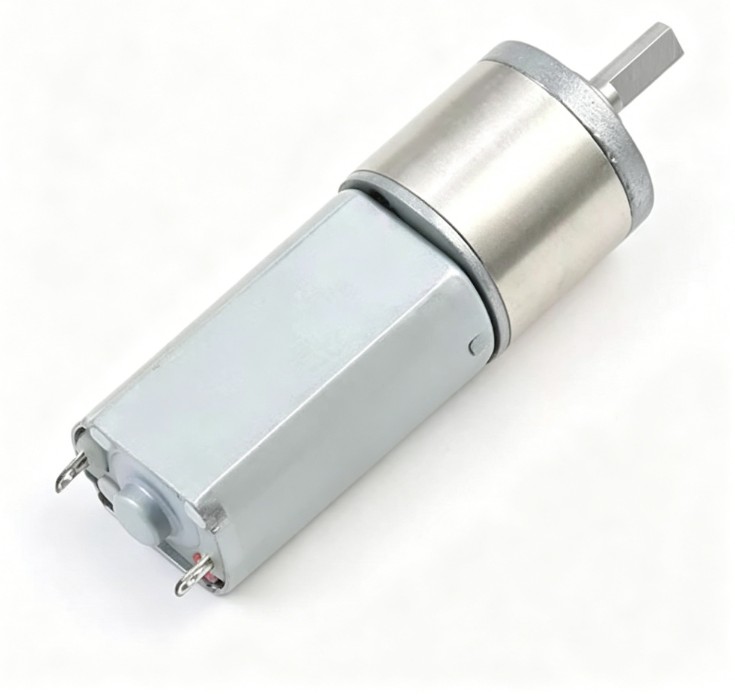

16A-050-35K 16mm Micro DC Spur Gear Motor
Model: 16A-050-35K
- Delivers high torque density in a compact diameter design
- Precision gear structure ensures smooth & ultra-low noise operation
- Wide output speed range to meet versatile industrial needs
- Fully customizable gear ratios, shaft dimensions, and wire leads
- Heavy-duty industrial grade quality with long operational lifespan
Product Highlights
-
Ultra-compact 16mm outer diameter designed for severe spatial constraints in modern micro-automation.
-
High-performance 050 DC motor core providing strong power density and consistent torque output.
-
Precision-machined all-metal gear train delivering superior impact strength and wear resistance.
-
Optimized gear meshing geometry to minimize operational vibration and mechanical acoustic noise.
-
High power transmission efficiency with reduced electrical current consumption under continuous load.
-
Fully reversible rotation capability with stable velocity control across varying loads.
-
Flexible OEM/ODM customization for gear ratios, custom shaft shapes, operating voltages, and wiring harnesses.

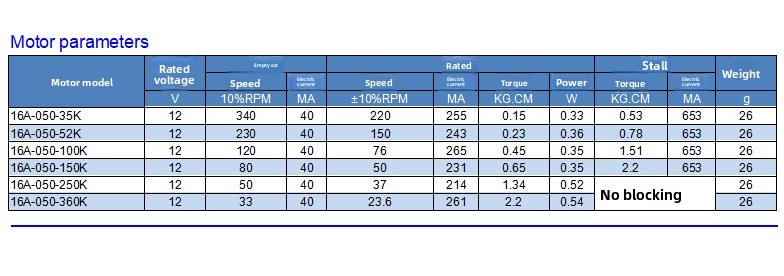

Technical Specifications
| Parameters | Specifications |
|---|---|
| Model | 16A-050-35K |
| Gearbox Diameter | 16 mm |
| Motor Type | 050 DC Micro Spur Gear Motor |
| Operating Voltage Range | 3.0V – 12.0V DC (Nominal: 6.0V / 12.0V) |
