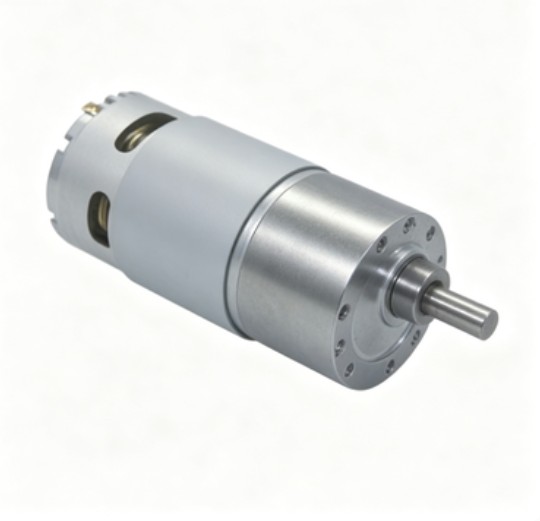

37B-550 37mm High-Torque DC Spur Gear Motor

New

37B-550 37mm High-Torque DC Spur Gear Motor

Model: 37B-550

No reviews yet (Write a review)

· Model: 37B-550
· Gearbox Outer Diameter: 37 mm
· Motor Type: 550 DC Micro Spur Gear Motor
· Operating Voltage Range: 6.0V – 24.0V DC (Nominal: 12.0V / 24.0V)
· No-Load Speed: 10 RPM – 1200 RPM (Customizable based on gear ratio)

Product Overview

The 37B-550 37mm High-Torque DC Spur Gear Motor couples a high-power 550 DC motor core with a heavy-duty 37mm spur gearbox, engineered specifically for high-load industrial drive systems. Delivering continuous high power density, exceptional thermal resilience, and immense stall torque, the 37B-550 handles rigorous continuous and high-frequency start-stop cycles in demanding automation and machinery environments.

Key Features & Engineering Highlights

Heavy-Duty 550 Motor Core

Driven by a robust 550 motor frame that provides remarkable dynamic power output, superior heat dispersion, and high continuous torque capability.

Reinforced All-Metal Gearbox

Precision steel gear trains housed in a 37mm metal gearbox ensure maximum power transmission, high impact strength, and extended operational lifespan under heavy loads.

High Stall & Rated Torque

Engineered reduction gear ratios produce strong torque outputs, preventing mechanical stalling and ensuring smooth driving performance on high-friction systems.

Optimized Smooth Operation

Precision-ground gear teeth and a dynamically balanced armature minimize mechanical chatter, vibration, and noise throughout the operating voltage range.

Target Applications

Heavy Mobile Robotics & AGV Drive Wheels
Commercial Vending Machines & Coin Mechanism
Industrial Conveyors & Sorting Equipment
Automated Heavy Valves & Actuators
Motorized Pergola & Heavy Blind Automation
Commercial Smart Lock & Gate Openers
Financial ATM & Cash Handling Machines
Medical Patient Beds & Lift Actuators

Custom OEM/ODM Engineering Options

We offer complete custom engineering to adapt motor performance to your precise hardware requirements. Contact us for custom options including:

Custom Voltage Ratings (6V – 24V)
Tailored Gear Ratios & Output RPM
Custom Shaft Geometry (D-Cut, Keyway, Round)
Magnetic / Optical Encoder Integration
Custom Wiring Harnesses & Connectors

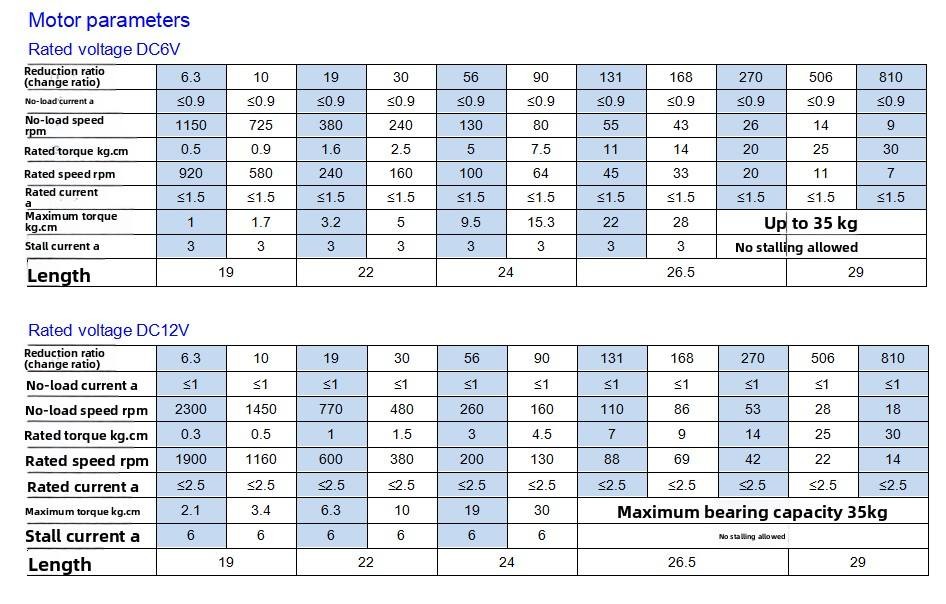

Technical Specifications

Model	37B-550
Gearbox Outer Diameter	37 mm
Motor Type	550 DC Micro Spur Gear Motor
Operating Voltage Range	6.0V – 24.0V DC (Nominal: 12.0V / 24.0V)
No-Load Speed	10 RPM – 1200 RPM (Customizable based on gear ratio)

Key Features

High-power 550 motor core delivering immense dynamic torque and continuous drive performance.

Reinforced 37mm metal spur gearbox built to withstand extreme shock loads and prevent tooth wear.

Advanced thermal dissipation design supporting extended duty cycles under heavy workload demands.

Precision-ground gear meshing system reducing operational friction, mechanical noise, and acoustic chatter.

Versatile operating voltage range for seamless compatibility with 12V and 24V power systems.

Fully reversible rotation capability with smooth speed regulation and reliable start-stop response.

Flexible OEM options including customized shaft dimensions, gear ratios, wiring connectors, and encoder integration.

Applications

Heavy-Duty Mobile Robots, AGV Drive Wheels, and Industrial Autonomous Platforms

Commercial Vending Machines, Coin Dispensing Systems, and Heavy Product Drop Mechanisms

Industrial Mini-Conveyors, Sorting Machinery, and Automated Material Transfer Units

High-Torque Automated Valves, Fluid Controls, and Heavy Industrial Actuators

Commercial Smart Doors, Automatic Gate Openers, and Heavy Access Barrier Systems

Motorized Pergola Louvers, Heavy Commercial Window Blinds, and Sunshade Actuation

Financial Automation Systems, High-Speed Currency Counters, and ATM Cash Handlers

Medical Lift Actuators, Patient Adjustment Beds, and Laboratory Automation Equipment
