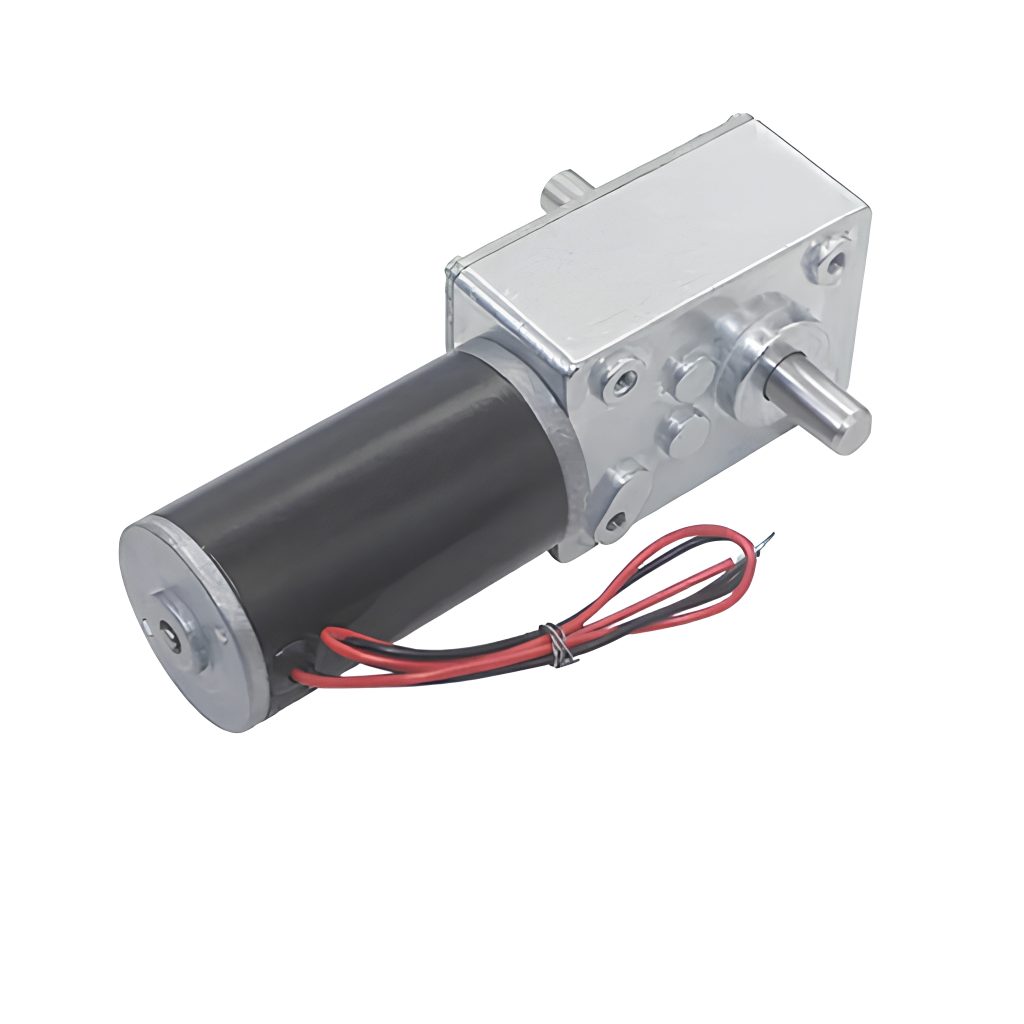

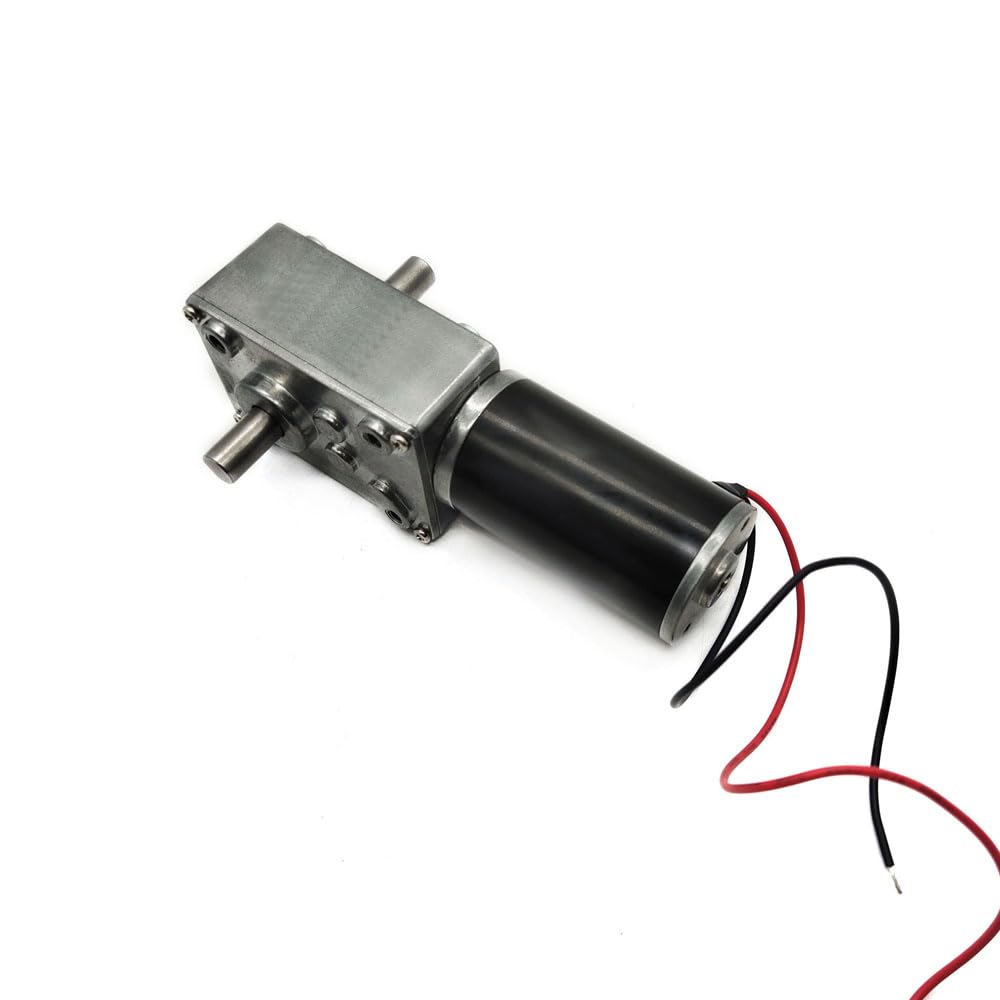

High-Torque 5840-31ZY Worm Gear Motor

Model: 5840-31ZY

Product Highlights

High-Torque Self-Locking Drive: Inherent worm gearing ensures output shaft holding capability when powered off, eliminating external braking systems.
Heavy-Duty All-Metal Gearbox: Constructed with high-grade alloy gears and a hardened steel worm shaft to handle high stall loads up to 70 kg.cm.
5840 Right-Angle Housing with 31ZY Core: Combines a powerful 31ZY permanent magnet DC motor with a compact 5840 gearbox for maximum torque density.

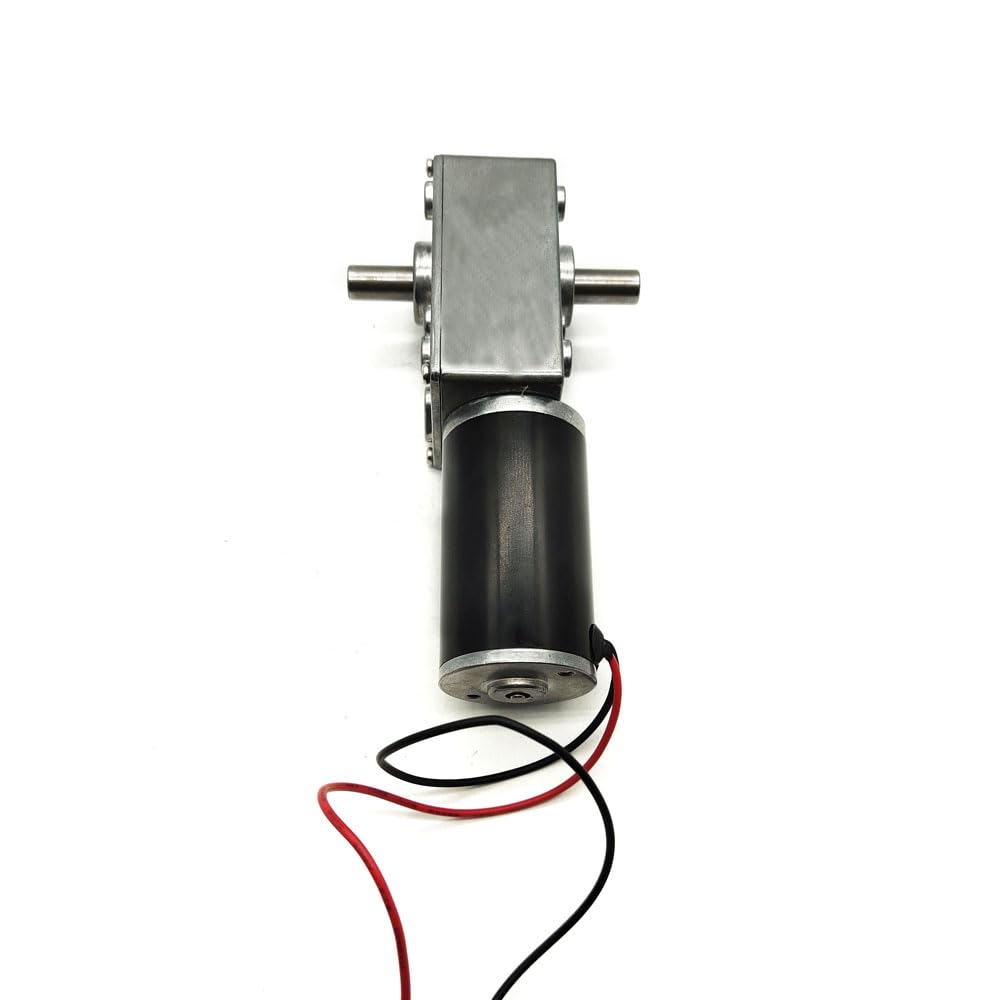

90-Degree Output Configuration: Saves crucial axial space in compact, shallow, or space-constrained mounting environments.
Bi-Directional Polarity Control: Effortlessly switch rotation direction (CW/CCW) by swapping the DC input power polarity.
Smooth Meshing & Low Noise: Precision hobbed tooth profiles minimize vibration, acoustic noise, and mechanical wear under load.
Customization Ready: Flexible options for extended shafts, D-cuts, dual shafts, custom wire harnesses, and magnetic encoders.

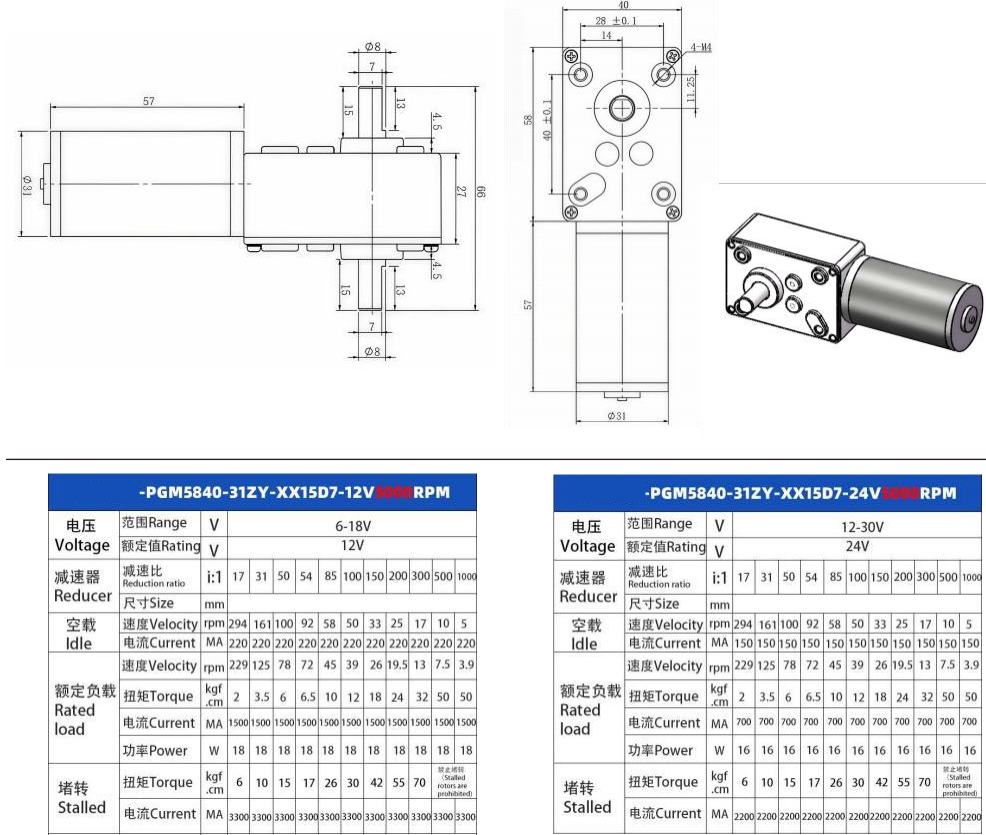

Parameters	Specifications
Model	5840-31ZY High-Torque Worm Gear Motor
Motor Core Type	Brushed Permanent Magnet 31ZY DC Motor with 5840 Gearbox
Rated Voltage Options	12.0V DC / 24.0V DC (Customizable)
No-Load Speed	5 RPM – 470 RPM (Depending on Gear Ratio)
Rated Torque	2.5 kg.cm – 35.0 kg.cm
