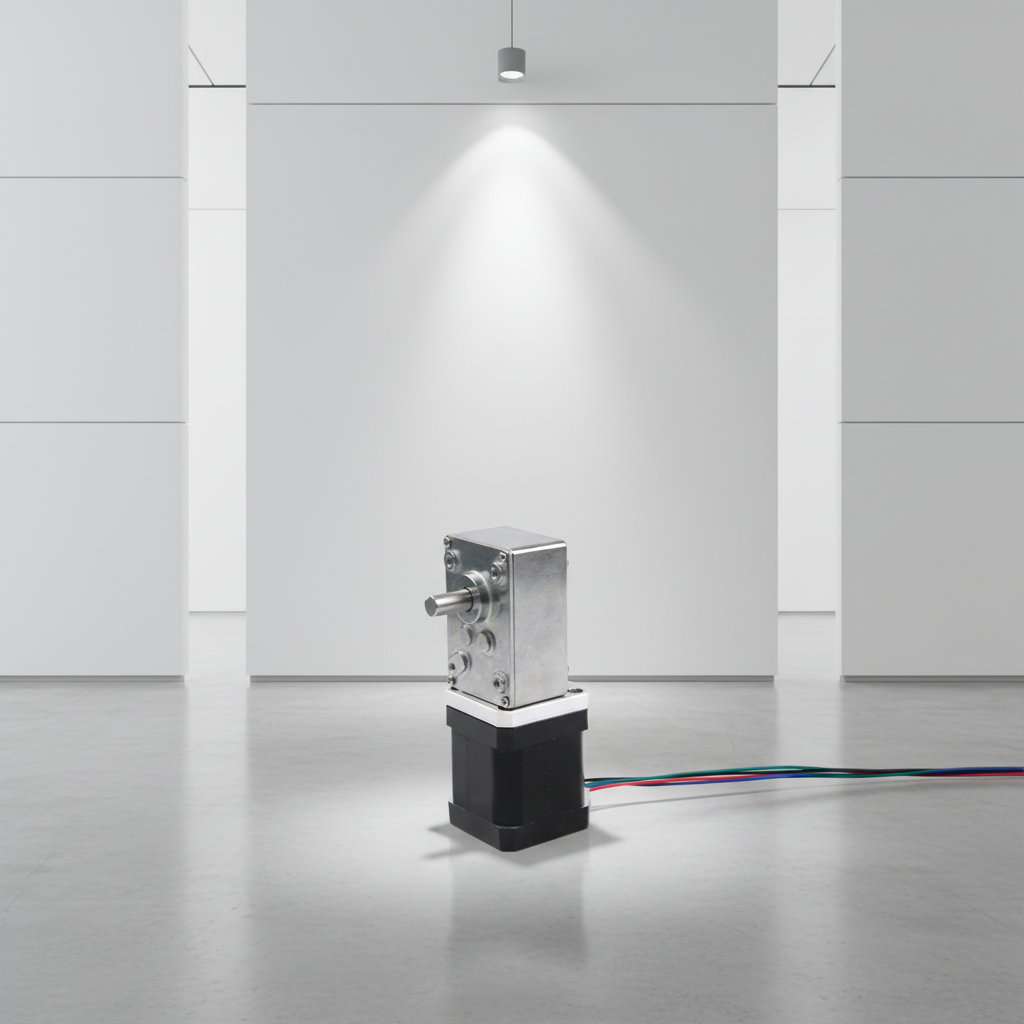

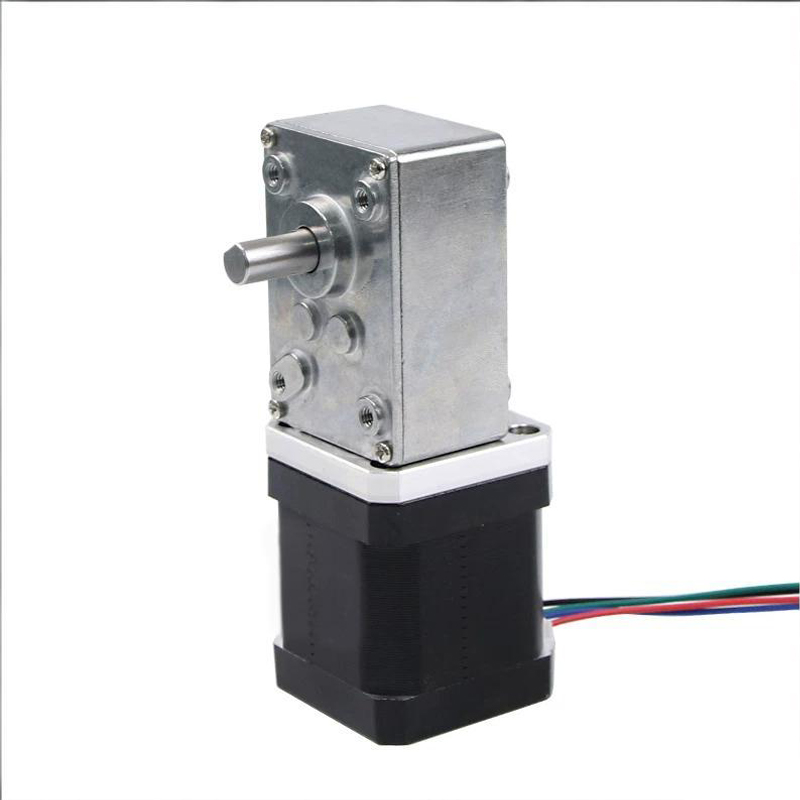

High-Torque 5840Z-42 Worm Gear Motor

Model: 5840Z-42

Product Highlights

Self-Locking Worm Gear Mechanism: Inherent self-locking design automatically secures the output shaft when powered off, preventing back-driving without extra braking systems.
Heavy-Duty All-Metal Construction: Engineered with high-strength alloy gears and a hardened steel worm shaft housed in a durable casing for continuous heavy-load operations.
Robust 5840 Gearbox with 42 Core Motor: Combines a high-torque 42-frame DC motor with a 5840 right-angle reduction gearhead to achieve massive stall torque up to 70 kg.cm.
90-Degree Right-Angle Transmission: Saves crucial axial depth and mounting space in shallow enclosures or compact machinery frames.
Reversible Rotation Control: Effortlessly switch rotation direction (CW/CCW) by reversing the DC input power polarity.
Smooth Meshing & Low Noise: Precision hobbed tooth geometry ensures continuous, smooth gear engagement with minimal vibration and operating noise.

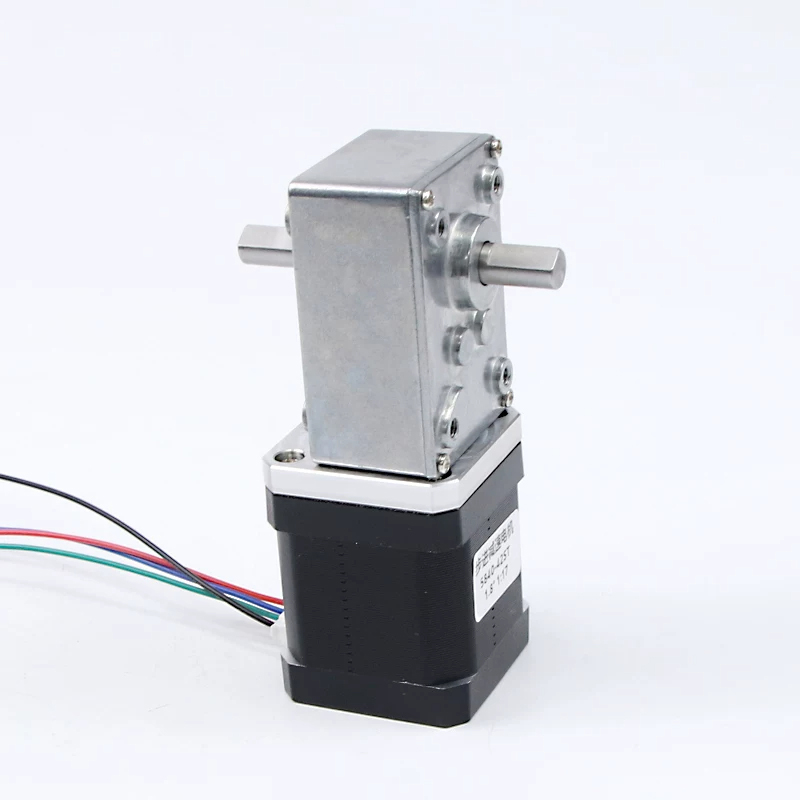

Customization Ready: Supports custom shaft lengths, D-cut shafts, dual output shafts, custom wiring harnesses, and magnetic encoder integrations.

Parameters	Specifications
Model	5840Z-42 High-Torque Worm Gear Motor
Motor Core Type	Brushed DC 42 Motor with 5840 Right-Angle Worm Gearbox
Rated Voltage Options	12.0V DC / 24.0V DC (Customizable)
No-Load Speed	5 RPM – 470 RPM (Depending on Gear Ratio)
Rated Torque	2.5 kg.cm – 35.0 kg.cm

Modern precision workshop, advanced CNC automated machining centers, and 100% full-inspection assembly lines.

Verified compliance with global standards, supporting smooth customs clearance and regulatory approvals across North America and Europe.
