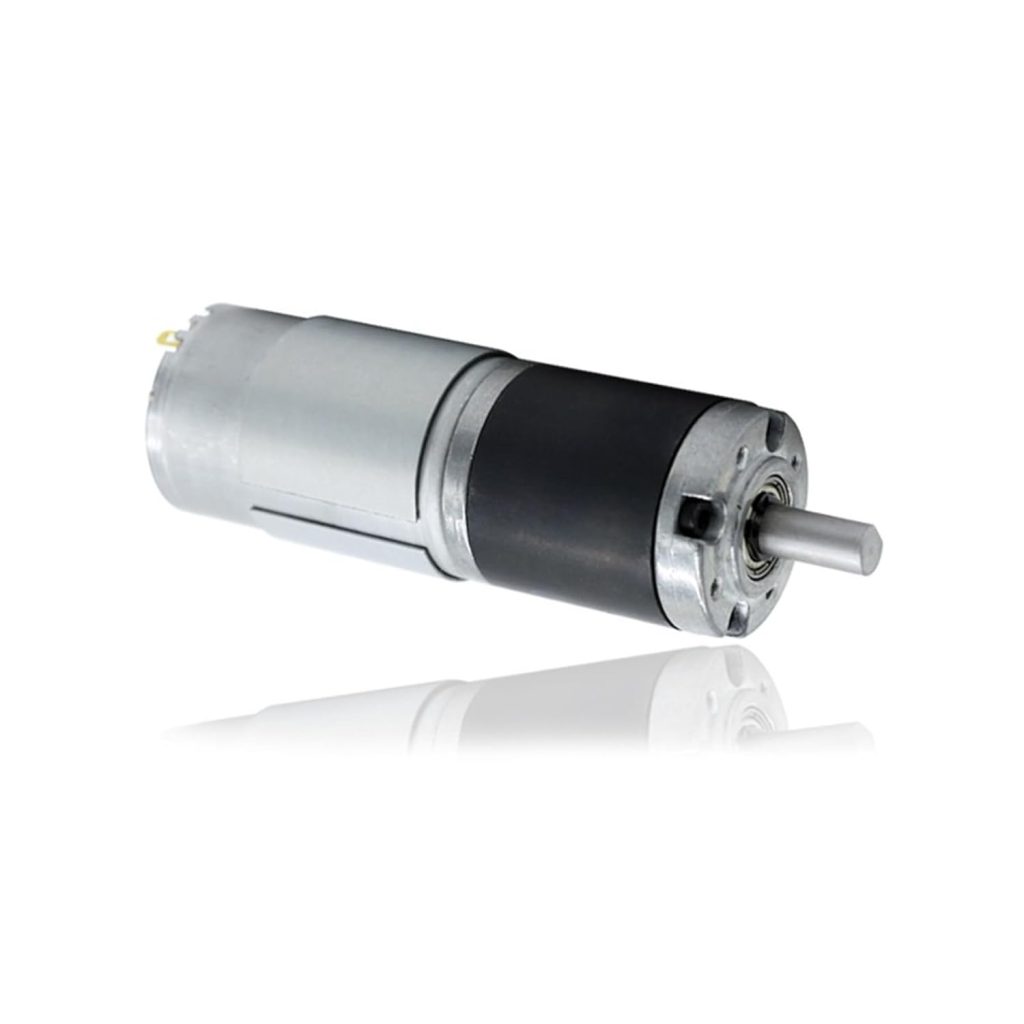

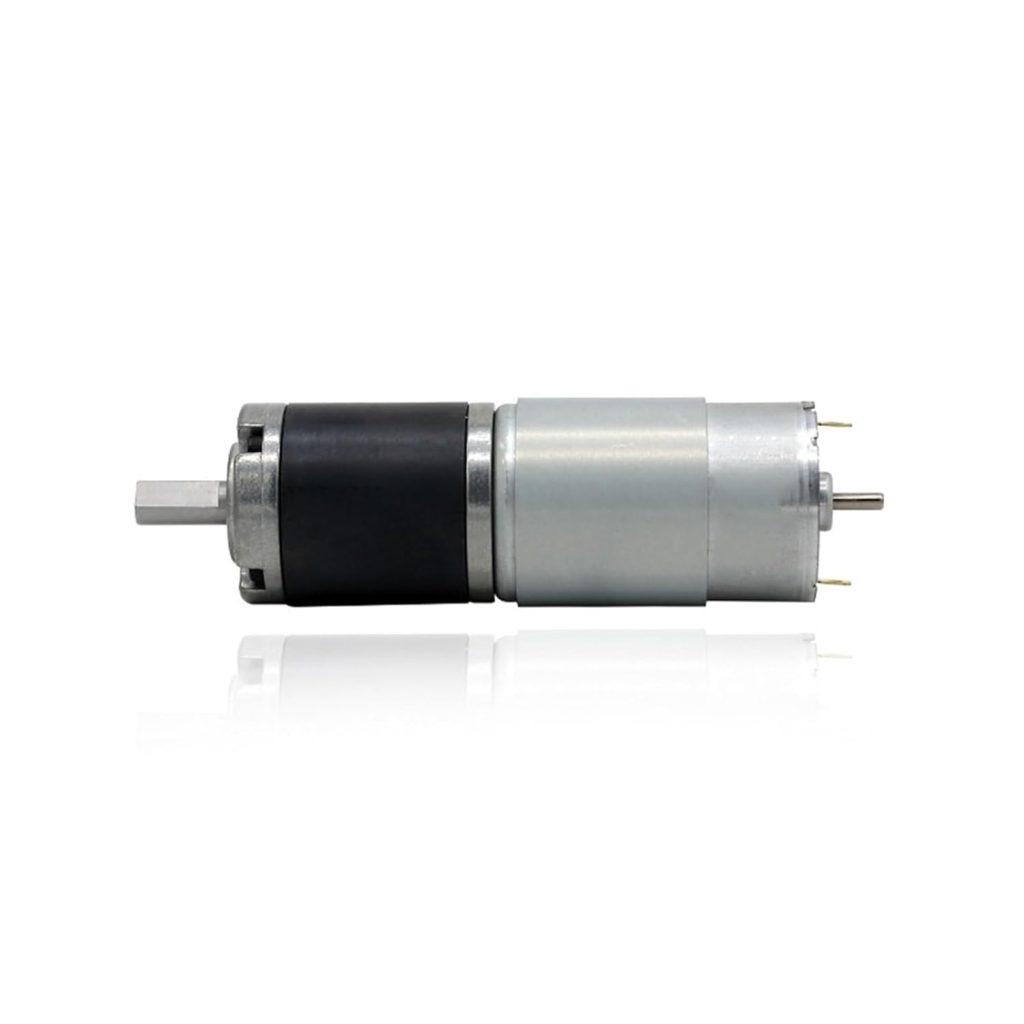

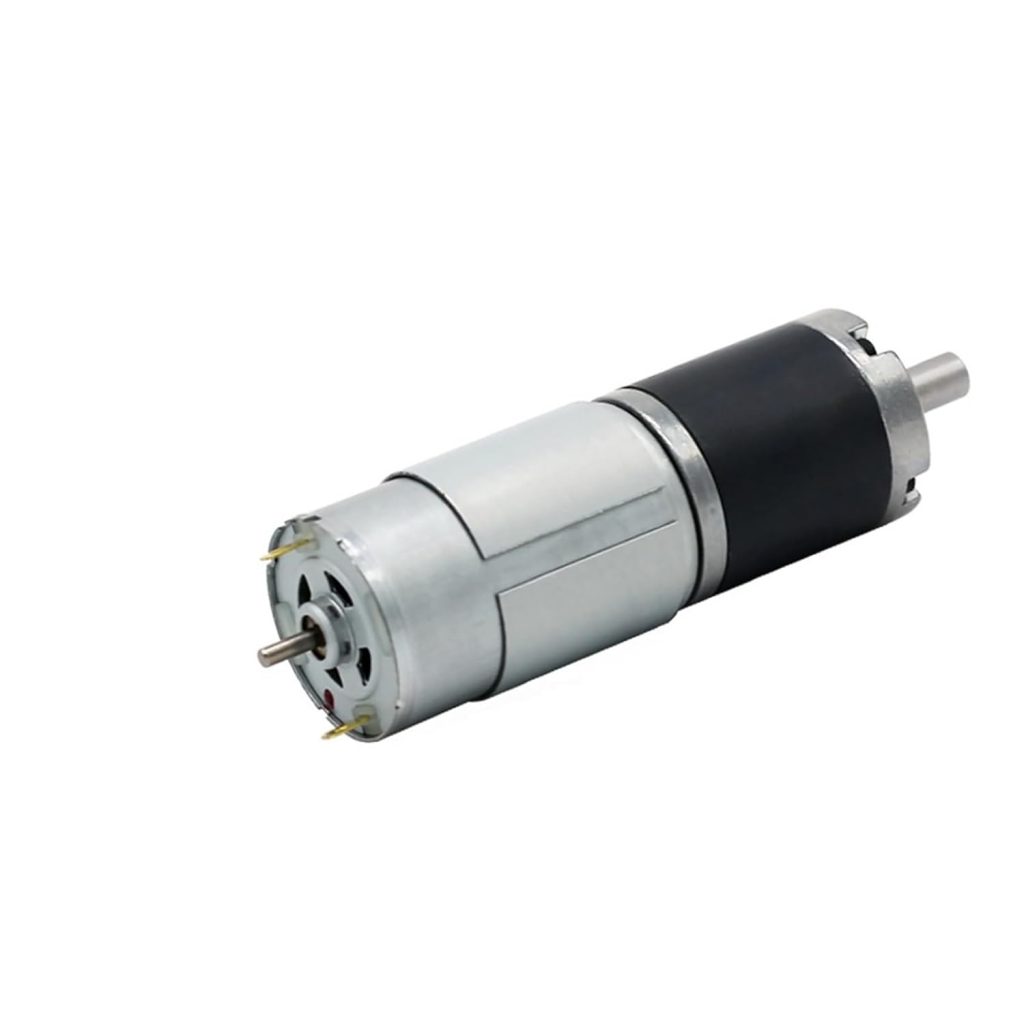

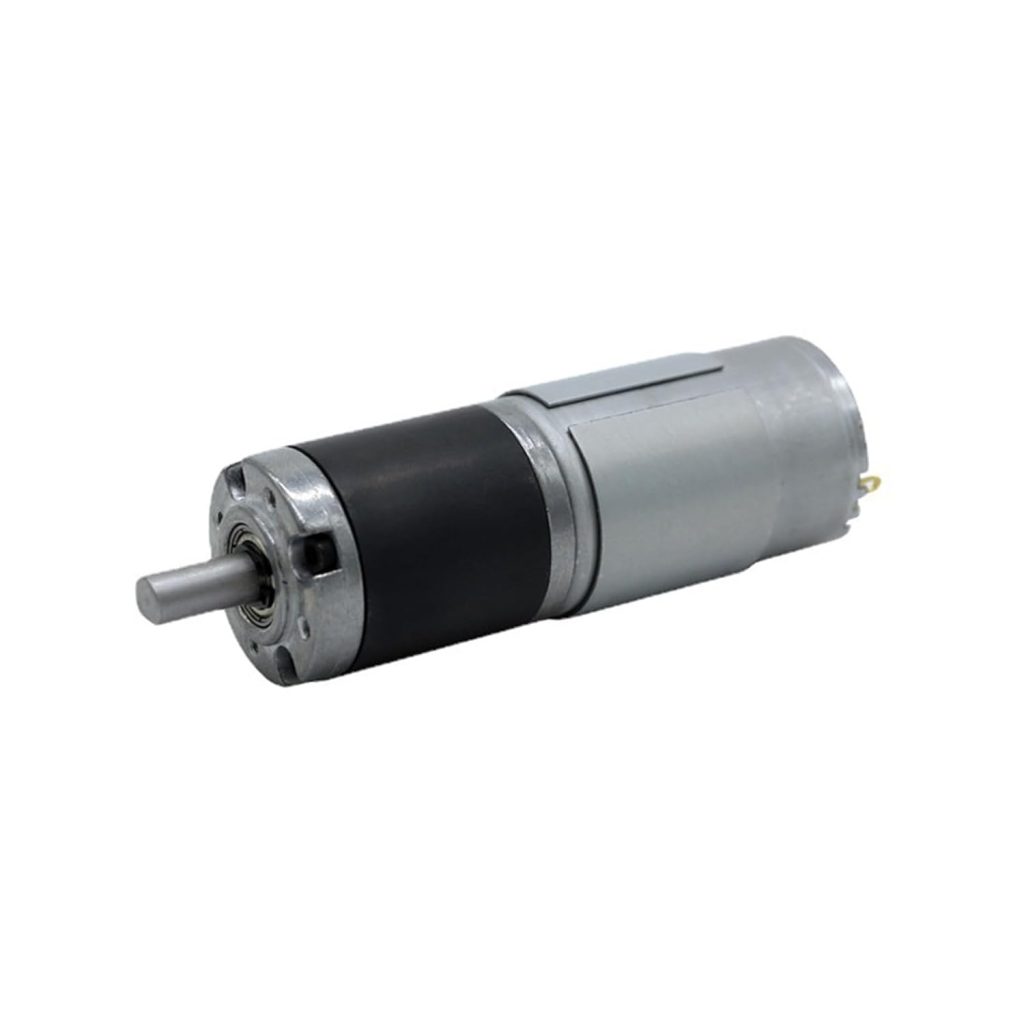

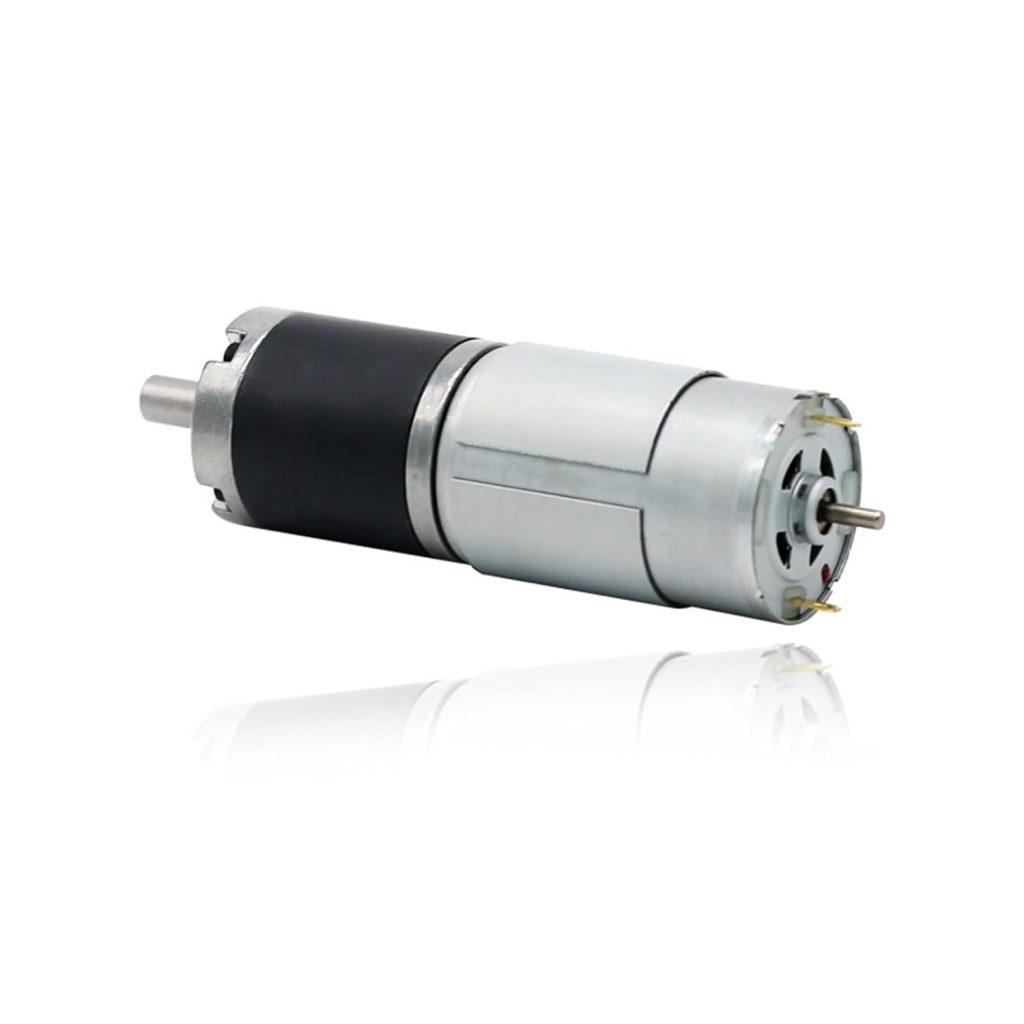

36P-555 36mm High-Torque Planetary DC Gear Motor

New

36P-555 36mm High-Torque Planetary DC Gear Motor

Model: 36P-555

No reviews yet (Write a review)

· Model: 36P-555
· Gearbox Outer Diameter: 36 mm
· Motor Type: 555 DC High-Torque Planetary Gear Motor
· Operating Voltage Range: 6.0V – 24.0V DC (Nominal: 12.0V / 24.0V)
· No-Load Speed: 10 RPM – 1200 RPM (Customizable based on gear ratio)

Product Overview

The 36P-555 36mm High-Torque Planetary DC Gear Motor couples a high-power 555 DC motor core with a heavy-duty 36mm precision planetary gearbox. Engineered specifically for high-load industrial drive systems, the 36P-555 delivers immense stall torque capability, exceptional heat dissipation, and low angular backlash under continuous heavy operation.

Key Features & Engineering Highlights

Heavy-Duty 555 Motor Core

Powered by a robust 555 DC motor frame that provides high starting torque, outstanding continuous current capacity, and superior thermal tolerance.

36mm Planetary Gearhead

Multi-tooth load distribution architecture handles heavy radial and axial shock loads evenly, providing high mechanical efficiency and reduced backlash.

All-Metal Sintered Steel Gears

High-strength powder metallurgy gears prevent tooth shear under extreme stall conditions, ensuring extended service life in harsh environments.

Smooth Power Transmission

Precision-ground gear meshing and dynamic armature balancing minimize rotational vibration and acoustic operational noise levels.

Target Applications

Heavy Mobile Service Robots & AGV Drive Systems
Industrial Conveyors & Automatic Material Feeders
High-Torque Electric Valves & Actuator Drives
Commercial Smart Door Locks & Heavy Gate Openers
Motorized Pergola Louvers & Sunshade Actuation
Vending Machine Dispensing & Coin Mechanisms
Financial ATM Cash Handlers & Currency Counters
Medical Patient Lifts & Motorized Wheelchairs

Custom OEM/ODM Engineering Options

We offer complete custom engineering to match your system’s exact mechanical and electrical requirements. Contact us for custom configurations including:

Custom Voltage Ratings (6V – 24V)
Tailored Gear Reduction Ratios
Custom Output Shaft (D-Cut, Keyway, Round, Threaded)
Integrated Hall Sensor / Magnetic Encoders
Custom Lead Wire Harnesses & Connectors

Technical Specifications

Model	36P-555
Gearbox Outer Diameter	36 mm
Motor Type	555 DC High-Torque Planetary Gear Motor
Operating Voltage Range	6.0V – 24.0V DC (Nominal: 12.0V / 24.0V)
No-Load Speed	10 RPM – 1200 RPM (Customizable based on gear ratio)

Key Features

High-power 555 DC motor core delivering high dynamic starting torque and heavy load handling.

High-precision 36mm planetary gearhead structure providing maximum power density and low angular backlash.

Multi-gear load distribution architecture designed to absorb extreme radial loads and impact stress.

All-metal sintered powder metallurgy gear train built for continuous duty cycles and long operational lifespan.

Precision-meshed gear teeth geometry optimized to minimize rotational vibration and acoustic noise.

Fully reversible CW/CCW rotation capability with rapid start-stop responsiveness under dynamic workloads.

Comprehensive OEM customization options including gear ratios, shaft geometry, wiring, and magnetic encoders.

Applications

Heavy-Duty Mobile Service Robots, AGV Drive Wheels, and Autonomous Platforms

Industrial Mini-Conveyors, Sorting Systems, and Automated Material Transfer Drives

High-Torque Automated Valve Actuators, Heavy Fluid Controllers, and Industrial Drives

Commercial Smart Lock Actuators, Heavy Security Gates, and Automatic Barriers

Motorized Pergola Louvers, Heavy Commercial Window Blinds, and Sunshade Controllers

Commercial Vending Machine Dispensing Units, Coin Mechanisms, and Product Feeders

ATM Banknote Handling Modules, High-Speed Currency Counters, and Financial Automation

Medical Patient Lifts, Motorized Wheelchair Drives, and Adjustable Care Equipment
