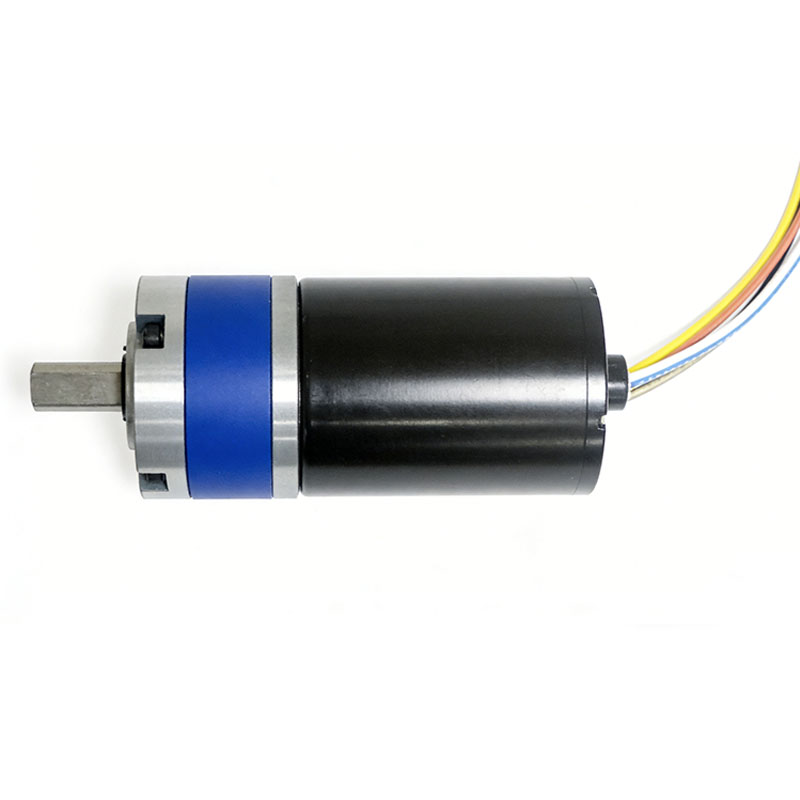

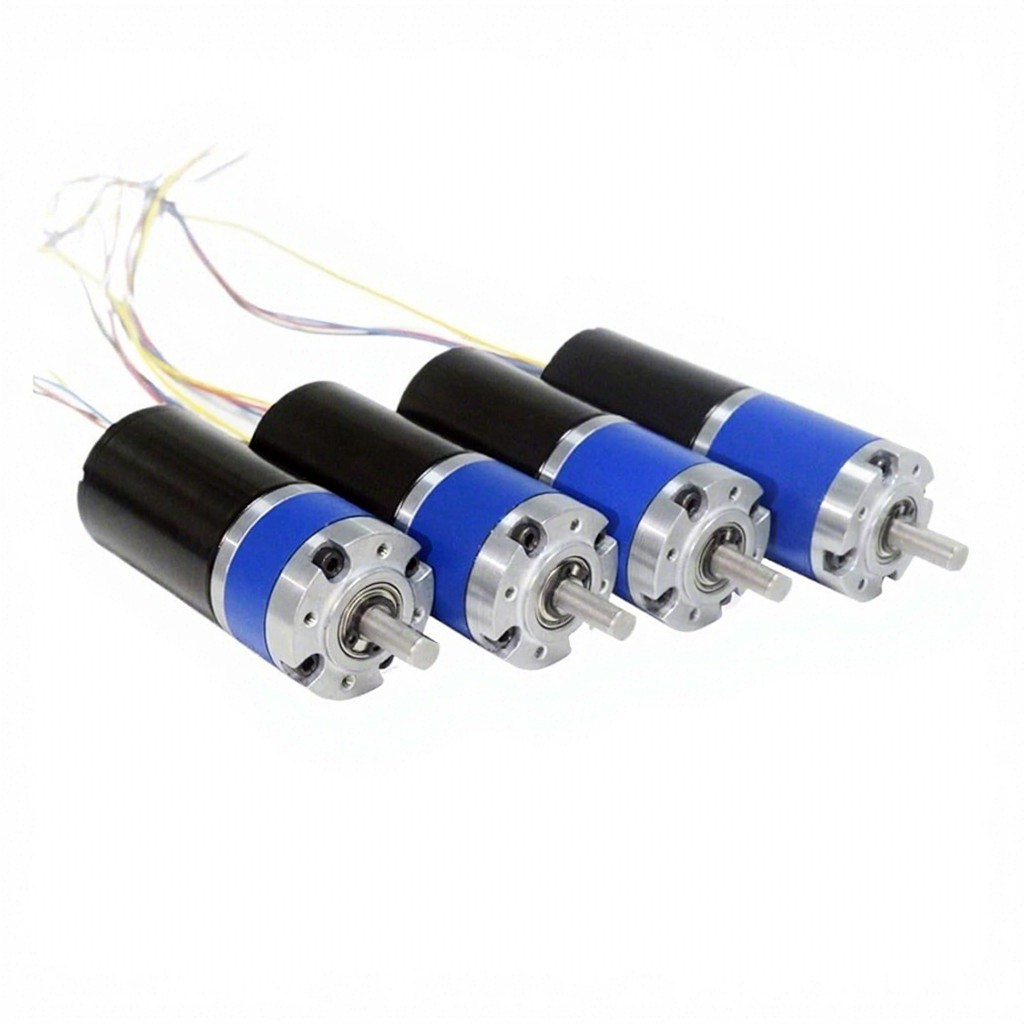

36P-3650 36mm Brushless Planetary Gear Motor
- · Model: 36P-3650
- · Gearbox Outer Diameter: 36 mm
- · Motor Type: 3650 Brushless DC (BLDC) Planetary Gear Motor
- · Operating Voltage Range: 12.0V – 36.0V DC (Nominal: 12.0V / 24.0V)
- · No-Load Speed: 10 RPM – 1500 RPM (Customizable based on gear ratio)
Product Overview
The 36P-3650 36mm Brushless Planetary Gear Motor couples an ultra-durable 3650 BLDC motor core with a heavy-duty 36mm precision planetary gearbox. Engineered for long operational lifespan, continuous high power density, and minimal electrical noise, the 36P-3650 delivers exceptional speed control and stall torque performance across demanding industrial drives, smart automation, and robotics applications.
Key Features & Engineering Highlights
High-Efficiency 3650 BLDC Core
Brushless design eliminates mechanical brush wear, providing superior power efficiency, extended operational life, and minimal maintenance overhead.
Heavy-Duty 36mm Planetary Structure
Multi-gear load distribution handles high radial stress and shock loads evenly, delivering maximum torque density with low angular backlash.
All-Metal Sintered Steel Gears
Precision powder metallurgy planet and sun gears provide ultimate wear resistance and structural integrity during high-torque stall conditions.
Ultra-Quiet & Precise Speed Control
Smooth gear meshing combined with Hall-sensor feedback allows ultra-quiet operation, minimal vibration, and pin-point velocity control.
Target Applications
- Autonomous Mobile Robots (AMRs) & AGV Drive Wheels
- Precision Medical Pumps, Lifts & Diagnostic Drives
- Industrial Conveyors & Automatic Sorting Systems
- Heavy-Duty Automated Valves & Industrial Actuators
- Motorized Pergolas, Curtains & Smart Sunshades
- Commercial Smart Lock Openers & Security Barriers
- Financial ATM Bill Handlers & Money Counting Drives
- Automated Vending Dispensing & Product Feeders
Custom OEM/ODM Engineering Options
We offer tailored mechanical and electrical modifications to meet your exact design requirements. Contact our engineering team for customized configurations including:
Tailored Planetary Reduction Ratios
Shaft Geometry (D-Cut, Keyway, Round, Threaded)
Integrated Hall Sensor / Driver Circuitry
Custom Wiring Harnesses & Connectors

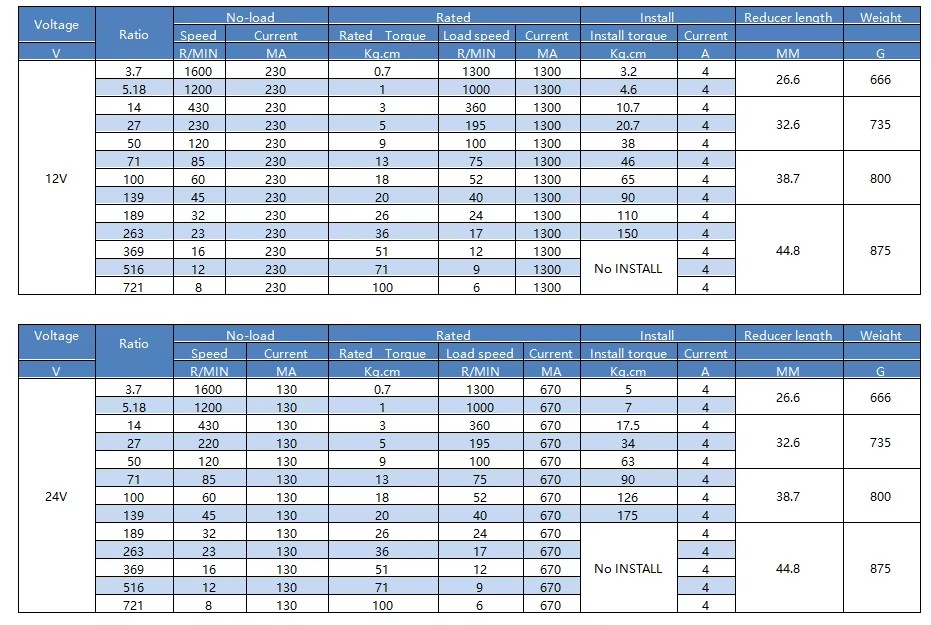

Technical Specifications
| Model | 36P-3650 |
| Gearbox Outer Diameter | 36 mm |
| Motor Type | 3650 Brushless DC (BLDC) Planetary Gear Motor |
| Operating Voltage Range | 12.0V – 36.0V DC (Nominal: 12.0V / 24.0V) |
| No-Load Speed | 10 RPM – 1500 RPM (Customizable based on gear ratio) |
