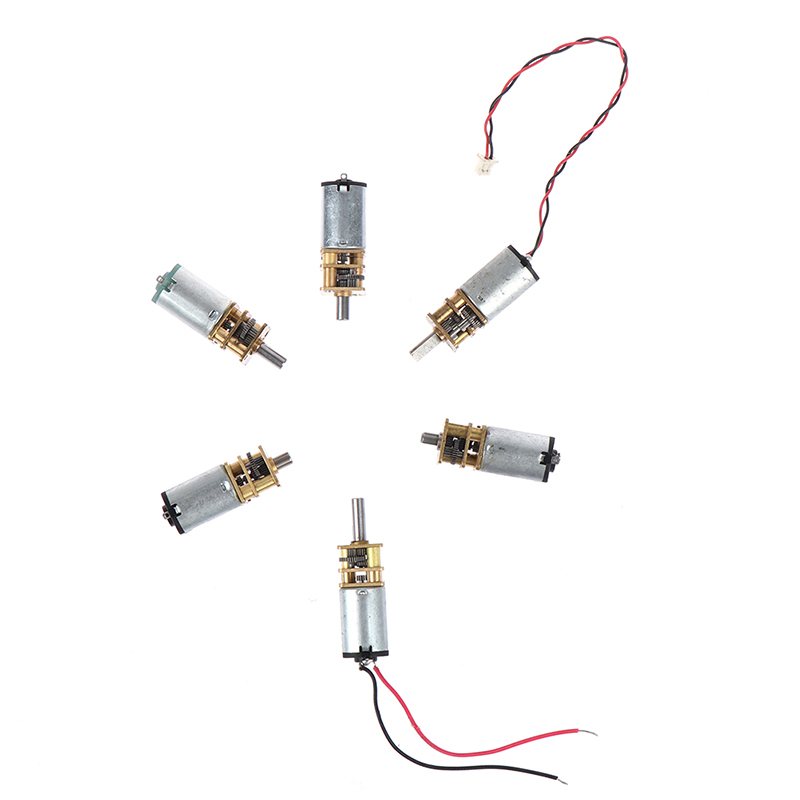

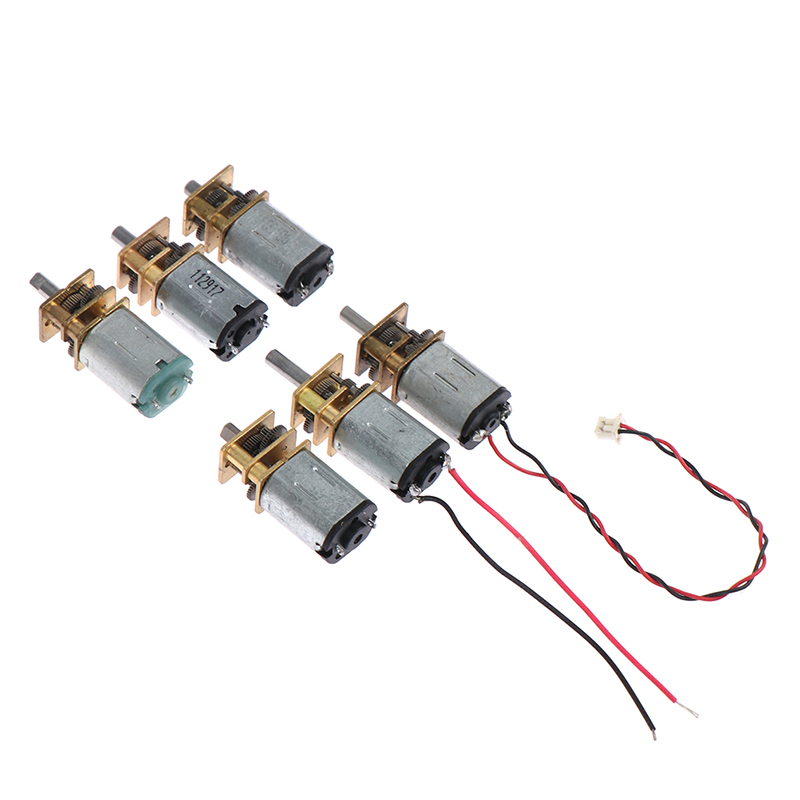

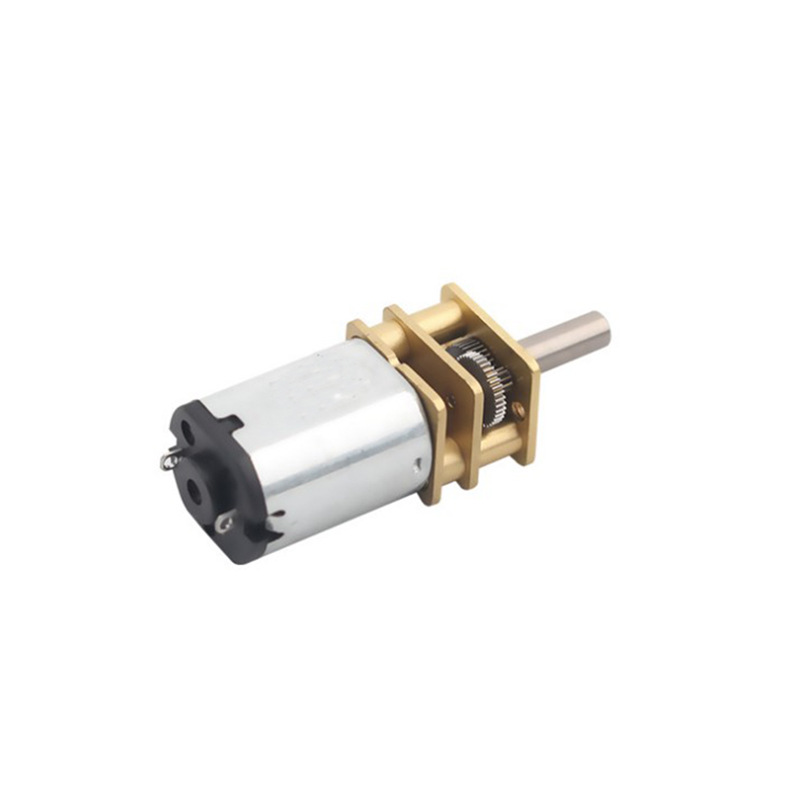

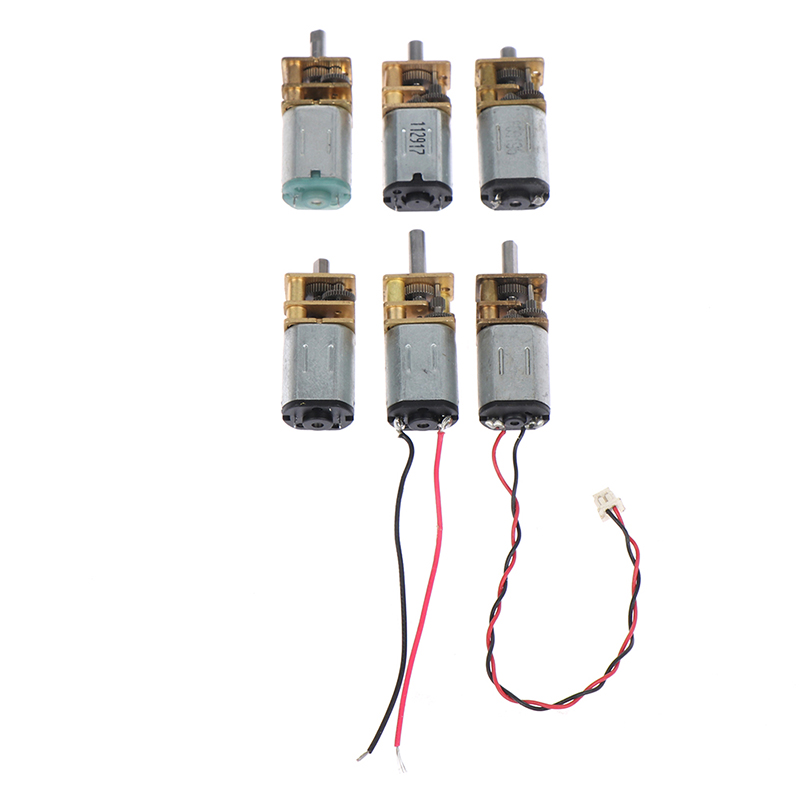

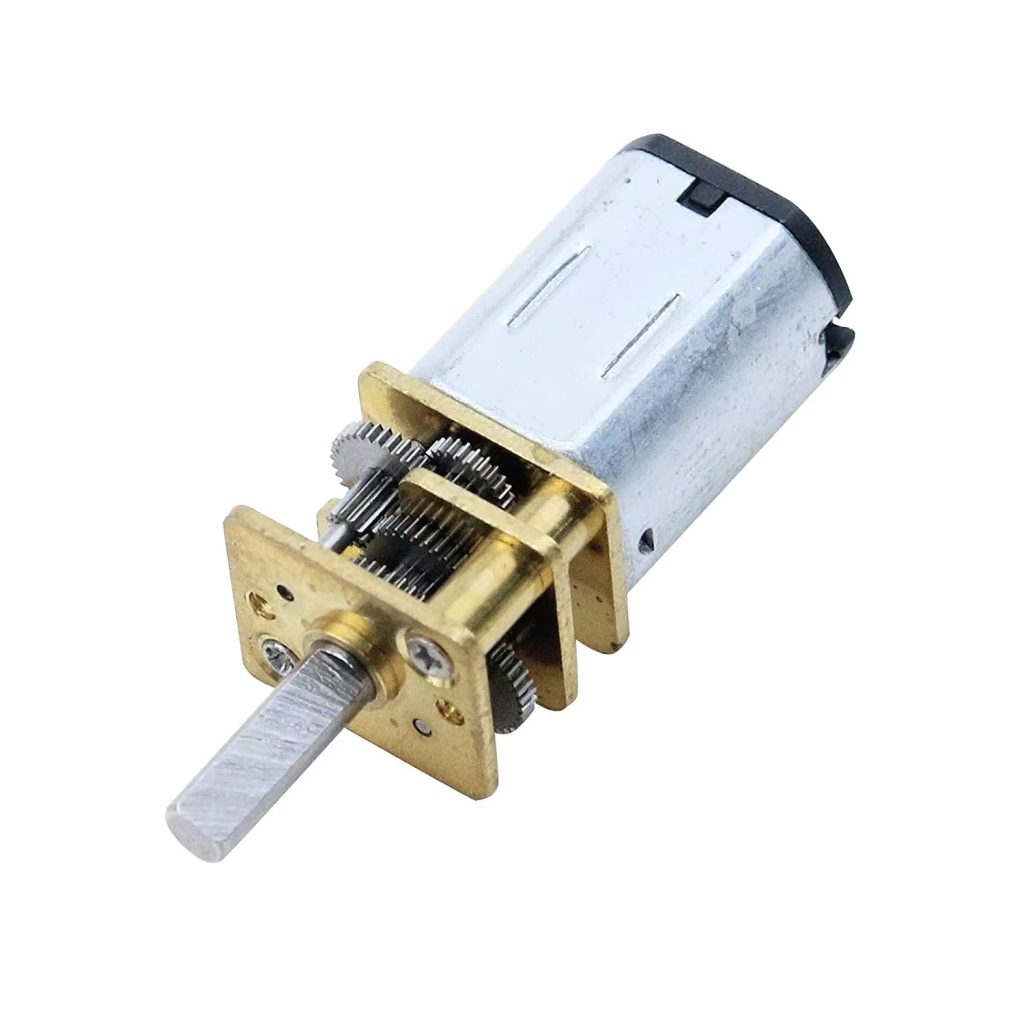

12F-N20 Micro Spur Gear Motor
Model: 12F-N20
- Delivers high torque density in a compact diameter design
- Precision gear structure ensures smooth & ultra-low noise operation
- Wide output speed range to meet versatile industrial needs
- Fully customizable gear ratios, shaft dimensions, and wire leads
- Heavy-duty industrial grade quality with long operational lifespan
Product Highlights
-
Compact 12mm N20 metal reduction gearbox for high space-efficiency
-
All-metal gear train ensuring high durability and wear resistance
-
Low acoustic noise design with smooth and stable transmission
-
Broad range of reduction ratios available for precise speed and torque tuning
-
Available with Hall effect encoder or optical encoder feedback options
-
Customizable output shaft length, D-cut profile, and lead wire terminals
-
Low power consumption ideal for battery-powered micro devices
-
RoHS & REACH compliant manufacturing process
Technical Specifications
| Parameters | Specifications |
|---|---|
| Operating Voltage | 3.0V – 12.0V DC (Standard: 6V / 12V) |
| No-Load Speed | 15 RPM – 1000 RPM (Customizable) |
| Rated Torque | 0.05 – 0.8 kg.cm (5 – 80 mN.m) |
| Stall Torque | Up to 1.5 kg.cm |
| Gearbox Dimensions | 12mm × 10mm (N20 Frame) |
| Gear Ratio Options | 1:10, 1:30, 1:50, 1:100, 1:150, 1:298, 1:1000 |
| Gear Material | Precision Brass / Steel Metal Gears |
| Shaft Diameter | 3.0mm (D-shape shaft, standard length 10mm / custom available) |
| Direction of Rotation | CW / CCW Reversible |
| Operating Temperature | -10°C to +60°C |
Why Choose Us
Factory Manufacturing Capabilities
Modern precision workshop, advanced CNC automated machining centers, and 100% full-inspection assembly lines.
CNC Machining Workshop
High precision ±0.005mm tolerance
Automated Assembly Lines
Capacity up to 50,000 units/month
Rigorous QC & Testing Lab
Noise, torque & life cycle testingInternational Certifications
Verified compliance with global standards, supporting smooth customs clearance and regulatory approvals across North America and Europe.
ISO 9001-QMS
European Conformity Verified
CE（EMC 24V）
Eco-friendly & hazardous-free
CE RoHS
Standardized Quality Management
