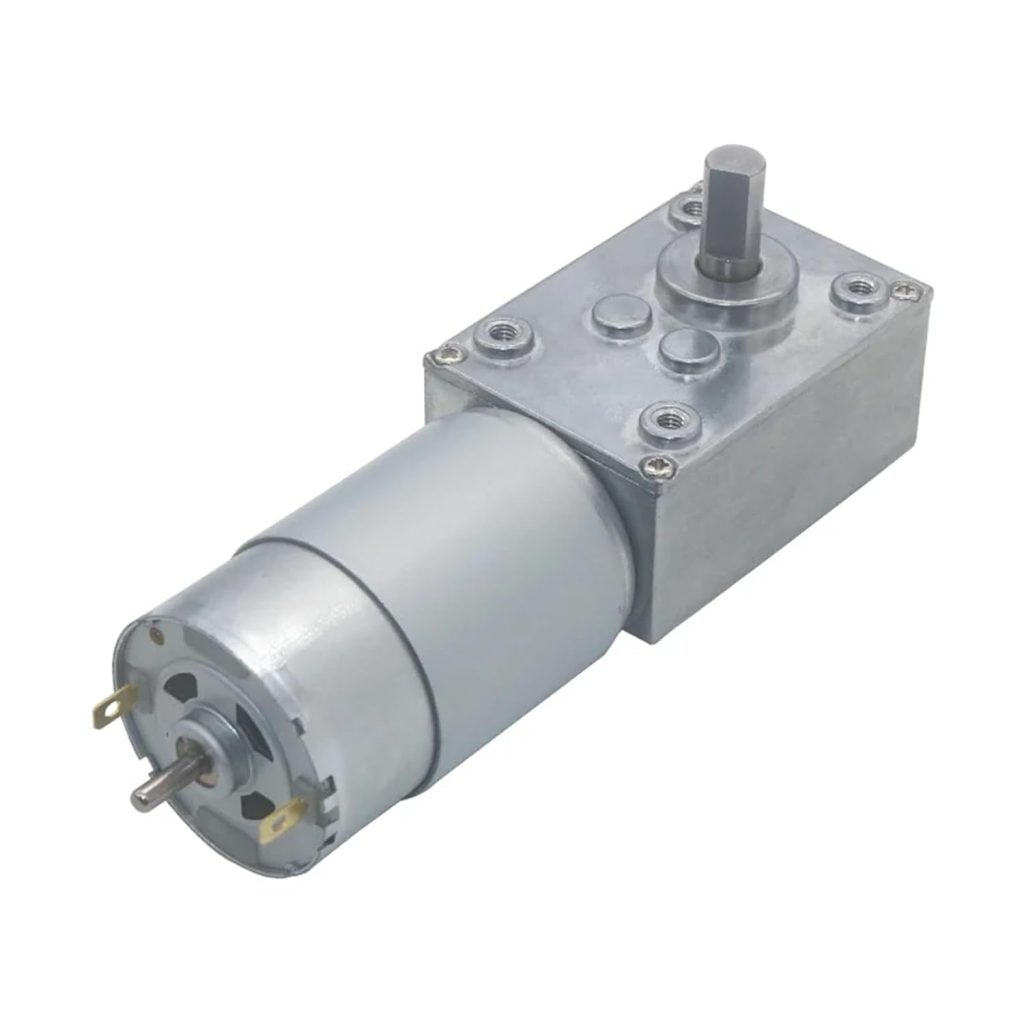

High-Torque 5840Z-555 Worm Gear Motor

Model: 5840Z-555

Product Highlights

Self-Locking Worm Gear System: Prevents output shaft back-driving when powered off, ensuring structural load holding without external brakes.
Heavy-Duty All-Metal Transmission: Built with high-strength alloy gears, steel worm shafts, and a die-cast housing for continuous high-load endurance.
High-Power 555 Motor Core: Paired with a robust 5840 gearbox to deliver strong stall torque performance up to 70 kg.cm.
90-Degree Right-Angle Layout: Right-angle shaft output saves vital axial mounting depth in shallow machinery frames and narrow enclosures.
Reversible Direction Control: Change rotation direction (CW/CCW) effortlessly by swapping the DC input voltage polarity.
Smooth Meshing & Low Noise: Precision-machined gear teeth minimize mechanical vibration, friction, and running noise during operation.
Flexible Customization Options: Supports custom D-cut shafts, threaded rods, dual output shafts, custom wiring harnesses, and magnetic encoders.

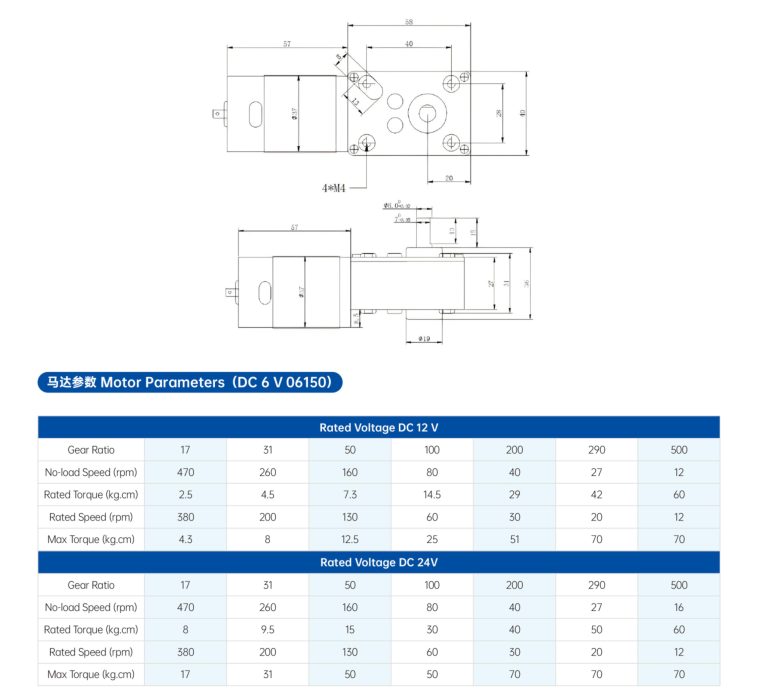

Parameters	Specifications
Model Series	5840Z-555 High-Torque Worm Gear Motor
Motor Core Type	Brushed DC 555 Motor with 5840 Right-Angle Worm Gearbox
Rated Voltage Options	12.0V DC / 24.0V DC (Customizable)
No-Load Speed	5 RPM – 470 RPM (Depending on Gear Ratio)
Rated Torque	3.0 kg.cm – 40.0 kg.cm
