XS002A High-Precision HV Metal Gear Digital Servo
- · Continuous Current(A): 1.2A
- · Operating Temperature Range: -15℃~+55℃, ≤90%RH;
- · Operating voltage: 7.4V
- · Idle current (at stopped): ≤10mA
- · Pulse width range: 500~2500μ
- · Dead band width: 3μs
- · Pin assignment: GND /Vcc /Signal
- · Wire length JR: 300mm / Large torque of bearing
Product Overview

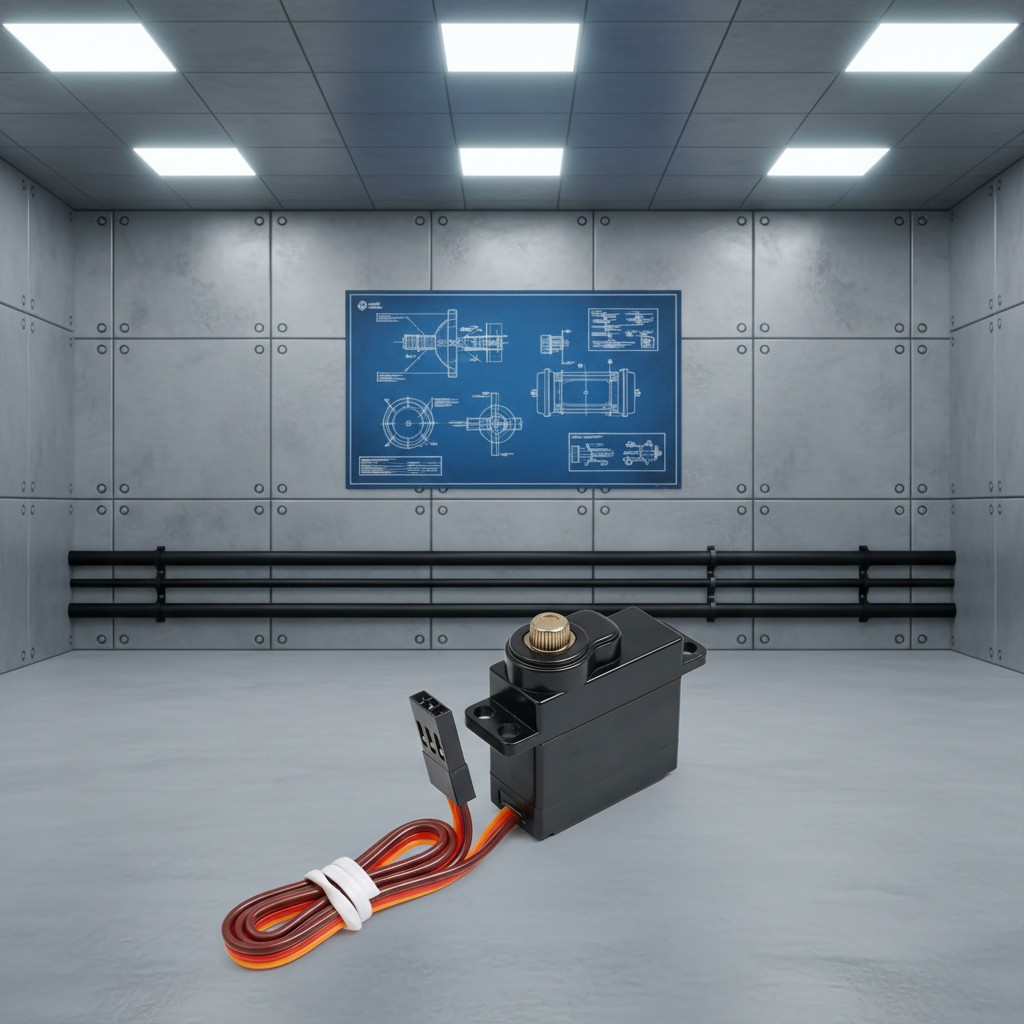

XS002A High-Precision HV Metal Gear Digital Servo

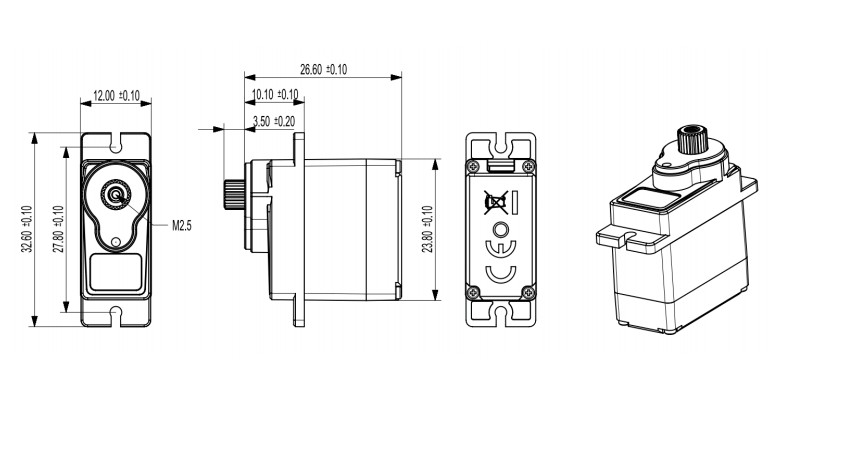

The XS002A Micro Digital Servo is an advanced, high-voltage actuator engineered for demanding industrial, robotic, and RC applications. Featuring a heavy-duty machined brass metal gear train and supporting a wide operating voltage range from 5.0V to 7.4V (HV direct 2S LiPo), the XS002A delivers an exceptional stall torque of up to 6.0 kgf.cm in a compact 27.8mm x 12.0mm footprint.
High Voltage Performance & Precision Backlash Control
Built to satisfy strict motion control requirements, the XS002A maintains an angle deviation tolerance of ≤ 1.0° and gear backlash of ≤ 1.0°. Driven by an optimized digital processing driver, the servo achieves ultra-fast transit speeds down to 0.11s/60° at 7.4V while maintaining a low idle current of under 10mA, making it ideal for energy-sensitive mobile robotics.
Industrial Durability & 70,000 Cycle Lifespan
Designed for heavy duty cycles, the internal precision brass gears resist mechanical wear and shock loads, providing a certified service life of up to 70,000 cycles at 5.0V. The robust output shaft is equipped with an M2.5 threaded spline, providing a rigid interface for various servo horns during high-impact operations.
Engineered Specifications & Versatile Accessories

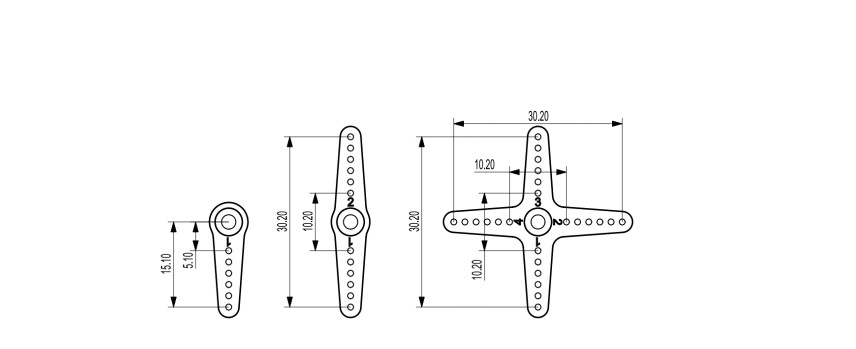

Pre-wired with high-flexibility wiring and a standard 3-pin JR connector, the XS002A seamlessly integrates into standard receiver systems and microcontrollers (e.g., Arduino, Raspberry Pi, ESP32). Each servo package includes a full accessories set featuring multiple horn geometry configurations (ranging from 15.1mm single horns to 30.2mm cross arms) and mounting screws.
Key Advantages & Engineering Highlights
- High Torque-to-Size Ratio: Generates up to 6.0 kgf.cm stall torque at 7.4V while weighing only a fraction of standard servos.
- High Voltage (HV) Compatibility: Operates safely across 5.0V, 6.0V, and 7.4V BEC or 2S LiPo battery buses.
- Strict Quality Assurance: Fully compliant with CE/EMC and RoHS standards, thoroughly tested on automated test rigs for torque and angular accuracy.

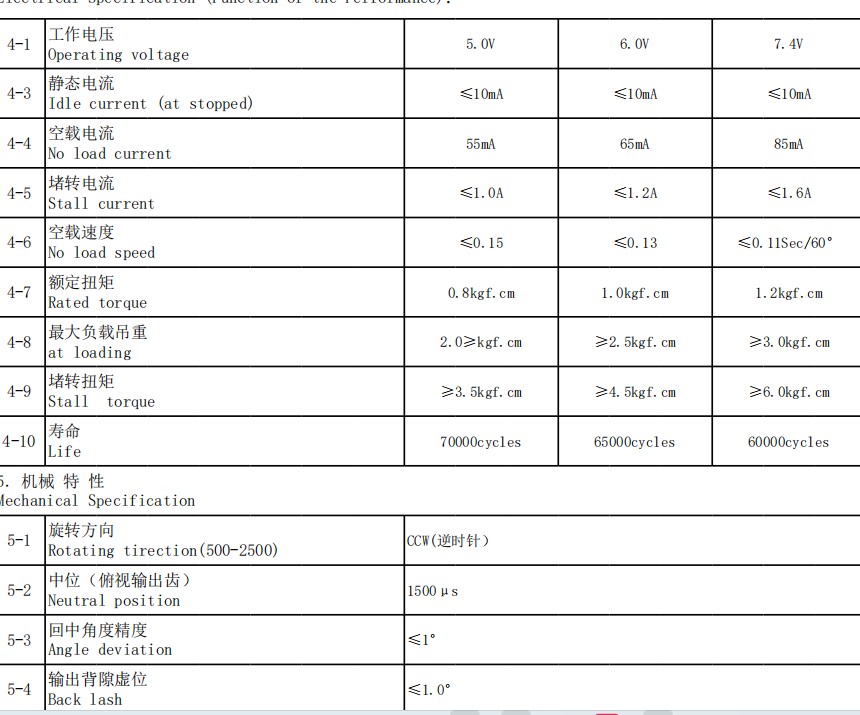

Technical Specifications
| Continuous Current(A) | 1.2A |
| Operating Temperature Range | -15℃~+55℃, ≤90%RH; |
| Operating voltage | 7.4V |
| Idle current (at stopped) | ≤10mA |
| Pulse width range | 500~2500μ |
| Dead band width | 3μs |
| Pin assignment | GND /Vcc /Signal |
| Wire length JR | 300mm / Large torque of bearing |
