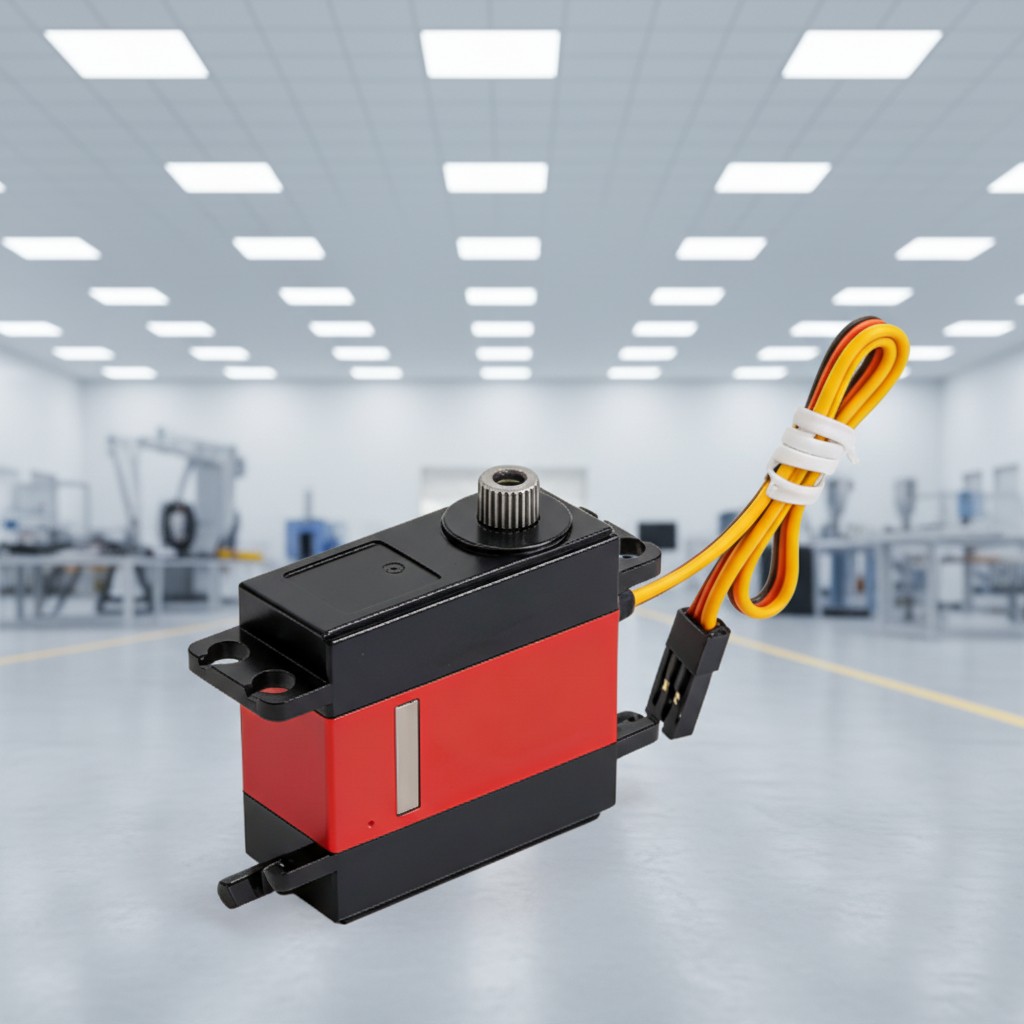

XS003B 8.4V HV Coreless Alloy Metal Gear Digital Servo

New

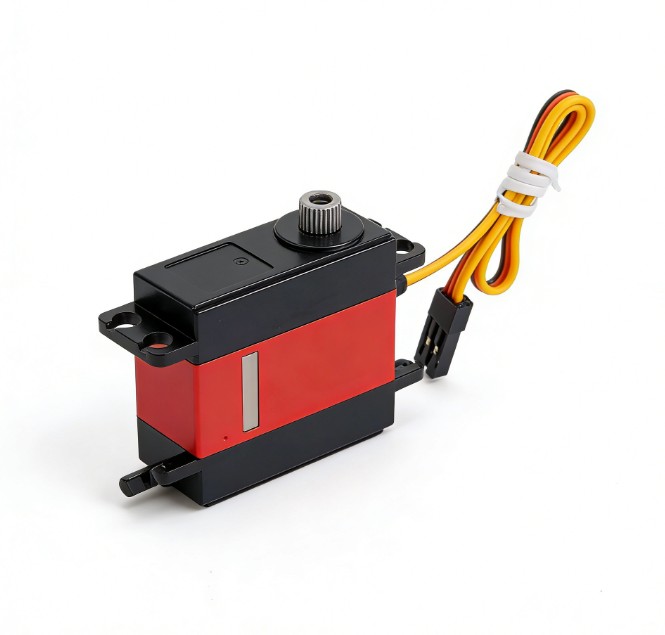

XS003B 8.4V HV Coreless Alloy Metal Gear Digital Servo

Model: XS003B

Delivers high torque density in a compact diameter design
Precision gear structure ensures smooth & ultra-low noise operation
Wide output speed range to meet versatile industrial needs
Fully customizable gear ratios, shaft dimensions, and wire leads
Heavy-duty industrial grade quality with long operational lifespan

Product Highlights

Ultra High Voltage (HV) 6.0V to 8.4V direct support delivering massive torque up to 20.0 kgf.cm
High-efficiency coreless motor providing rapid acceleration, low inertia, and high thermal stability
Precision cut alloy metal gear train resisting extreme impact forces and gear stripping
Red CNC anodized aluminum middle case providing optimal heat dissipation under heavy loads
Ultra-long operational lifespan rated up to 100,000 cycles at 6.0V continuous duty
Narrow 2µs deadband width and ≤ 1.0° backlash for sub-degree positional control accuracy
Generous 290mm connection wire with standard 3-pin JR 2.54 connector for easy routing
Fully certified quality control backed by CE, EMC, RoHS, and ISO 9001 compliance

Applications

> Precision Robotics & Cobots
> Medical Devices & Surgical Systems
> Aerospace & Flight Actuators
> Automotive Electric Drive Systems
> Industrial Automation & AGV/AMR
> Semiconductor Handling Equipment
> CNC Machine Tool Feeding Units
> Precision Optical Positioning
> High-Speed Packaging Machinery

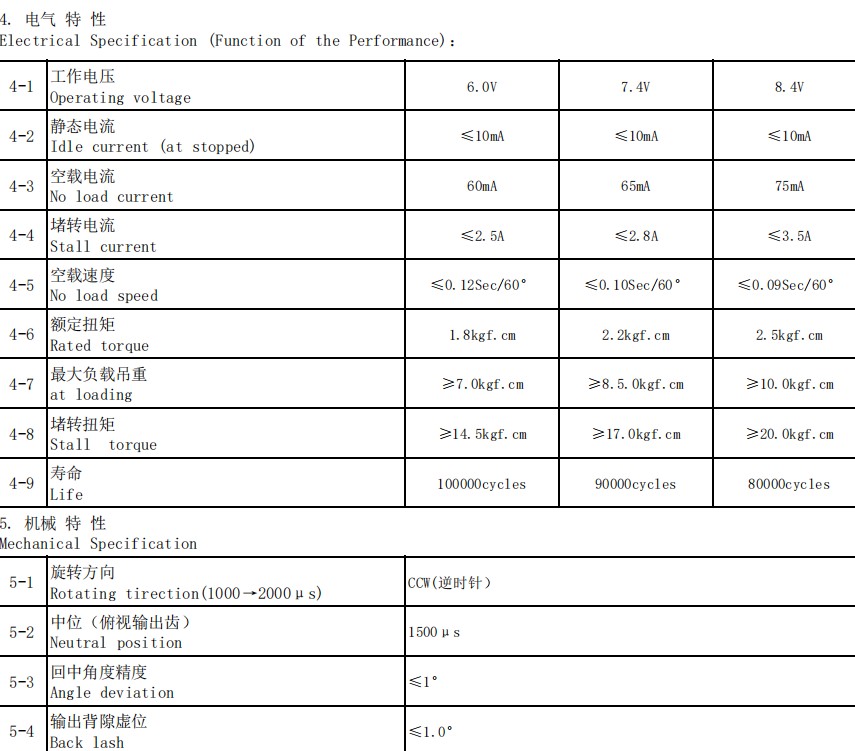

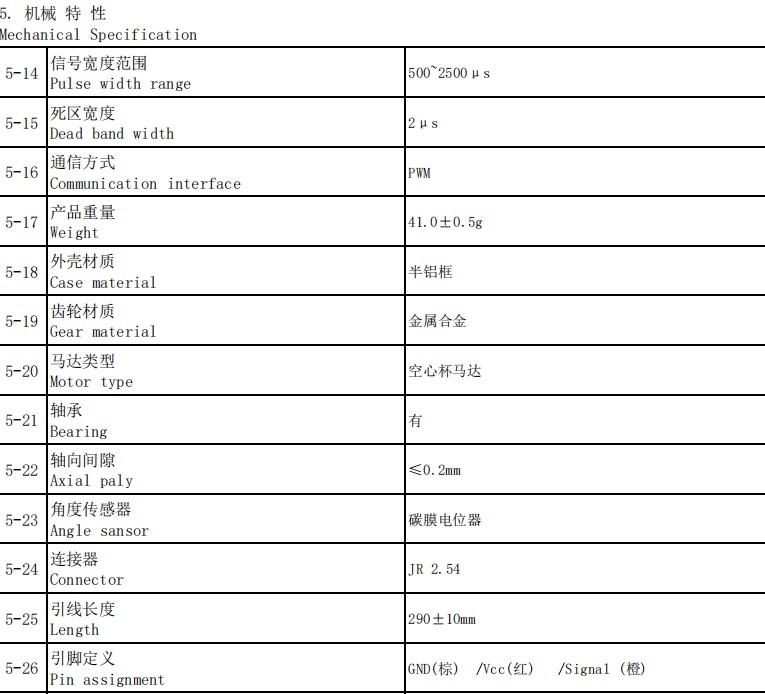

Technical Specifications

Parameters	Specifications
Torque	High torque bearing
Model name	25g Servo
Neutral position	1500μs
Operating voltage	7.4V
Rated torque	2.5kgf.cm
Pin assignment	GND/Vcc/Signal
No load current	65mA
Mechanical limit angle	360°

Why Choose Us

Factory Manufacturing Capabilities

Modern precision workshop, advanced CNC automated machining centers, and 100% full-inspection assembly lines.

International Certifications

Verified compliance with global standards, supporting smooth customs clearance and regulatory approvals across North America and Europe.
