XS001A High-Precision Anti-Burn Metal Gear Digital Servo

New

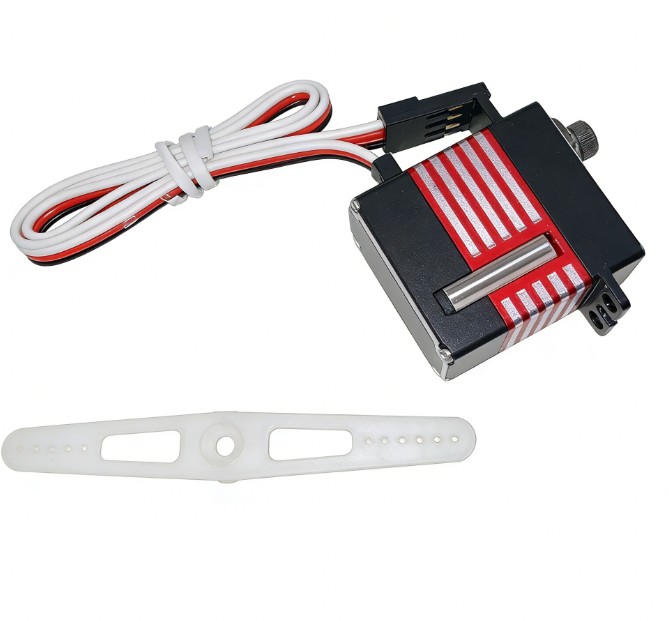

XS001A High-Precision Anti-Burn Metal Gear Digital Servo

Model: XS001A

Delivers high torque density in a compact diameter design
Precision gear structure ensures smooth & ultra-low noise operation
Wide output speed range to meet versatile industrial needs
Fully customizable gear ratios, shaft dimensions, and wire leads
Heavy-duty industrial grade quality with long operational lifespan

Product Highlights

Anti-burn and anti-shake protection algorithms preventing servo burnout during stall conditions
Heavy-duty metal gear train engineered to prevent tooth sweeping under severe shock impacts
Red CNC anodized aluminum center case providing high thermal conductivity and structural rigidity
Ultra-high torque output up to 4.6 kg.cm at 7.4V HV operating voltage
Low operational noise and high positional resolution with minimal deadband
Long operational lifespan backed by rigorous factory testing and quality certification

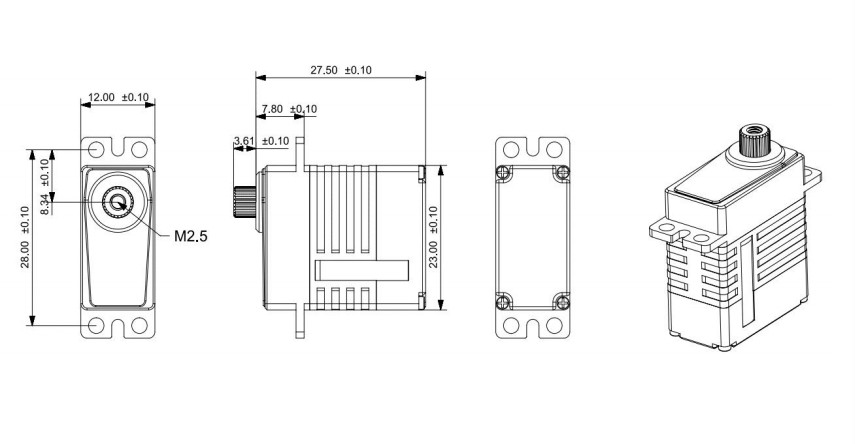

Precise CAD geometry (28x12x27.5mm) with standard M2.5 output shaft mounting

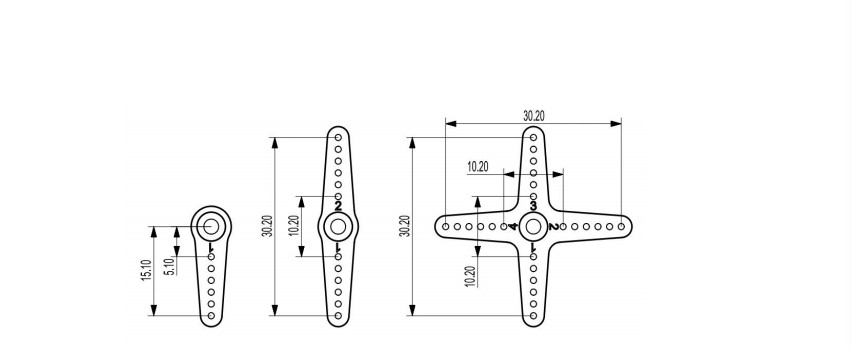

Complete hardware kit included with multiple reinforced servo horns (15.1mm to 30.2mm)

Applications

> Precision Robotics & Cobots
> Medical Devices & Surgical Systems
> Aerospace & Flight Actuators
> Automotive Electric Drive Systems
> Industrial Automation & AGV/AMR
> Semiconductor Handling Equipment
> CNC Machine Tool Feeding Units
> Precision Optical Positioning
> High-Speed Packaging Machinery

Technical Specifications

Parameters	Specifications
Continuous Current(A)	0.3A
Torque	High Torque
Pulse width range	500~3700μs
Case material	metal
Dead band width	3μs
Weight	19.0±0.5g
Connector	JR 2.54
Length	220±10mm
Length of wire	300mm
Operating voltage	7.4V

Why Choose Us

Factory Manufacturing Capabilities

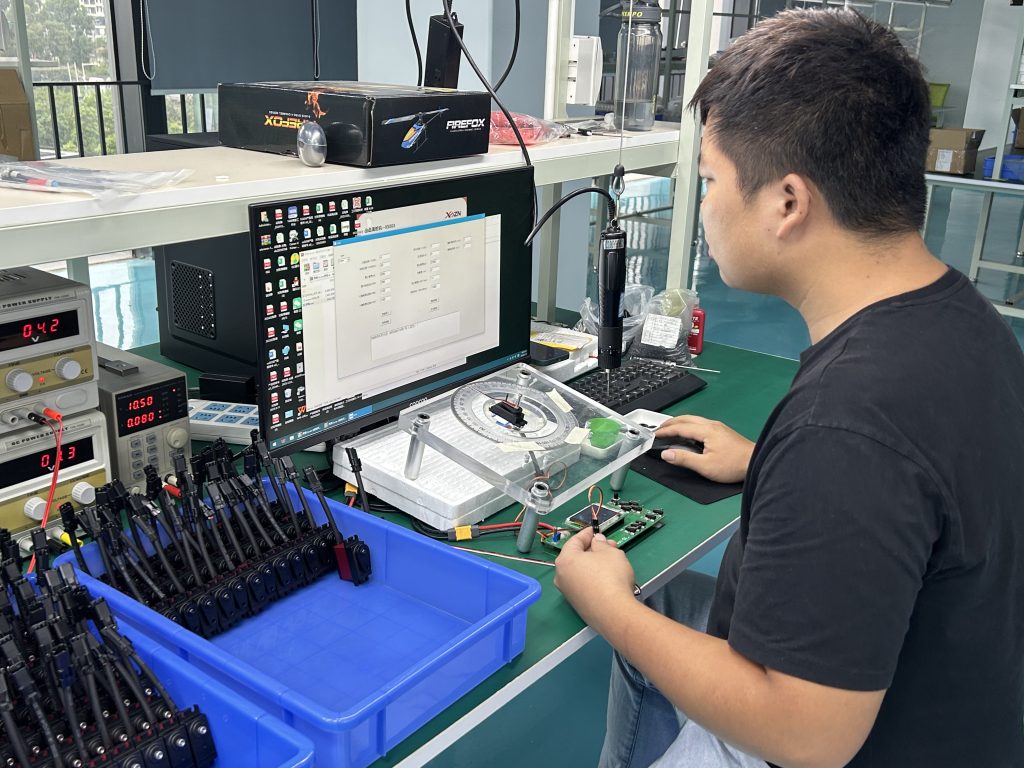

Modern precision workshop, advanced CNC automated machining centers, and 100% full-inspection assembly lines.

International Certifications

Verified compliance with global standards, supporting smooth customs clearance and regulatory approvals across North America and Europe.
