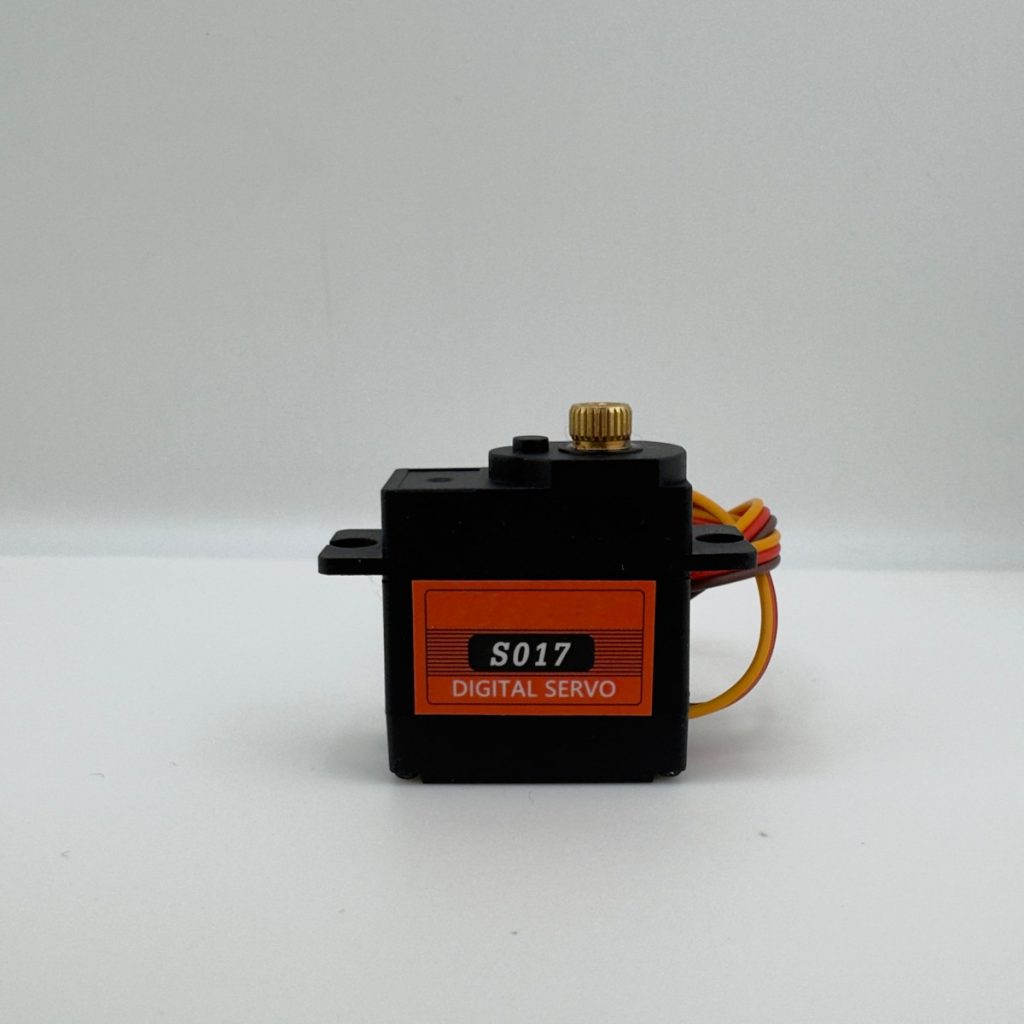

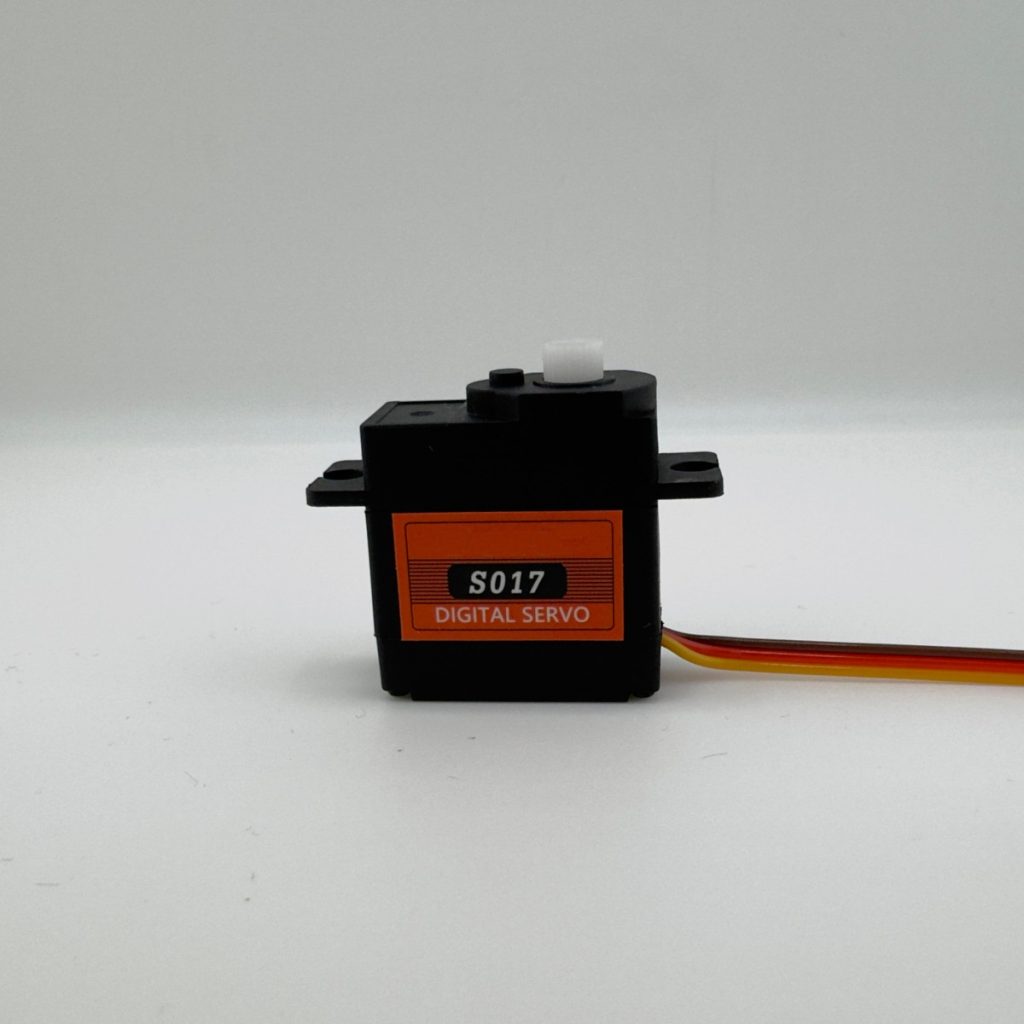

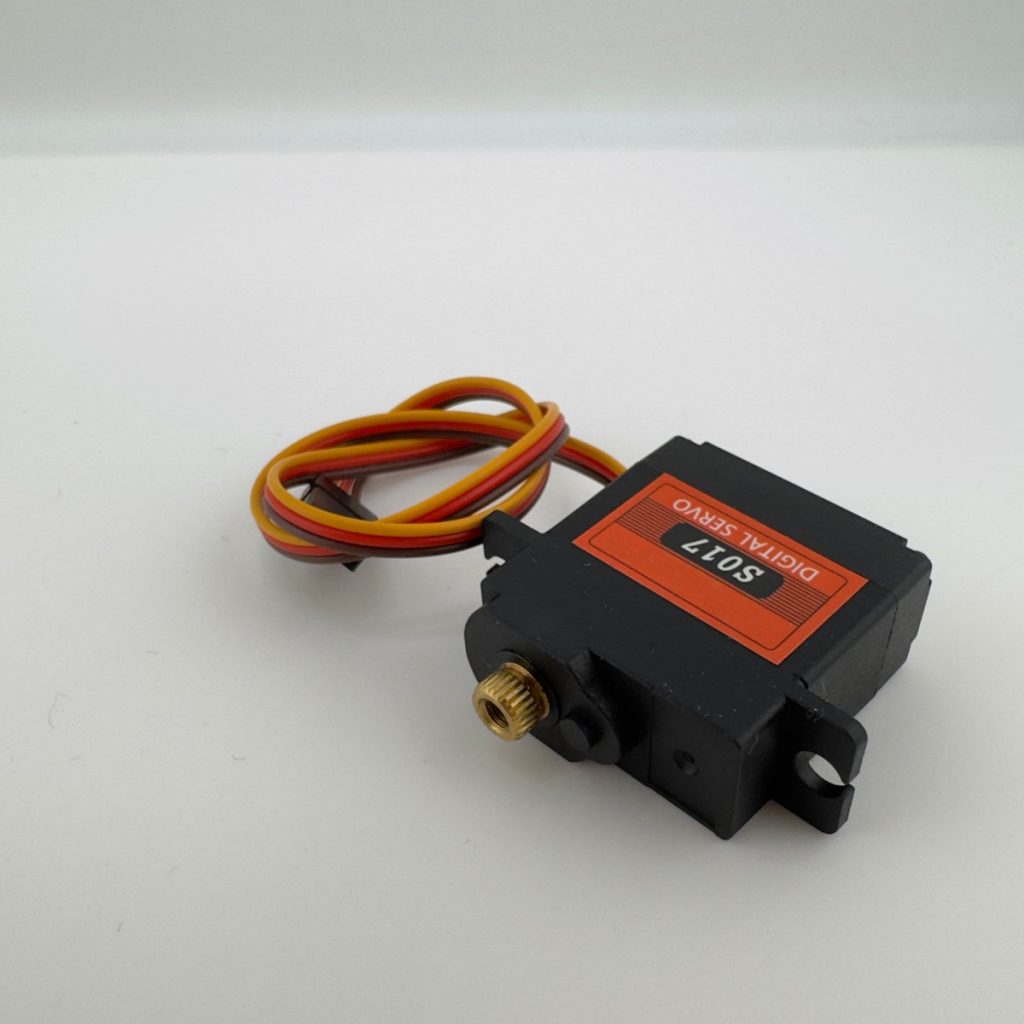

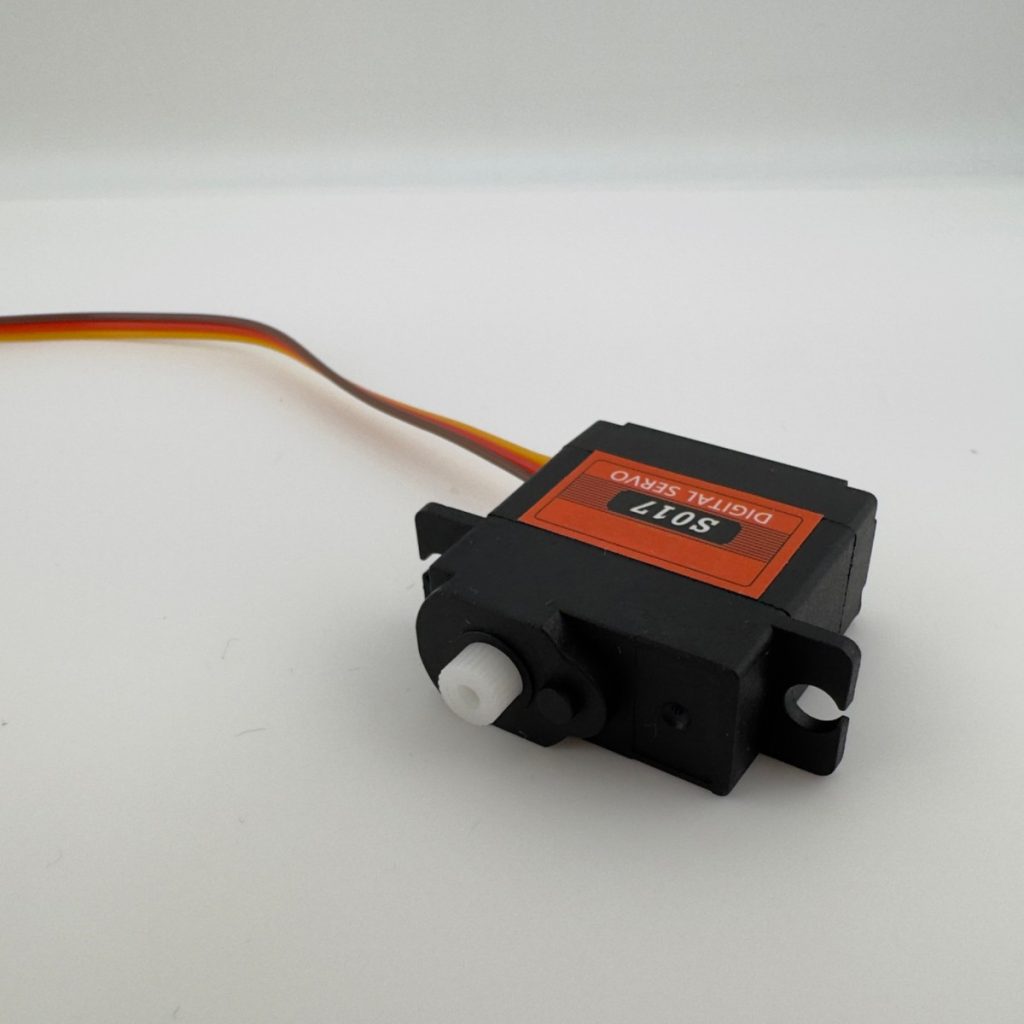

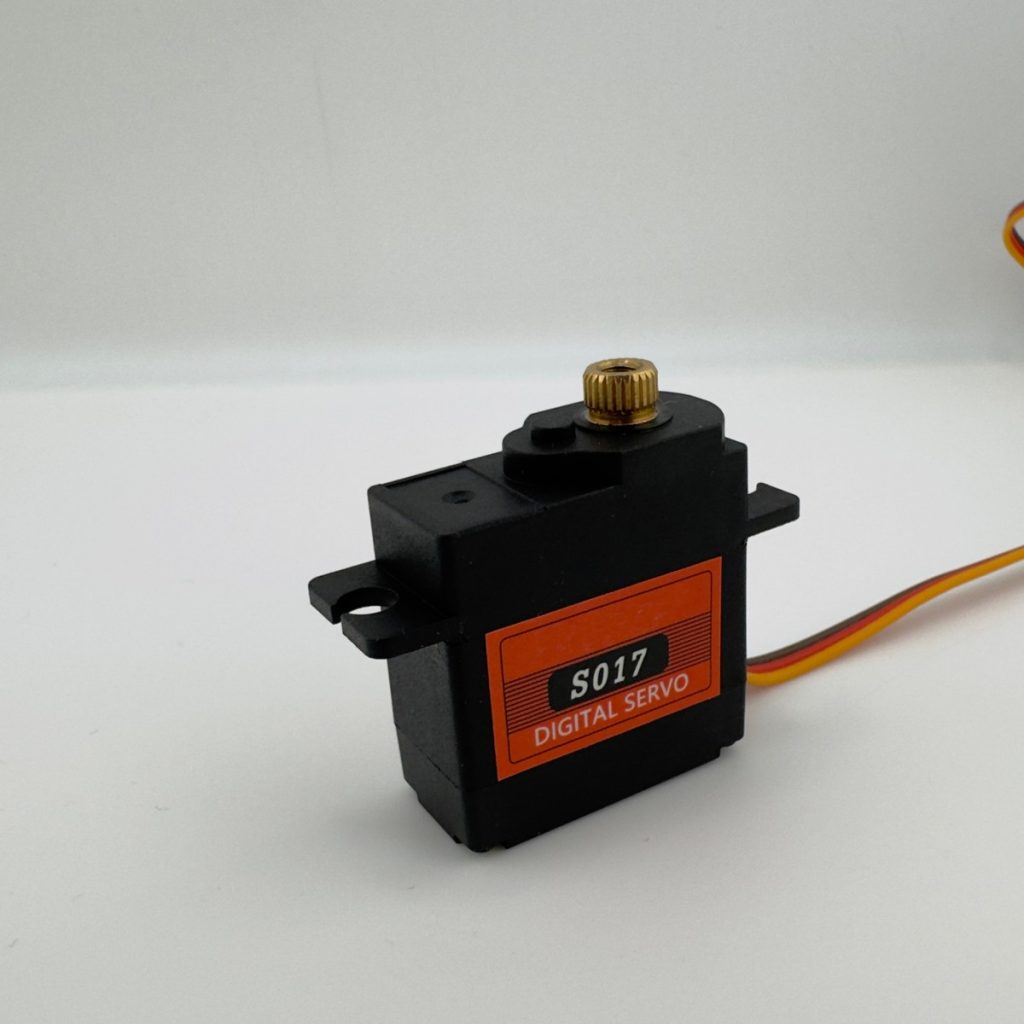

S017 17g Micro Digital Metal Brass Gear Servo (180° Rotation)

Product Overview

Shenzhen Wan Yuan S017 17g Micro Digital Metal Gear Servo (180°)

The S017 17g Micro Digital Servo is engineered by Shenzhen Wan Yuan Transmission Co., Ltd. to bridge the gap between ultra-micro servos and standard 9g/20g class actuators. Featuring a heavy-duty machined brass gear train and an advanced digital control circuit, the S017 delivers high stall torque (up to 2.5 kg.cm) and exceptional crash resistance in a compact 17-gram chassis.

Machined Brass Gear Train & Digital Centering

Equipped with precision-cut brass gears and a micro coreless motor, the S017 handles heavy shock loads without tooth stripping. Wan Yuan’s digital signal processing chip guarantees low deadband, instant signal response, and tight return-to-center accuracy across its full 180-degree angular travel, giving pilots and robotic engineers smooth proportional control.

Complete Mounting Kit & Receiver Compatibility

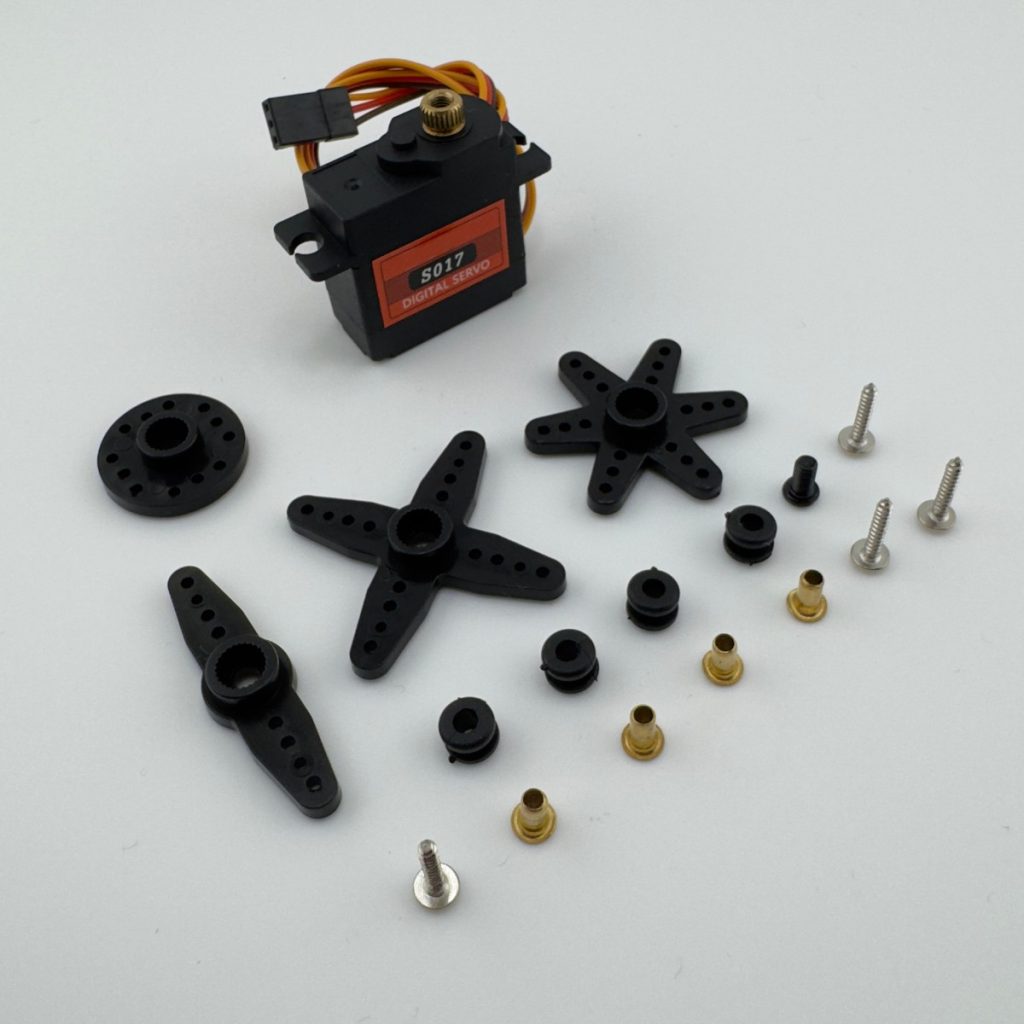

Pre-wired with a 250mm flexible cable and a standard 3-pin JR connector, the S017 seamlessly integrates with Spektrum, Futaba, FrSky, Flysky, and other major receiver buses. Each servo comes with a comprehensive installation kit containing multiple reinforced plastic servo arms, mounting screws, brass eyelets, and vibration-dampening rubber grommets.

Key Advantages & Engineering Highlights

• High Torque-to-Weight Ratio: Generates up to 2.5 kg.cm of stall torque at 6.0V while weighing only 17 grams.
• 180° Wide Angular Deflection: Provides extended deflection angles required for 3D flight surfaces, steering linkages, and robotic joint control.
• Strict Quality Assurance: Built under Shenzhen Wan Yuan Transmission’s ISO 9001 quality management system for consistent production reliability.
