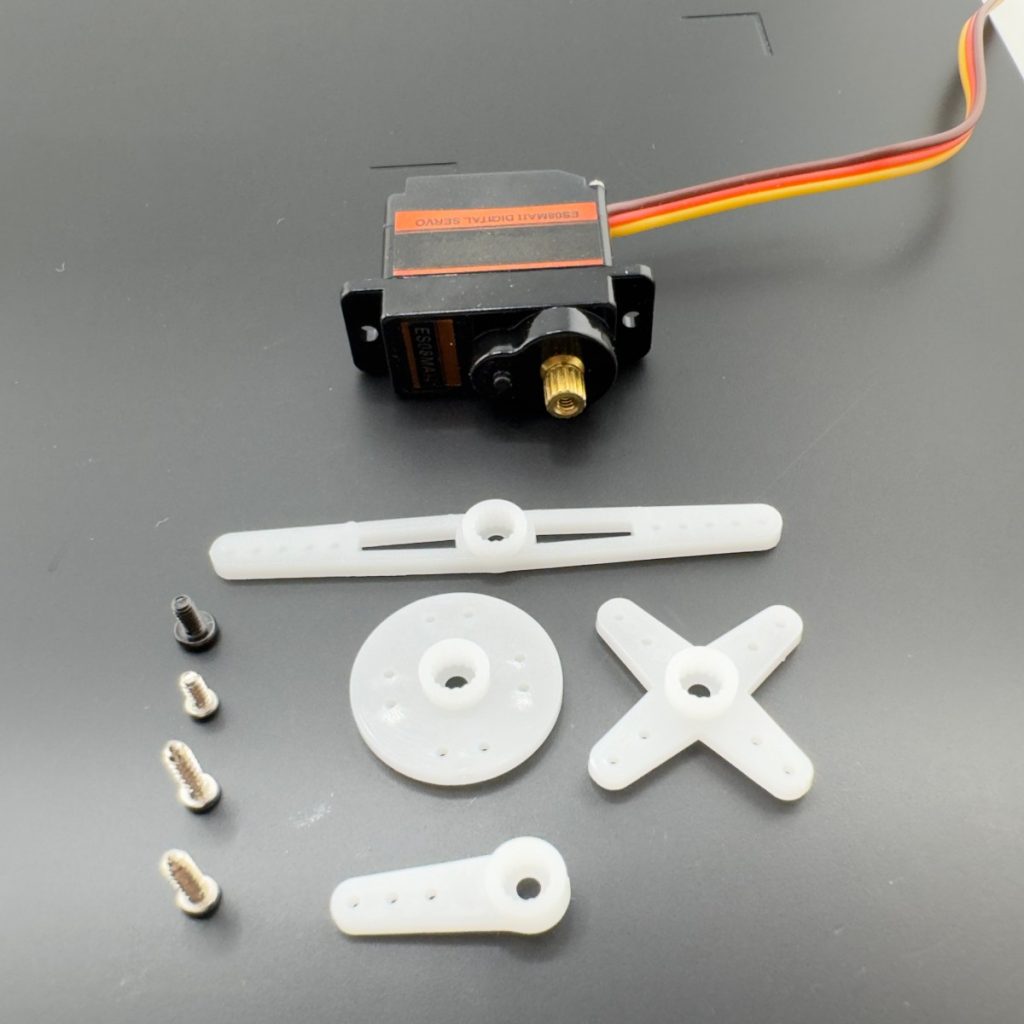

ES08MA II 8g Micro Metal Brass Gear Digital Servo (180° Rotation)
- · Weight: 8.5g / 0.30 oz (excluding cable & accessories)
- · Dimensions: 23.0mm × 11.5mm × 24.0mm (0.9" × 0.45" × 0.94")
- · Operating Voltage: 4.8V – 6.0V DC
- · Operating Travel / Angle: 180° Neutral Control (900µs – 2100µs)
- · Gear Train Material: Precision Machined Brass Metal Gears
- · Operating Speed (4.8V): 0.12 sec / 60°
- · Operating Speed (6.0V): 0.10 sec / 60°
- · Stall Torque (4.8V): 1.60 kg.cm (22.2 oz.in)
- · Stall Torque (6.0V): 2.00 kg.cm (27.7 oz.in)
Product Overview
Shenzhen Wan Yuan ES08MA II 8g Micro Metal Brass Gear Digital Servo (180°)
The ES08MA II (ES08MAII) 8g Micro Digital Servo is engineered by Shenzhen Wan Yuan Transmission Co., Ltd. to deliver high holding power, crash durability, and rapid deflection in a compact micro chassis. Equipped with a precision-machined all-metal brass gear train and a digital processing driver, the ES08MA II outperforms traditional plastic servos under heavy mechanical loads.
Machined Brass Gears & Digital Precision
Utilizing high-density brass alloy gears, the ES08MA II effectively eliminates tooth stripping caused by hard landings or flight surface flutter. Wan Yuan’s digital control circuit provides low deadband, instant response, and tight return-to-center capability across its full 180-degree angular travel, giving pilots and robotic engineers precise proportional control.
Universal Receiver Compatibility & Hardware Package

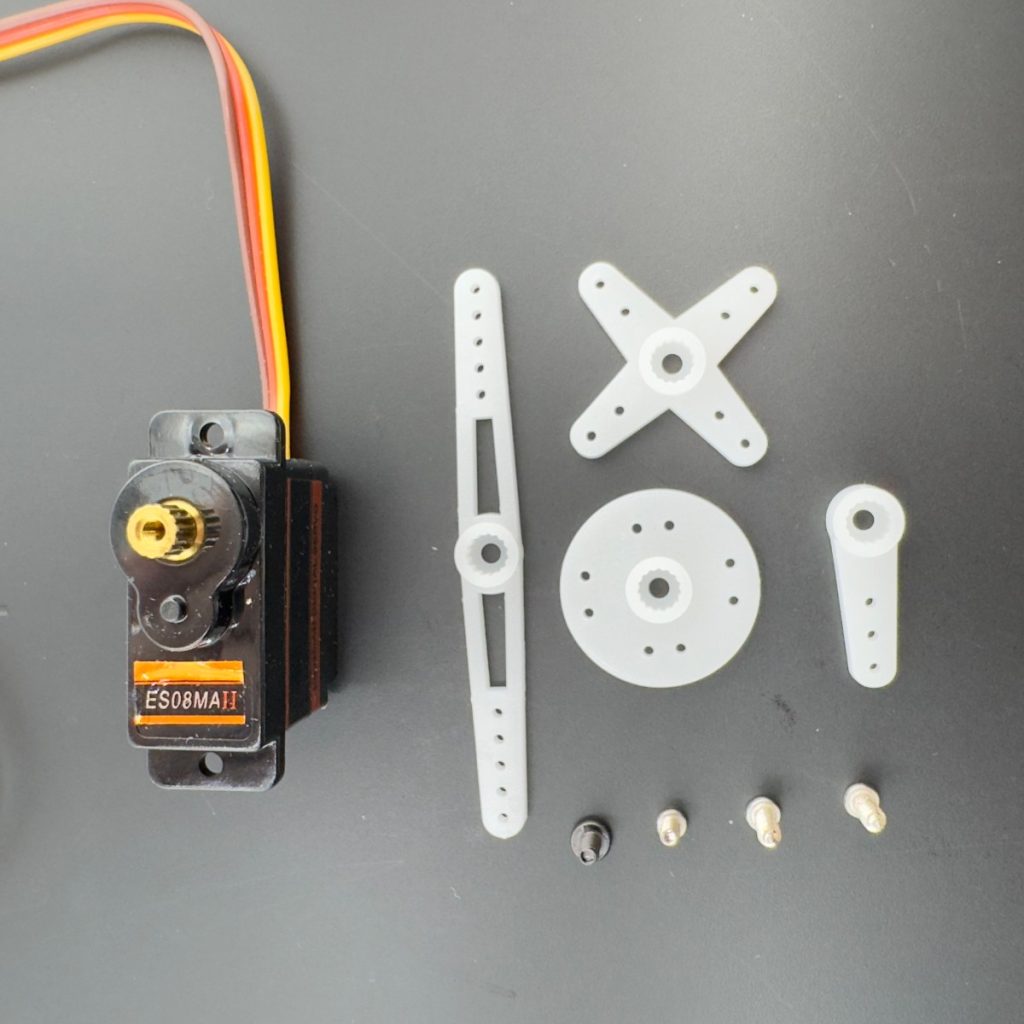

Pre-wired with a 250mm flexible cable and a standard 3-pin JR connector, the ES08MA II seamlessly plugs into Spektrum, Futaba, FrSky, Flysky, and other major receiver buses. Each servo is supplied in a complete set containing multiple reinforced plastic servo horns and mounting screws.
Key Advantages & Engineering Highlights
- All-Brass Metal Gear Train: Provides up to 2.0 kg.cm of stall torque at 6.0V while maintaining superior wear resistance over long duty cycles.
- 180° Wide Angular Deflection: Offers extended servo throw needed for aggressive 3D aerobatic maneuvers and robotic joint articulation.
- Strict Quality Assurance: Built under Shenzhen Wan Yuan Transmission’s ISO 9001 quality management system for consistent production reliability.
Technical Specifications
| Weight | 8.5g / 0.30 oz (excluding cable & accessories) |
| Dimensions | 23.0mm × 11.5mm × 24.0mm (0.9" × 0.45" × 0.94") |
| Operating Voltage | 4.8V – 6.0V DC |
| Operating Travel / Angle | 180° Neutral Control (900µs – 2100µs) |
| Gear Train Material | Precision Machined Brass Metal Gears |
| Operating Speed (4.8V) | 0.12 sec / 60° |
| Operating Speed (6.0V) | 0.10 sec / 60° |
| Stall Torque (4.8V) | 1.60 kg.cm (22.2 oz.in) |
| Stall Torque (6.0V) | 2.00 kg.cm (27.7 oz.in) |
