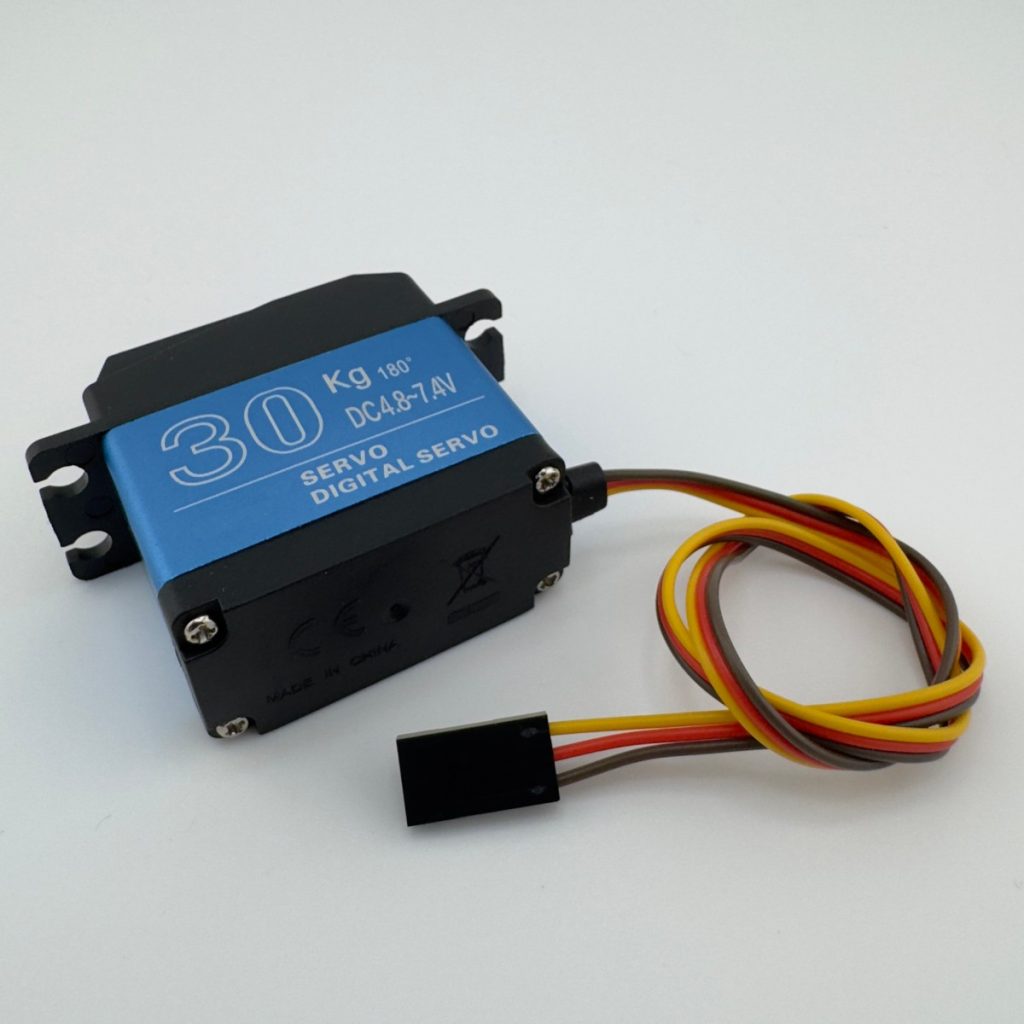

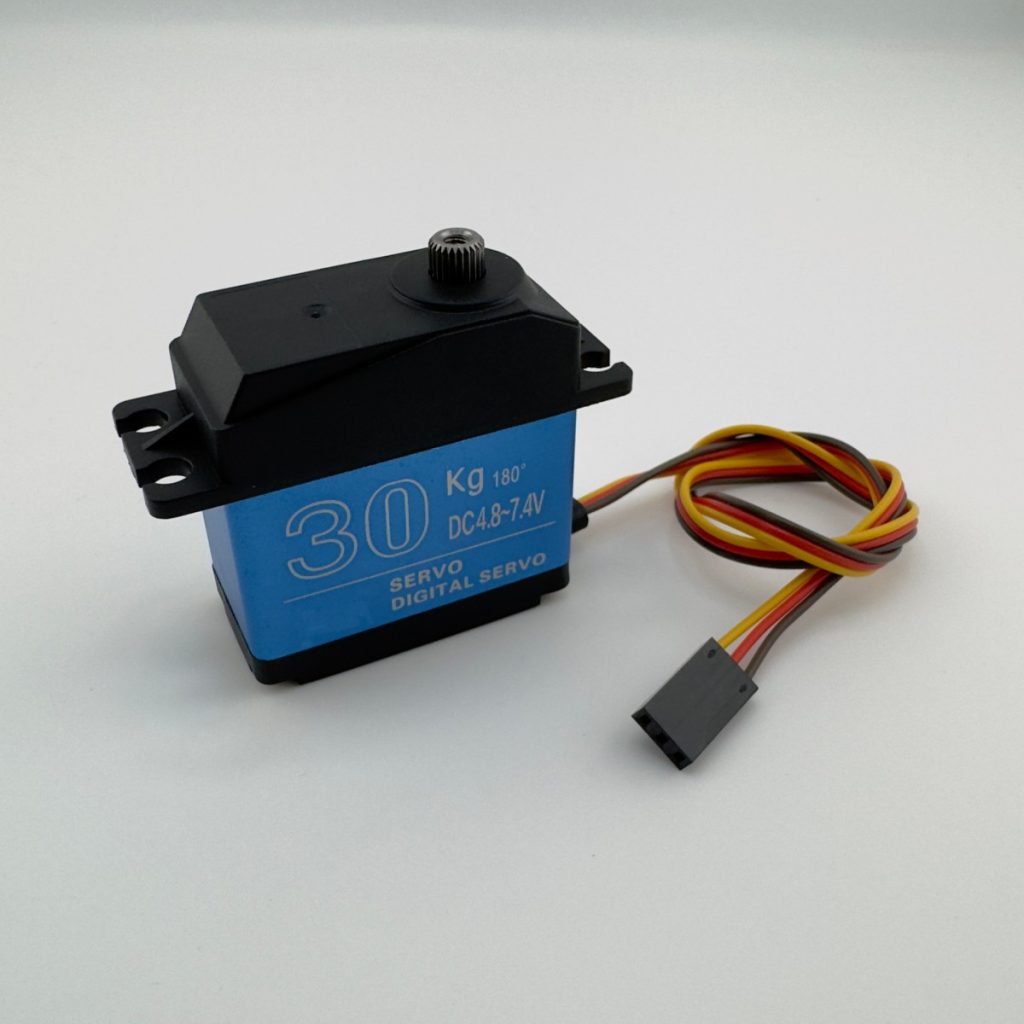

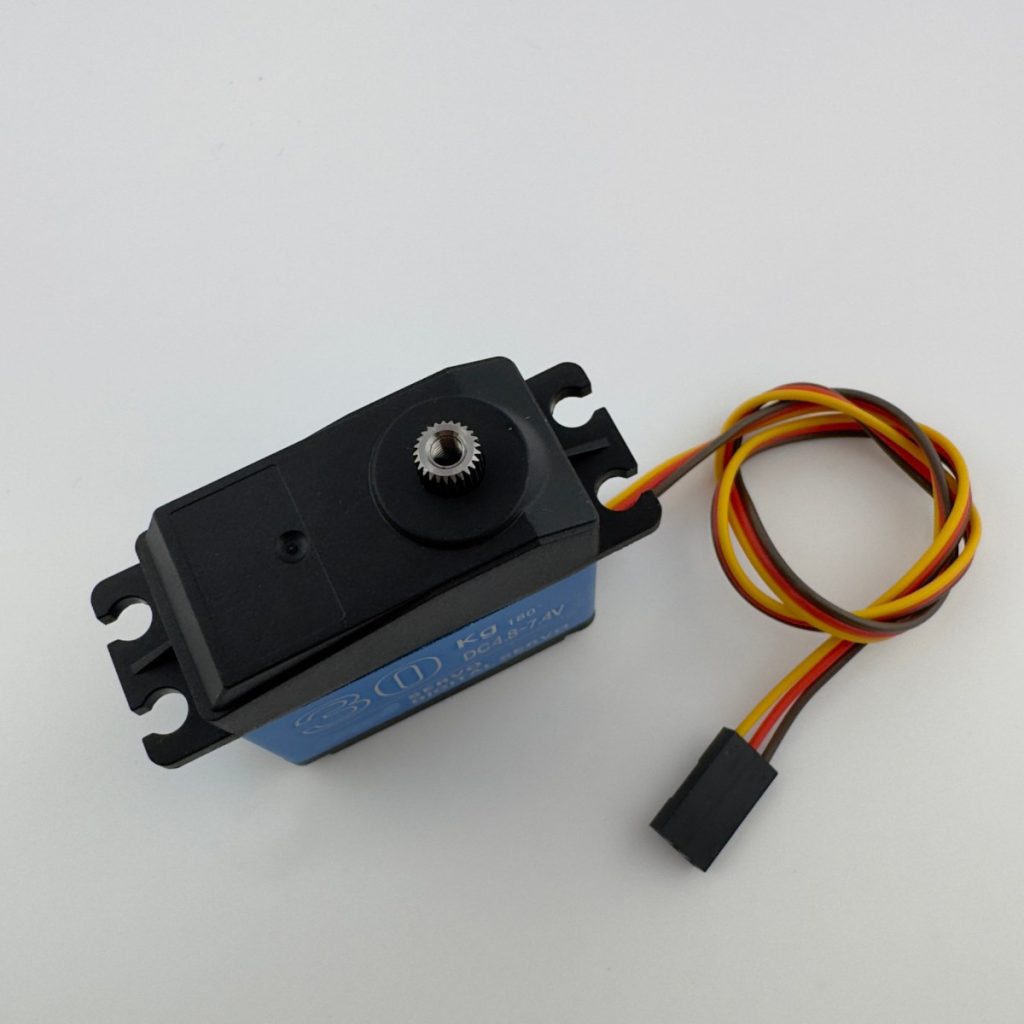

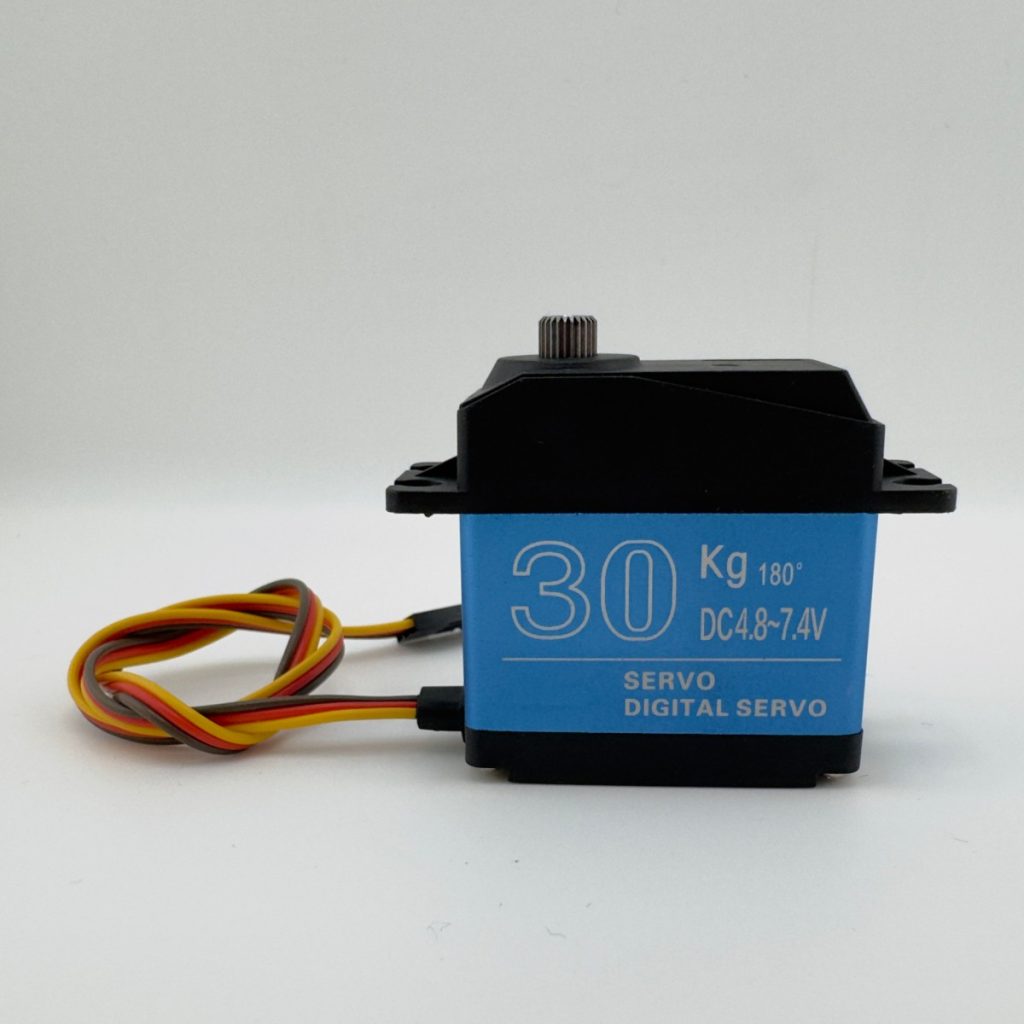

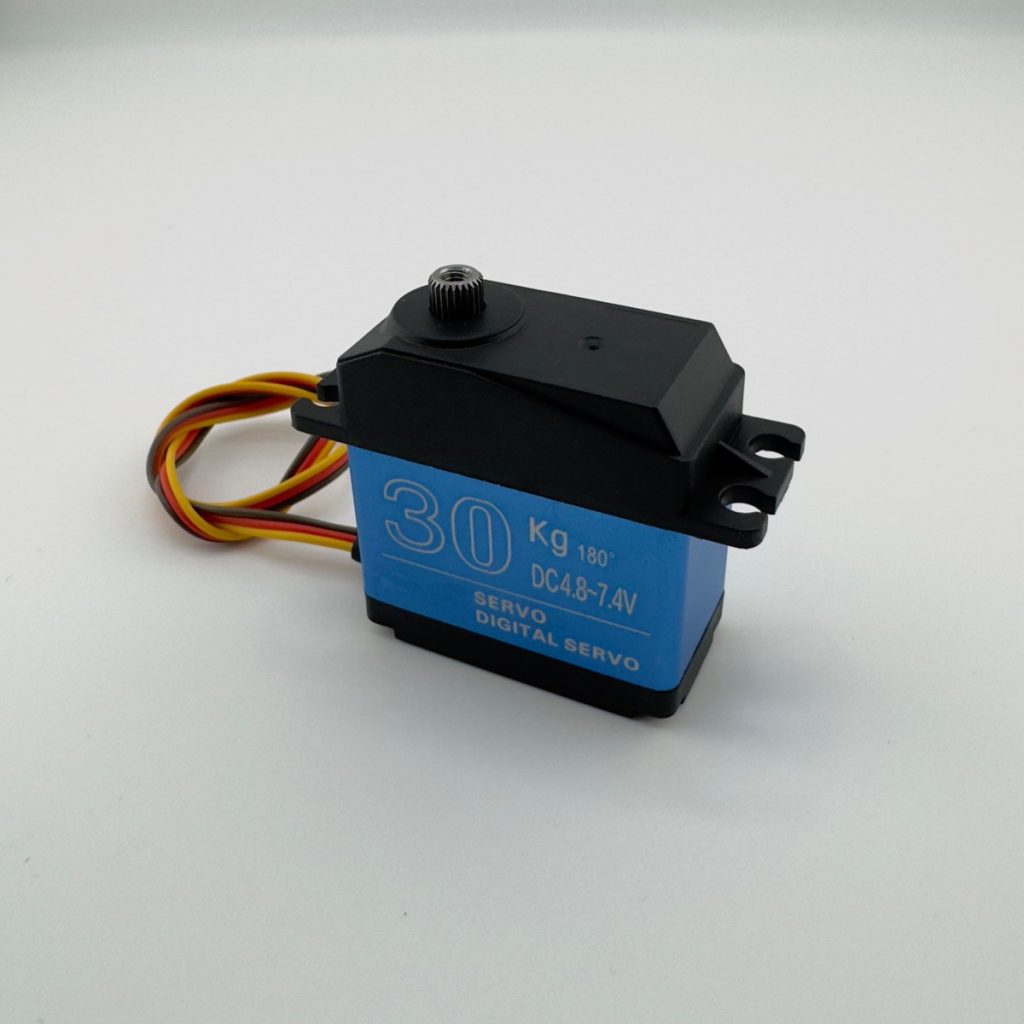

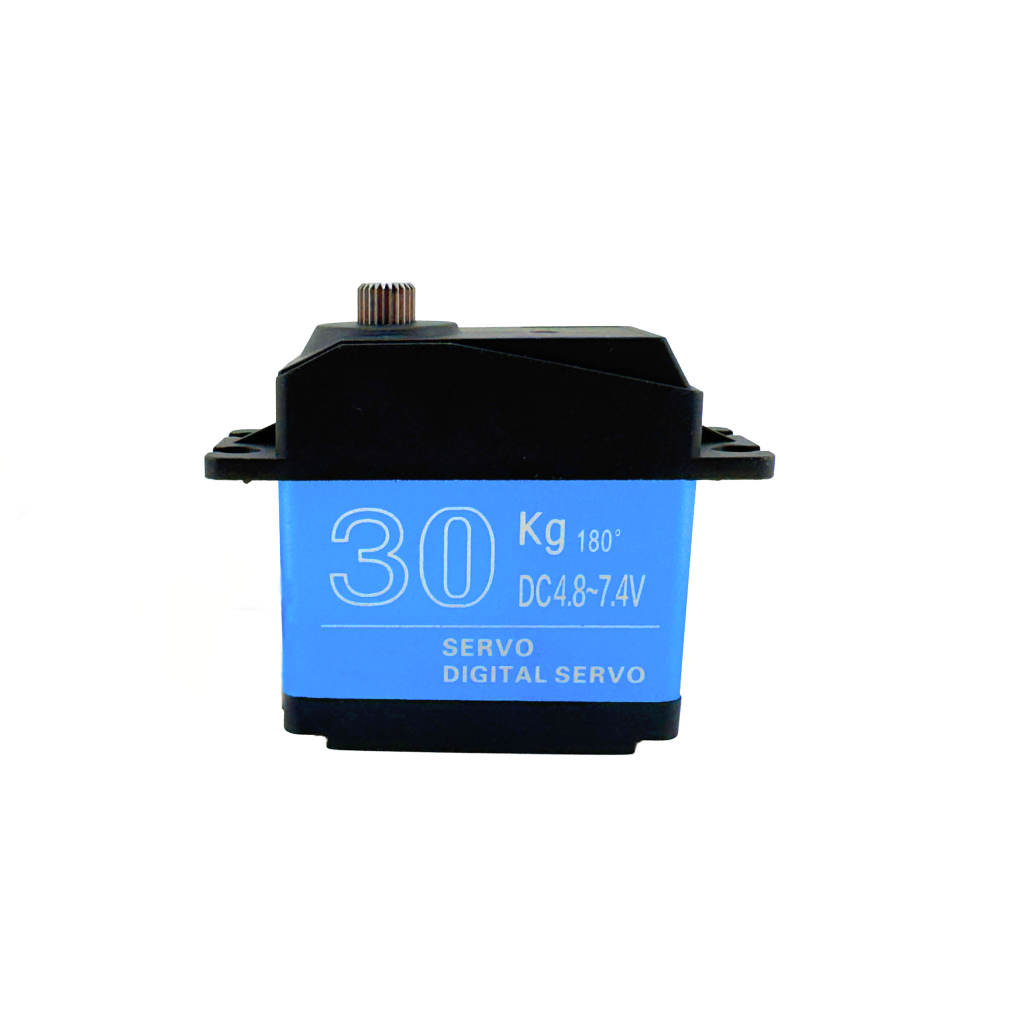

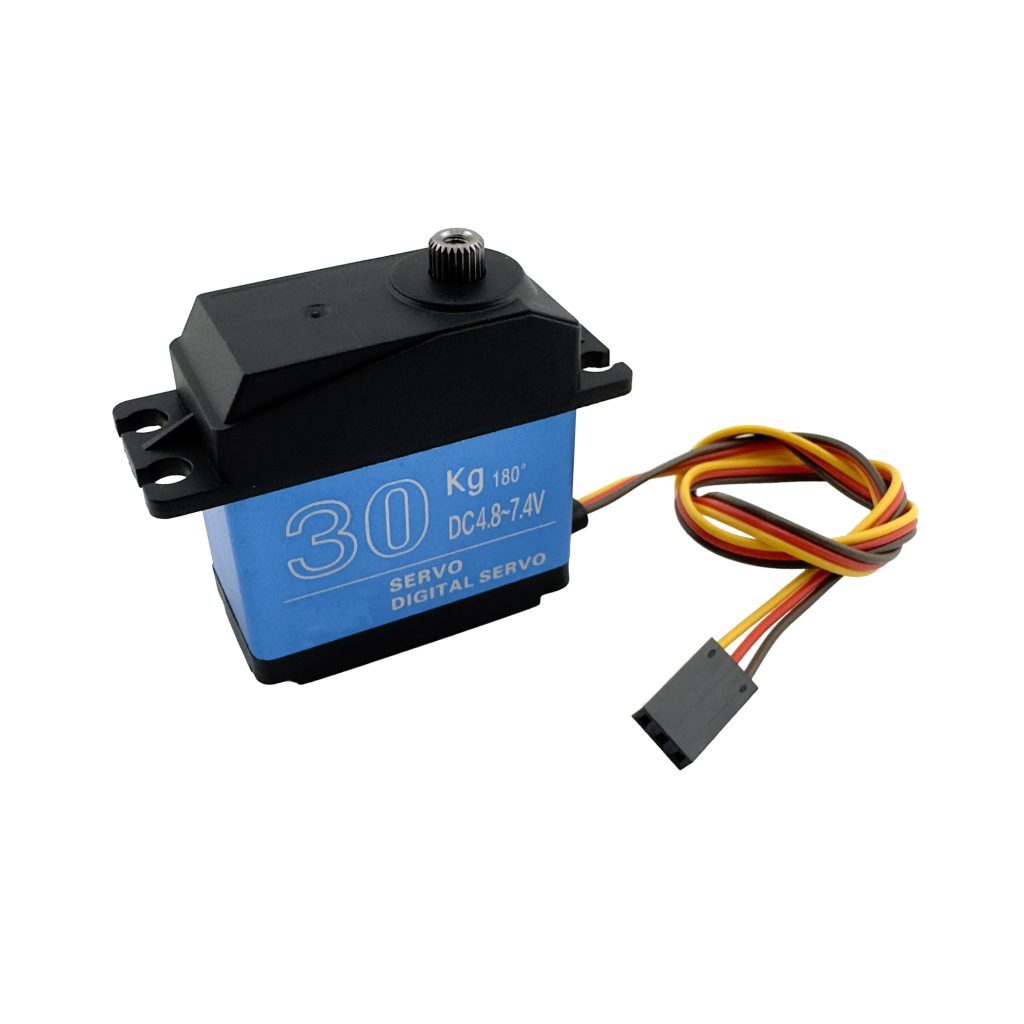

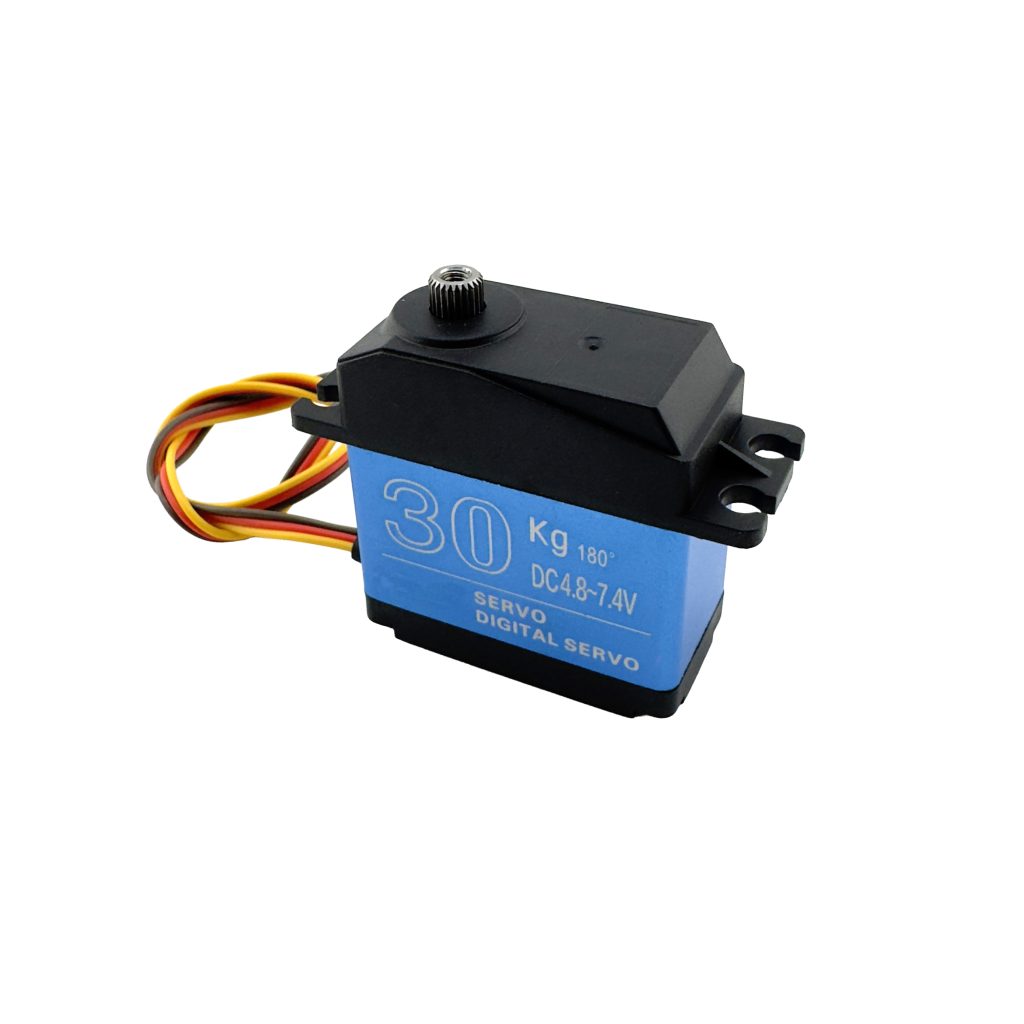

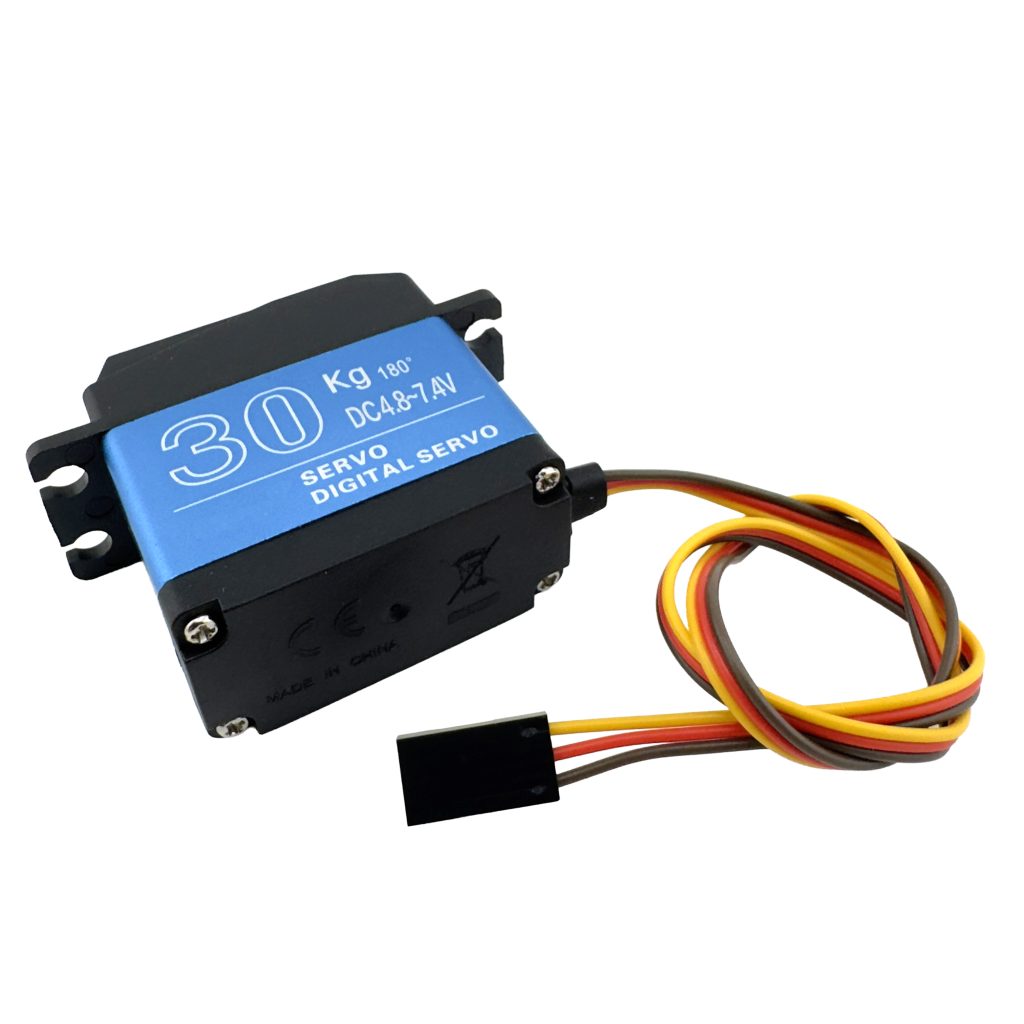

WY-S030 30g Blue CNC Aluminum Case Steel Gear Digital Servo (180°)

Model: DS30-SG

Product Highlights

Anodized blue CNC aluminum middle heatsink case for superior thermal dissipation
Ultra-hard stainless steel gear train providing maximum wear resistance and anti-strip protection
High-performance coreless motor delivering up to 6.5 kg.cm stall torque at 7.4V
Advanced digital IC driver ensuring zero deadband, sharp responsiveness, and precise 180° control
HV 2S LiPo direct compatibility (4.8V to 7.4V range) without needing extra BEC regulators
250mm flexible lead with standard 3-pin JR connector for universal receiver compatibility

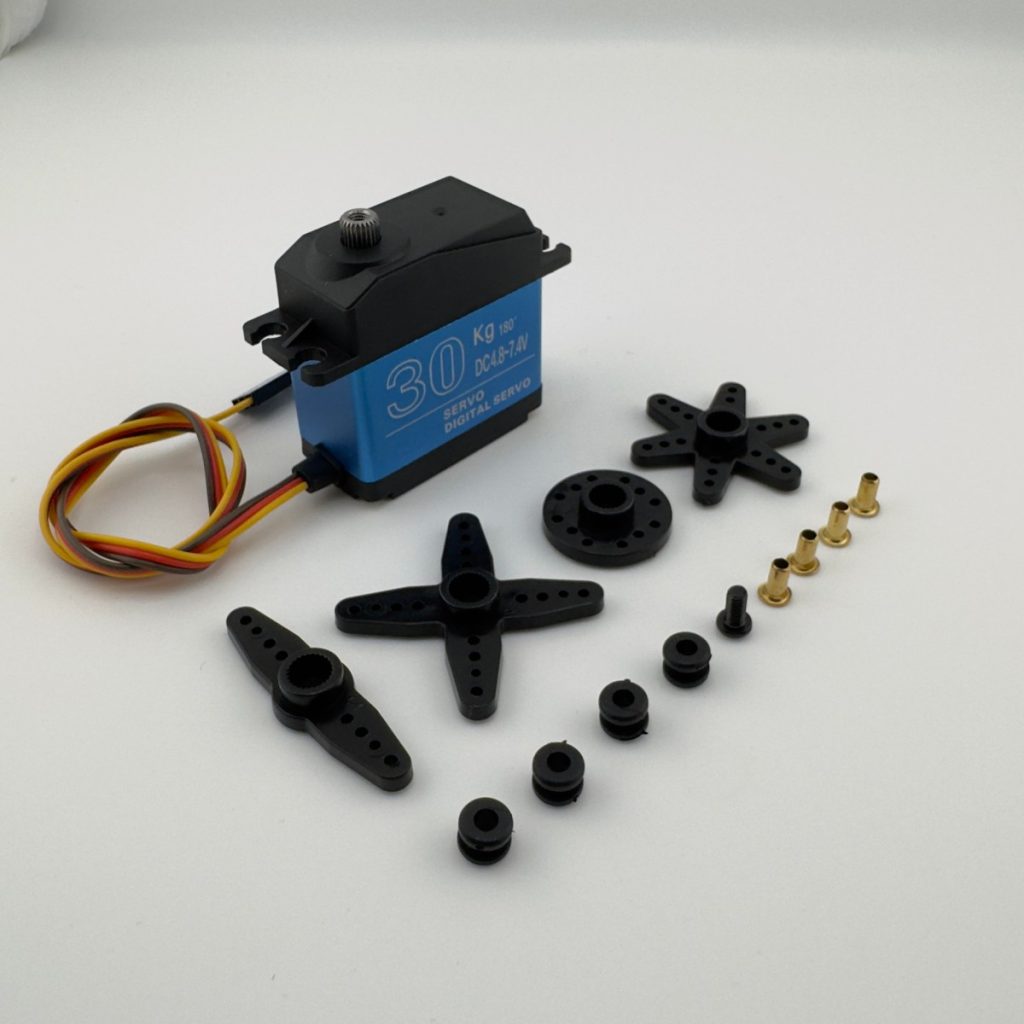

Complete heavy-duty hardware mounting pack included with multiple servo horns and dampening grommets
ISO 9001 certified manufacturing and strict quality control by Wan Yuan Transmission

Parameters	Specifications
Weight	30.0g ± 0.5g (1.06 oz)
Dimensions	35.5mm × 15.0mm × 30.0mm
Operating Voltage	4.8V – 7.4V DC (2S LiPo direct capability)
Operating Travel / Angle	180° Neutral Control (900µs – 2100µs)
Operating Speed (6.0V)	0.11 sec / 60°
Operating Speed (7.4V)	0.09 sec / 60°
Stall Torque (6.0V)	5.20 kg.cm (72.2 oz.in)
Stall Torque (7.4V)	6.50 kg.cm (90.2 oz.in)
