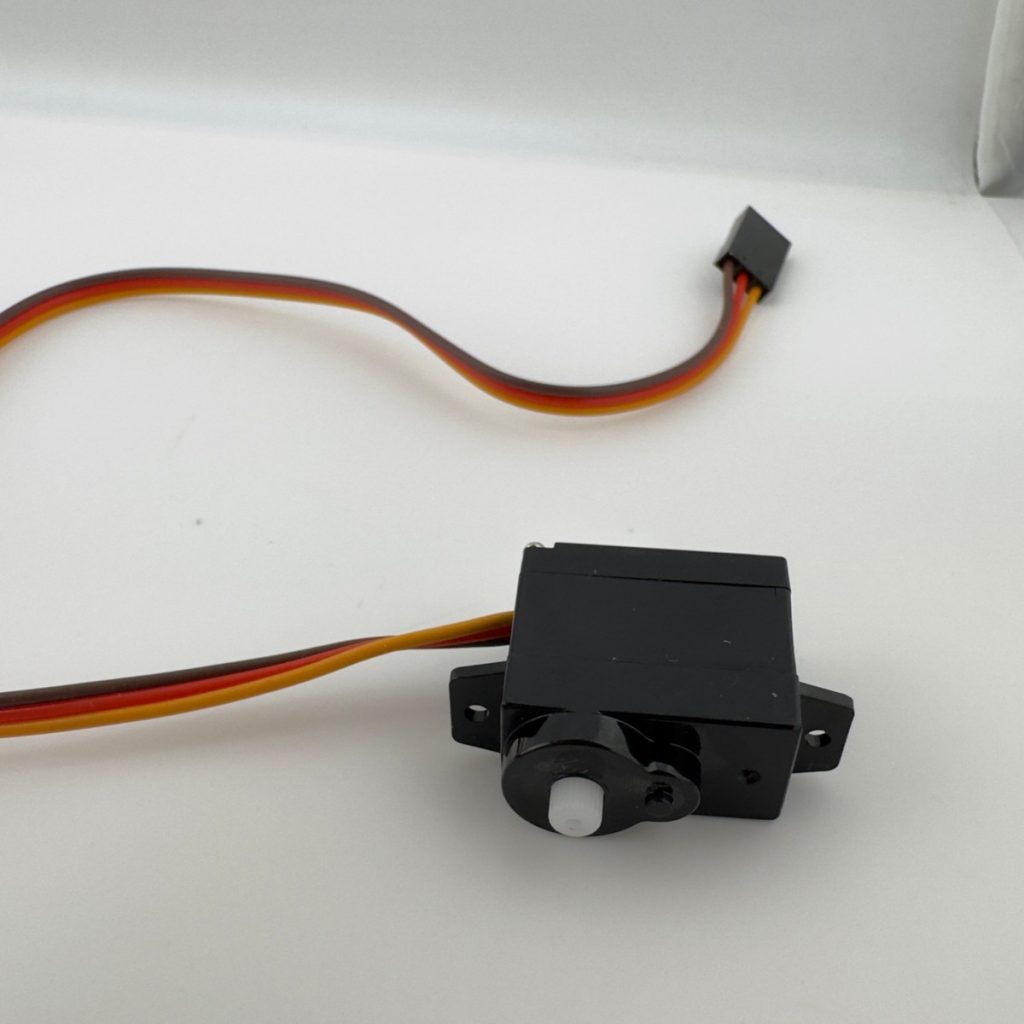

5g Micro Digital Plastic Gear Servo (180° Rotation)
- · Weight: 5.0g ± 0.3g (excluding cable & accessories)
- · Dimensions: 21.3mm × 11.5mm × 22.0mm
- · Operating Voltage: 3.7V – 6.0V DC (1S - 2S LiPo BEC compatible)
- · Operating Travel / Angle: 180° Neutral Control (900µs – 2100µs)
- · Operating Speed (4.8V): 0.10 sec / 60°
- · Operating Speed (6.0V): 0.08 sec / 60°
- · Stall Torque (4.8V): 0.80 kg.cm (11.1 oz.in)
- · Stall Torque (6.0V): 0.95 kg.cm (13.2 oz.in)
Product Overview
Shenzhen Wan Yuan 5g Micro Digital Plastic Gear Servo (180° Rotation)
The WY-S005 5g Micro Digital Servo is engineered by Shenzhen Wan Yuan Transmission Co., Ltd. specifically for micro RC aircraft, indoor 3D foam flyers, park flyers, and micro-robotic actuators. Combining a compact 5-gram footprint with a digital control circuit, the WY-S005 delivers smooth 180-degree angular travel, excellent centering accuracy, and fast response times.
High-Precision Digital Processing & Durable Nylon Gears
Constructed with high-toughness, wear-resistant engineered plastic gears and driven by a micro coreless motor, this servo maintains ultra-low operating noise and minimal backlash. Wan Yuan’s digital signal processing chip ensures high holding torque and low latency, making it capable of executing precise surface movements during aggressive 3D flight maneuvers.
Flexible Integration & Hardware Package

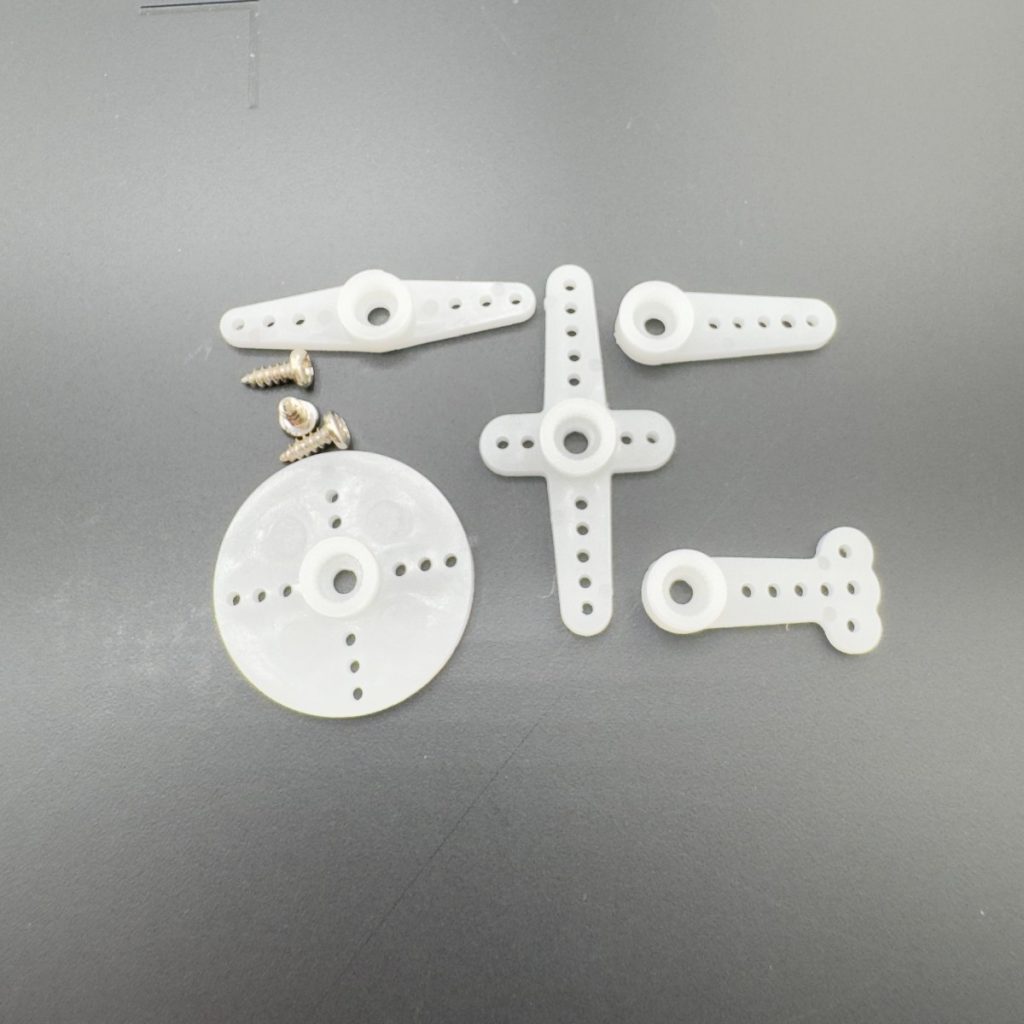

Pre-wired with an 180mm flexible lead and a standard 3-pin JR connector, the WY-S005 offers plug-and-play compatibility with Spektrum, Futaba, FrSky, Flysky, and other mainstream receiver platforms. Each unit comes with a full accessories set including various mounting horns and screws for fast installation.
Key Advantages & Engineering Highlights
- 180° Wide Angular Travel: Offers extended deflection angles suited for 3D control surfaces and custom mechanical linkages.
- Optimized Power Efficiency: Runs smoothly across 3.7V to 6.0V, supporting direct single-cell LiPo (1S) battery buses or 5V BEC power systems.
- Strict Quality Assurance: Backed by Shenzhen Wan Yuan Transmission’s ISO 9001 manufacturing and testing standards for consistent reliability.
Technical Specifications
| Weight | 5.0g ± 0.3g (excluding cable & accessories) |
| Dimensions | 21.3mm × 11.5mm × 22.0mm |
| Operating Voltage | 3.7V – 6.0V DC (1S - 2S LiPo BEC compatible) |
| Operating Travel / Angle | 180° Neutral Control (900µs – 2100µs) |
| Operating Speed (4.8V) | 0.10 sec / 60° |
| Operating Speed (6.0V) | 0.08 sec / 60° |
| Stall Torque (4.8V) | 0.80 kg.cm (11.1 oz.in) |
| Stall Torque (6.0V) | 0.95 kg.cm (13.2 oz.in) |
