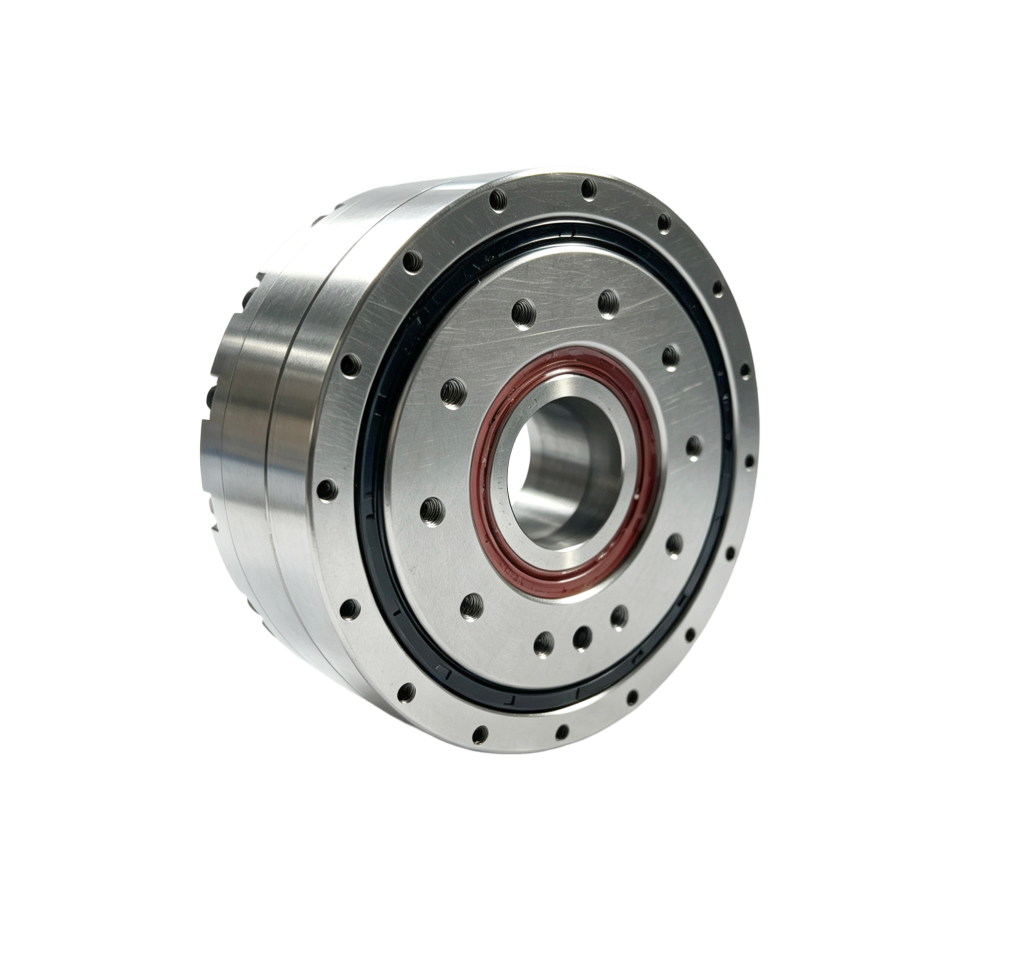

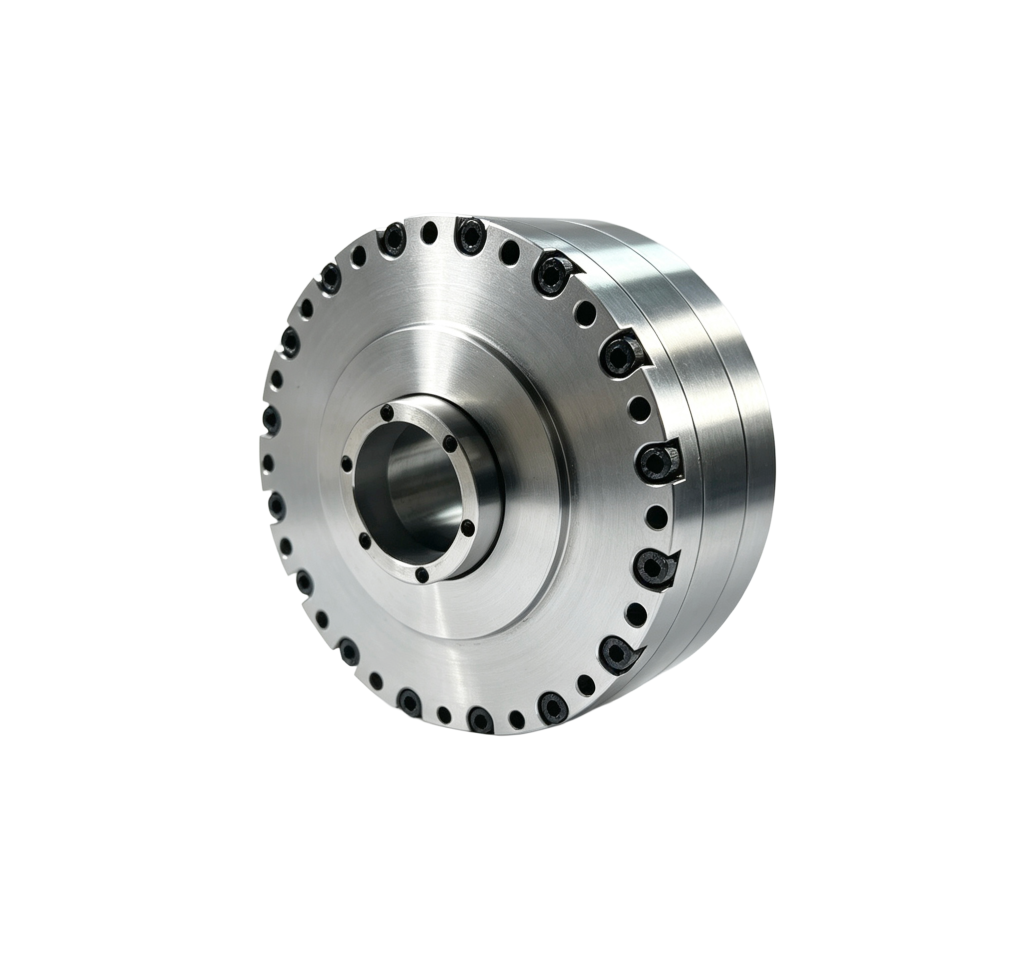

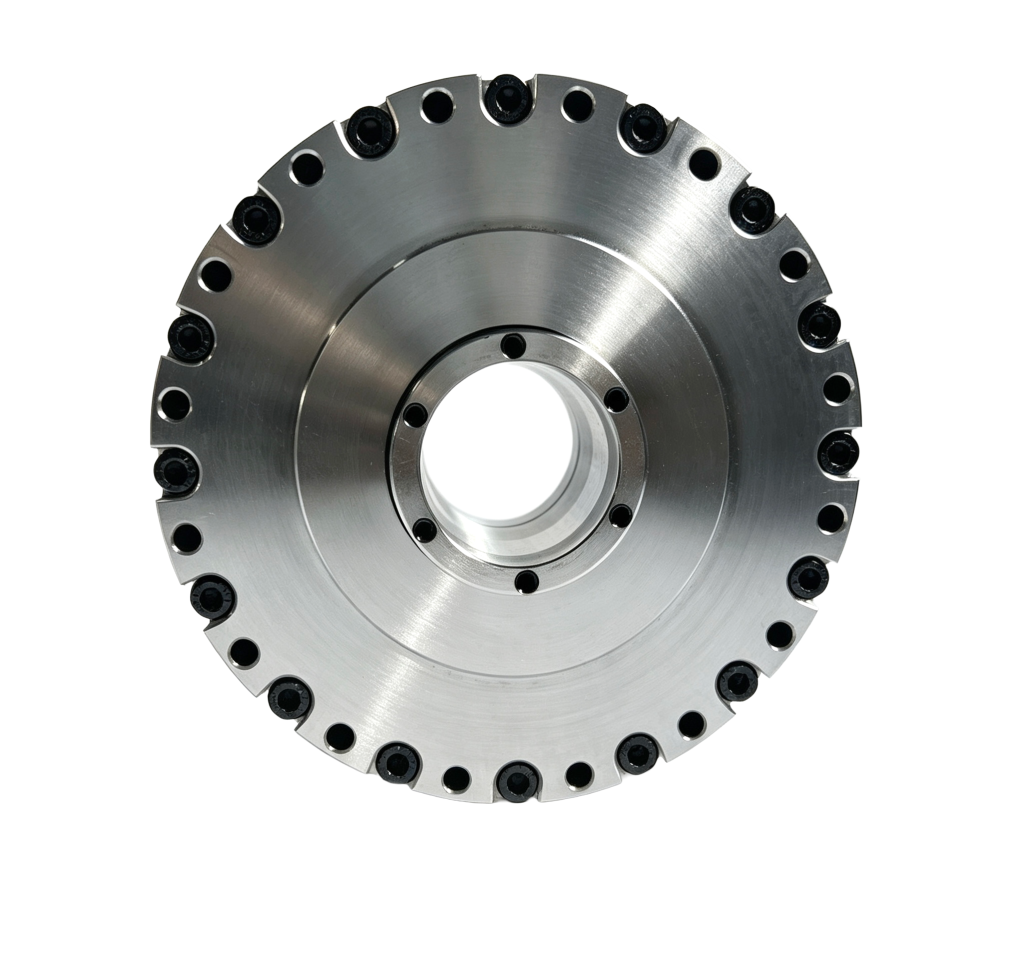

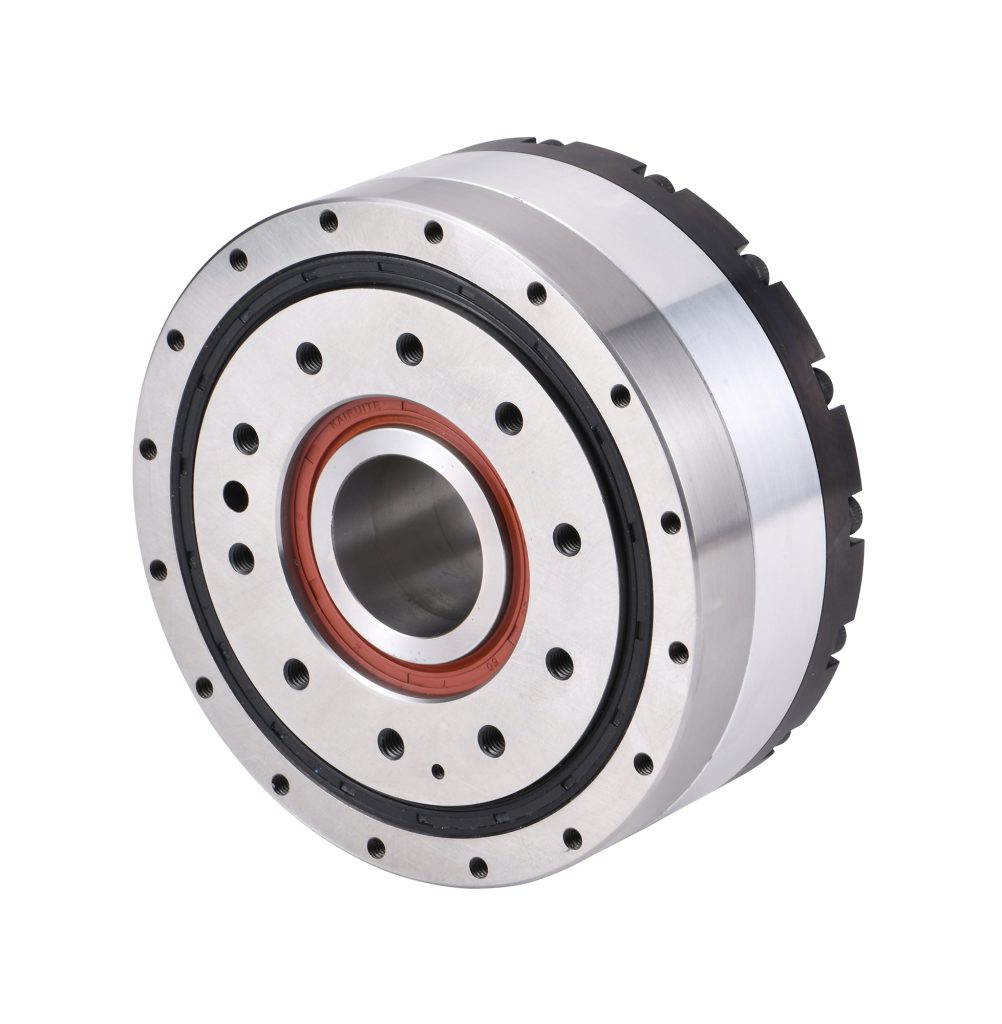

H25 High Precision Cycloidal Gear Reducer 20000h Lifetime 80% Full Load Efficiency IP65 55~130Nm Rated Output Torque

Model: WYOO-H25

This cycloidal reducer delivers ultra low backlash high torque and outstanding overload capability. It features IP65 protection wide temperature range maintenance free lubrication and lightweight compact flange design, ideal for robot joints and precision servo automation.

Product Highlights

Ultra precise positioning Backlash less than 1 arcmin for robot joints and precision automation
Long service life 20000 hours maintenance free synthetic grease lubrication
High torque overload resistance Rated torque 55 to 130 Nm 3 times overload capacity Ratios 25 31 51 81 101
High load Max radial force 6.5 kN axial force 8.5 kN
High input speed Rated 3000 rpm max 6000 rpm for high speed servo motors
80% full load efficiency low power loss
IP65 protection working temperature from -25℃ to +90℃ for harsh conditions
Suitable for robot joints precision positioning automation equipment

Parameters	Specifications
Type	Cycloidal Reducer
Output Torque	55-130Nm
Gear Ratio	21/31/51/81/121
Backlash(P0)	<1 arcmin
Backlash(P1)	<3 arcmin
Full Load Efficiency	80%
Input Speed	3000RPM
Max Input Speed	6000rpm
Mounting Orientation	Any
Applicable Industries	Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Other
Place of Origin	Guangdong, China
Brand Name	WYOO
Weight (kg)	1.13KG
Customized Support	OEM, ODM
Ingress Protection	Alloy Steel
Life Span	20000h
Warranty	1 YEAR
Lubrication	Synthetic Grease (Long-life)
Application	Humanoid Robotics, Industrial Robotics, AGV Cars and so on
