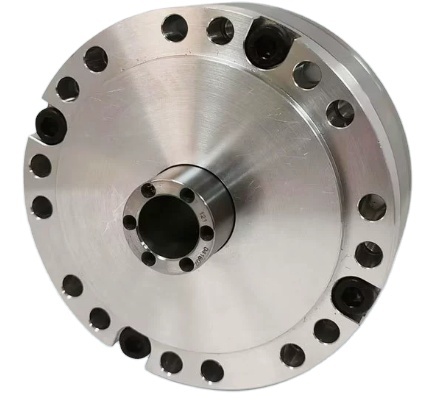

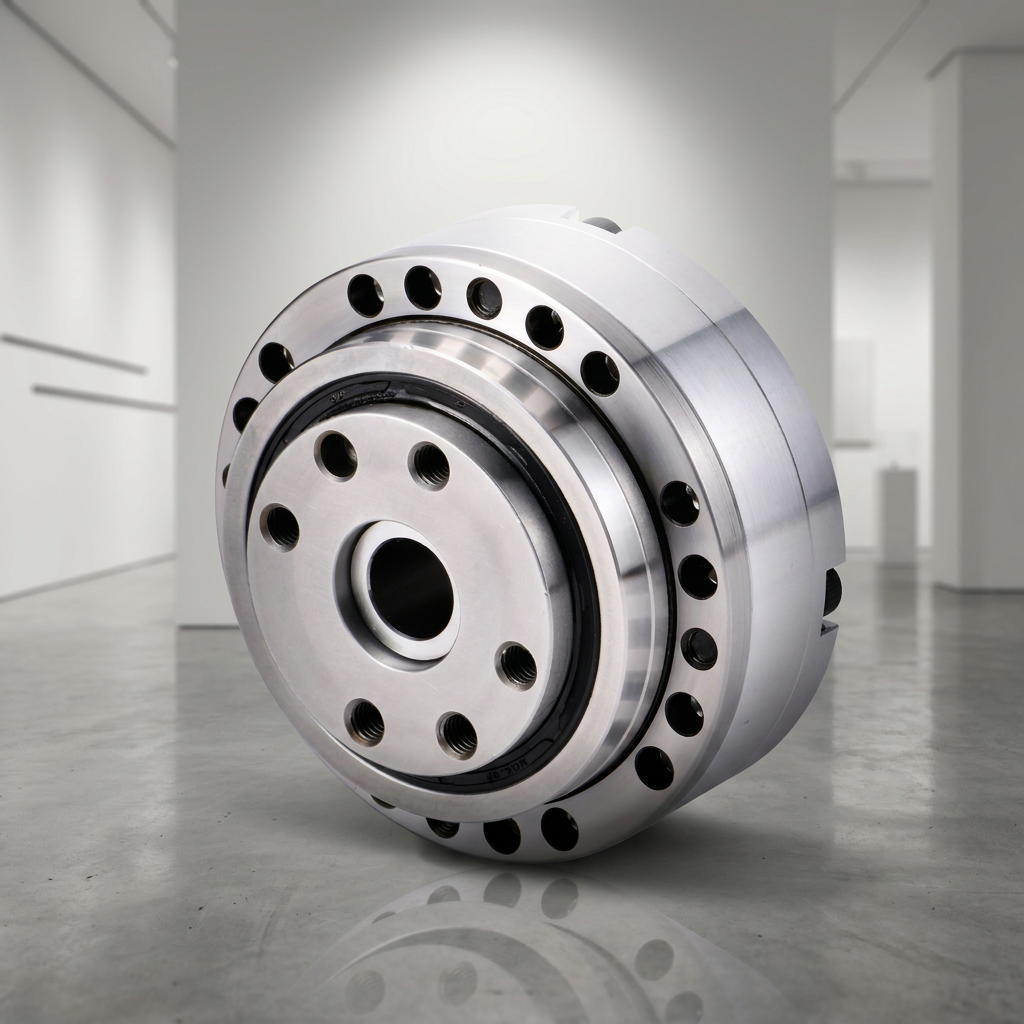

H17 Robot Joint Cycloidal Reducer Low Backlash High Load Capacity Precision Gearbox

Model: WYOO-H17

Product Highlights

WFH series are high-precision reducers with hollow shaft design.
Cables, compressed air pipes, drive shafts and other components can pass through the hollow shaft.
The WFH series features full sealing and is pre-filled with grease.
Equipped with precision reduction mechanism and radial & axial roller bearings, this reducer adopts a unique design that allows loads to act directly on the output flange or housing without additional bearings.

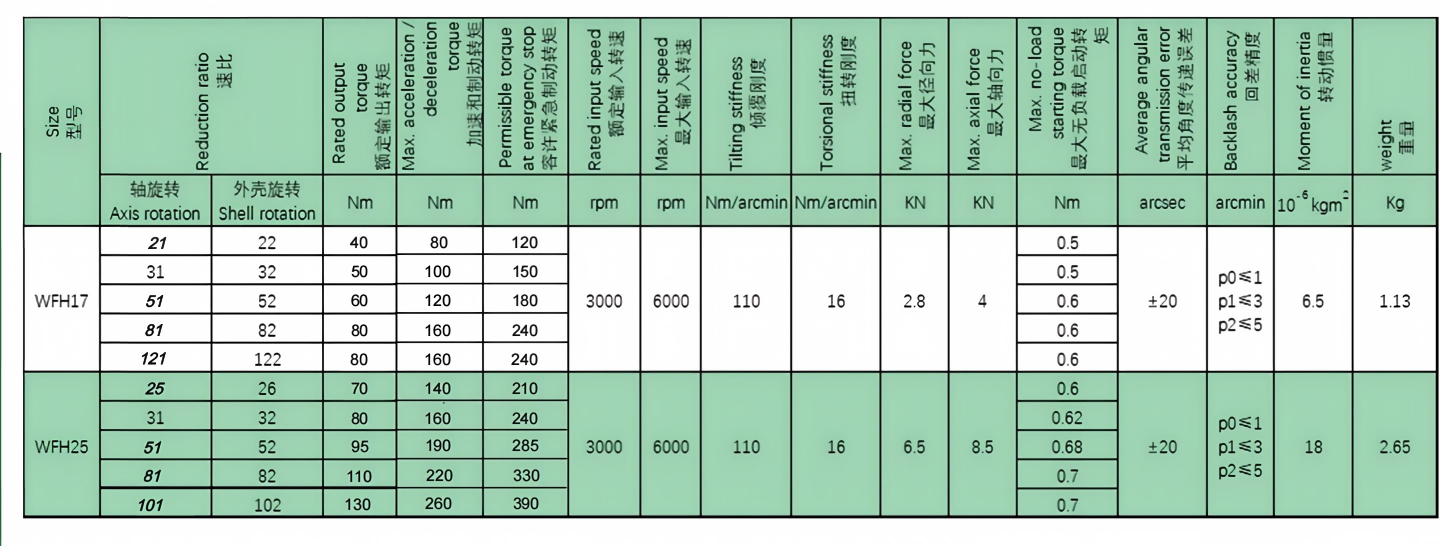

Parameters	Specifications
Model	WYOO-H17
Output Torque	40~130Nm
Gear Ratio	21/31/51/81
Maximum Input Horsepower	20 HP
Mounting Orientation	Vertical
Gearing Arrangement	Cycloidal
Applicable Industries	Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Other
Customized Support	OEM, ODM
Warranty	1 YEAR
Input Speed	3000~6000RPM
Output Speed	24`400 RPM
Place of Origin	Guangdong, China
Brand Name	WYOO
Weight (kg)	1.13 KG
Product name	Cycloidal Reducer Flanged for Humanoid Robotics
Type	Cycloidal Reducer
Diamater	Different
Gears Style	Cycloidal gear
Housing Material	Alloy Steel
Life Span	20000H
Usage	Humanoid Robotics, Industrial Robotics, AGV Cars and so on
Selling Units	Single item
Single package size	18X12X10 cm
Single gross weight	2.000 kg
