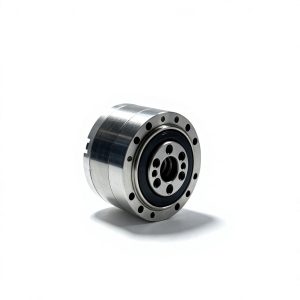

WYOOH17 Robot Joint Cycloidal Reducer Low Backlash High Load Capacity Precision Gearbox for Humanoid Robot

New

WYOOH17 Robot Joint Cycloidal Reducer Low Backlash High Load Capacity Precision Gearbox for Humanoid Robot

Model: WYOO-17

High Rigidity: Ensures durability and precision in humanoid robotics applications.
Maintenance-Free: Reduces maintenance costs and downtime for industrial use.
20000 Hours Life Span: Offers extended operational reliability for long-term projects.
Customizable Reduction Ratio: Tailors performance to specific robotic needs.
Alloy Steel Housing: Provides robustness and resistance to wear.

Product Highlights

The WF series is a high-precision speed reducer with flange, available in a wide range of configurations.
It incorporates a precision reduction mechanism and radial-axial roller bearings.
Thanks to its unique design, loads can be applied directly to the output flange or housing without additional bearings.
Featuring a modular design, WF series high-precision reducers can be directly coupled with servo motors of any brand.

Applications

> Precision Robotics & Cobots
> Medical Devices & Surgical Systems
> Aerospace & Flight Actuators
> Automotive Electric Drive Systems
> Industrial Automation & AGV/AMR
> Semiconductor Handling Equipment
> CNC Machine Tool Feeding Units
> Precision Optical Positioning
> High-Speed Packaging Machinery

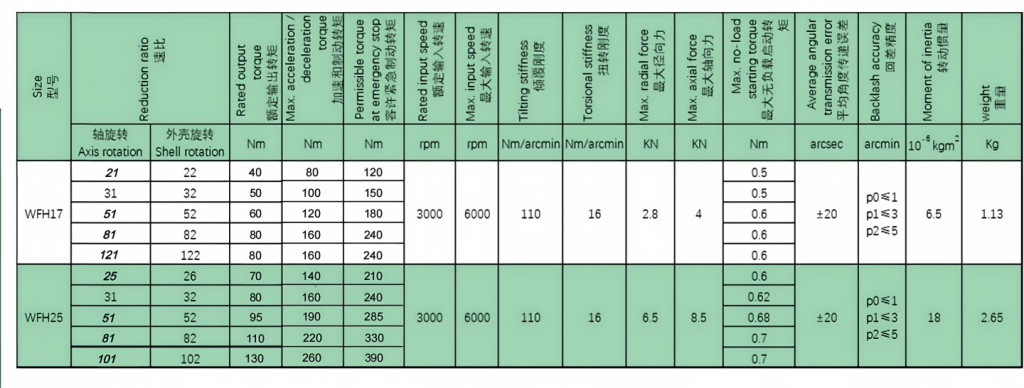

Technical Specifications

Parameters	Specifications
Type	Cycloidal Reducer
Gear Ratio	21/31/51/81/121
Input Speed	3000RPM
Max Input Speed	6000rpm
Output Torque	40~80Nm
Backlash(P0)	<1 arcmin
Backlash(P1)	<3 arcmin
Full Load Efficiency	80%
Mounting Orientation	Any
Weight (kg)	1.13KG
Warranty	1 YEAR
Life Span	20000h
Lubrication	Synthetic Grease (Long-life)
Place of Origin	Guangdong, China
Application	Humanoid Robotics, Industrial Robotics, AGV Cars and so on

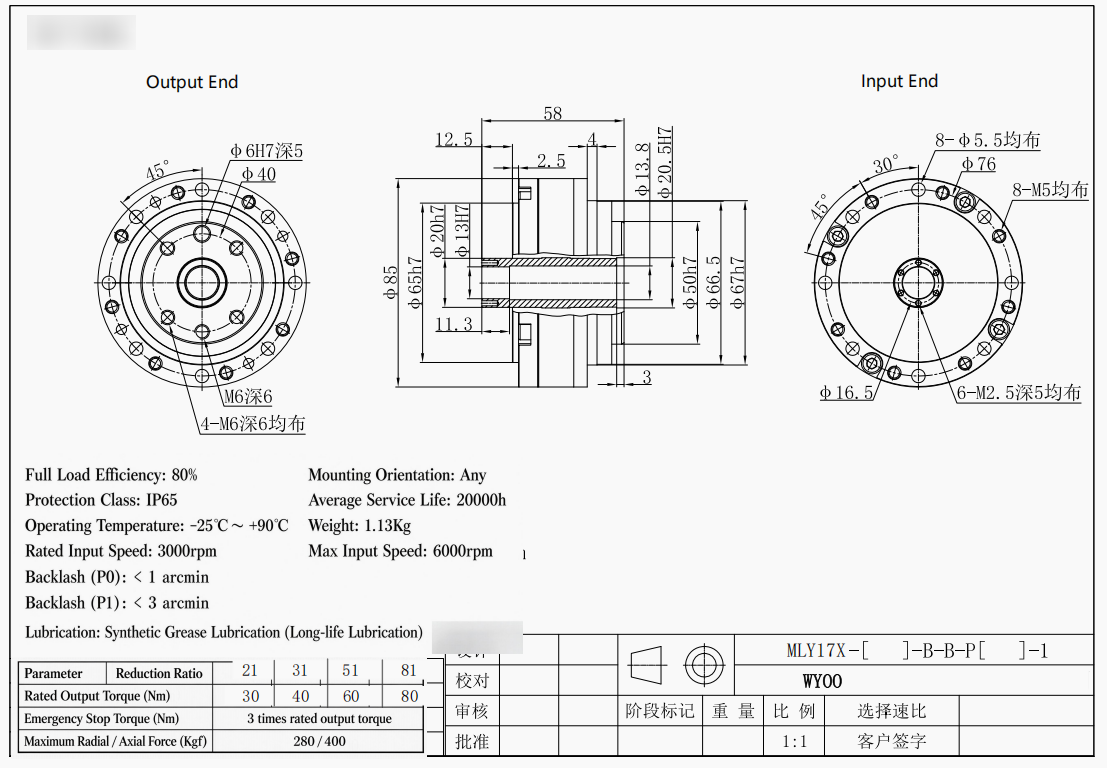

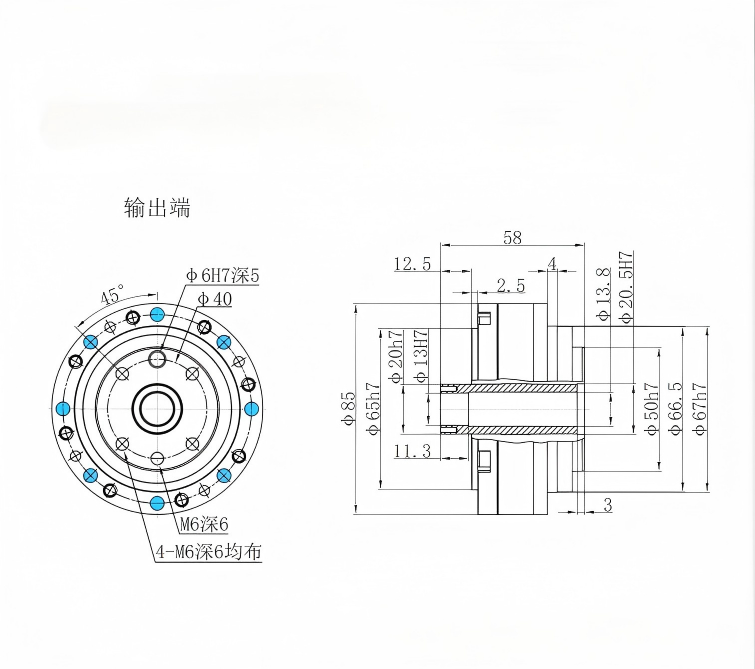

Dimensions & Technical Drawings
