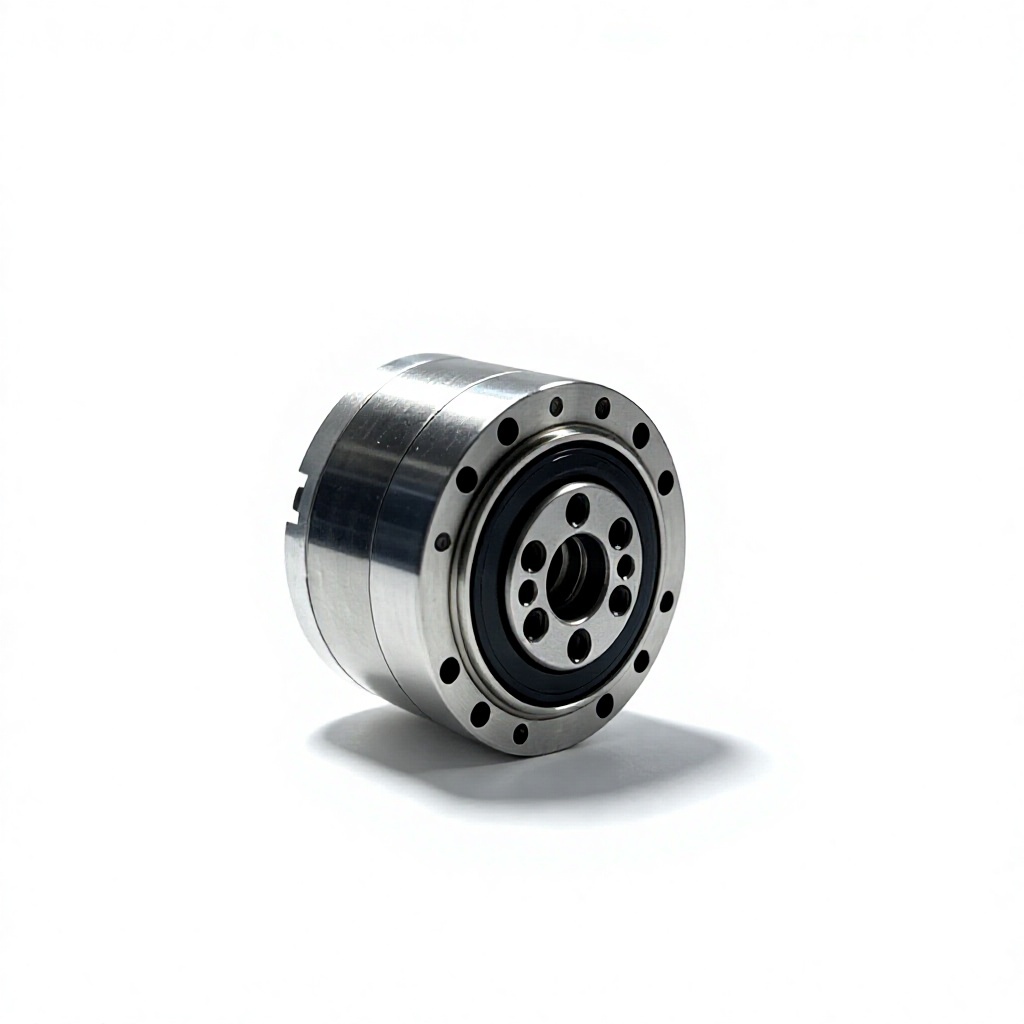

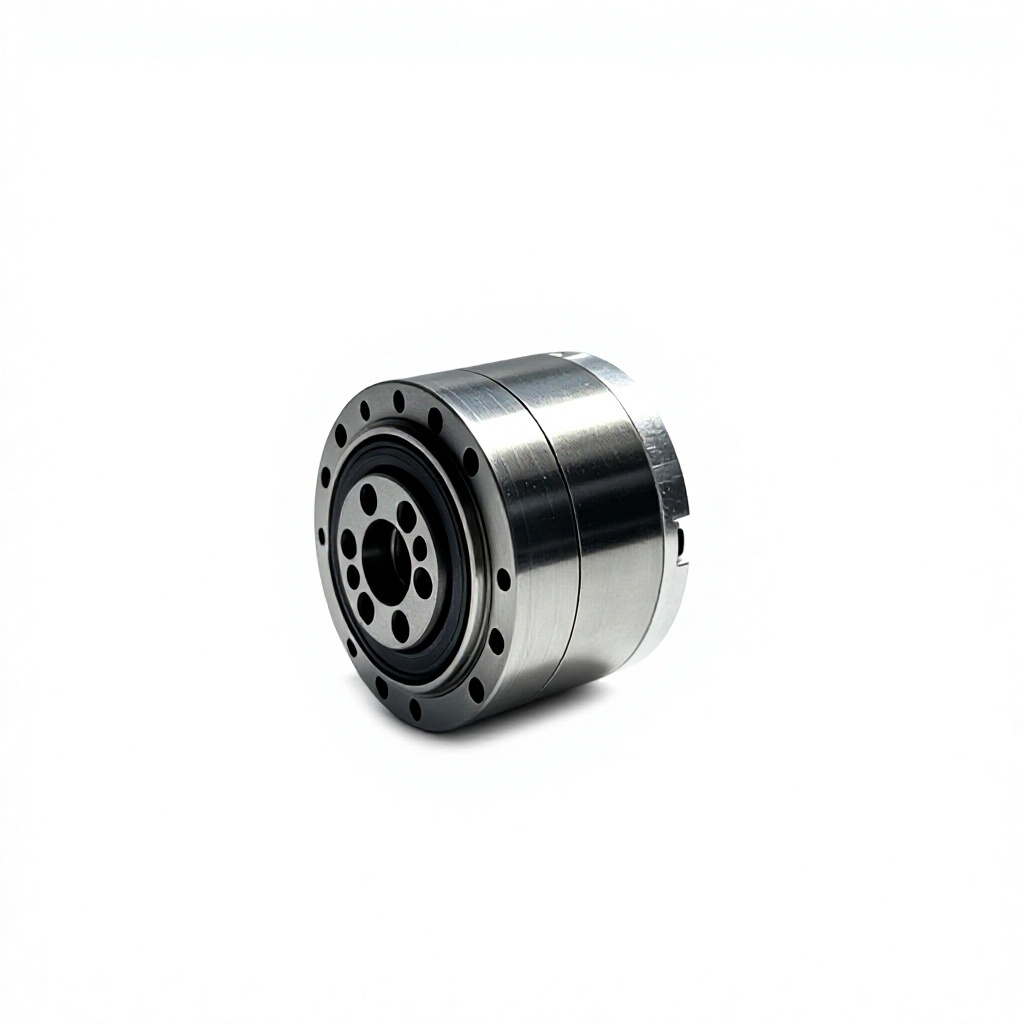

Ultra High Precision Cycloidal Reducer with Backlash Less Than 1 Arcmin IP65 Sealed Cycloidal Gearbox Output Torque 5Nm 8Nm 10Nm

New

Ultra High Precision Cycloidal Reducer with Backlash Less Than 1 Arcmin IP65 Sealed Cycloidal Gearbox Output Torque 5Nm 8Nm 10Nm

Model: WYOO-05

Ultra Low Backlash: <1 arcmin precision for high accuracy applications.
Robust Design: IP65 rated for dust and water resistance.
Wide Range Gear Ratios: Available in 11/21/51 for versatile use cases.
Efficient Performance: Full load efficiency up to 80%.
Long Lifespan: Average lifetime of 20000 hours.

Product Highlights

The WF series is a high-precision speed reducer with flange, available in a wide range of configurations.
It incorporates a precision reduction mechanism and radial-axial roller bearings.
Thanks to its unique design, loads can be applied directly to the output flange or housing without additional bearings.
Featuring a modular design, WF series high-precision reducers can be directly coupled with servo motors of any brand.

Applications

> Industrial Transmission Systems
> Robotic Joint & Articulation Drives
> Aerospace & Flight Control Units
> Automotive Powertrain & Steering
> Packaging & Automated Sorting Lines
> Heavy-Duty Lifting & Crane Hoists
> Precision Laser Cutting Motion Tables
> Wind Turbine Pitch & Yaw Drives
> Marine Winches & Deck Equipment

Technical Specifications

Parameters	Specifications
Input Speed	3000RPM
Max Input Speed	6000rpm
Gear Ratio	11 / 21 /51
Output Torque	5-10N.m
Backlash(P0)	<1 arcmin
Backlash(P1)	<3 arcmin
Lubrication	Synthetic Grease (Long-life)
Full Load Efficiency	80%
Ingress Protection	IP65
Mounting Orientation	Any Orientation
Average Lifetime	20000h
Warranty	1 Years
Place of Origin	Guangdong, China
Brand Name	WYOO
Working Temperature	-25 ℃ ~ +90℃
Applicable Industries	Robotics, Automation Equipment, Medical Devices, Semiconductor, AGV, Machine Vision, CNC, Intelligent Logistics >

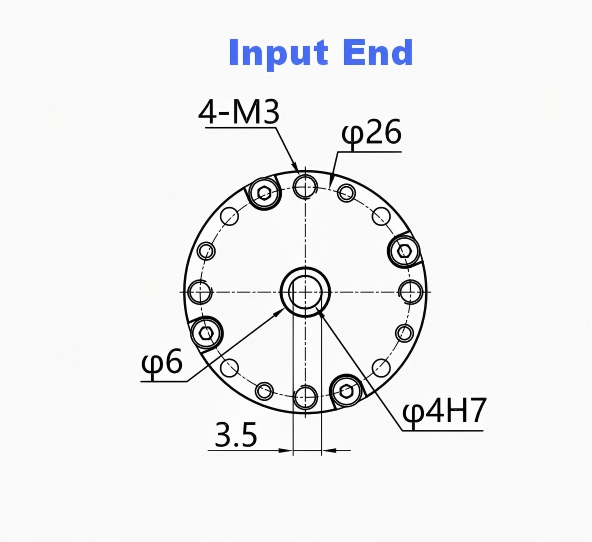

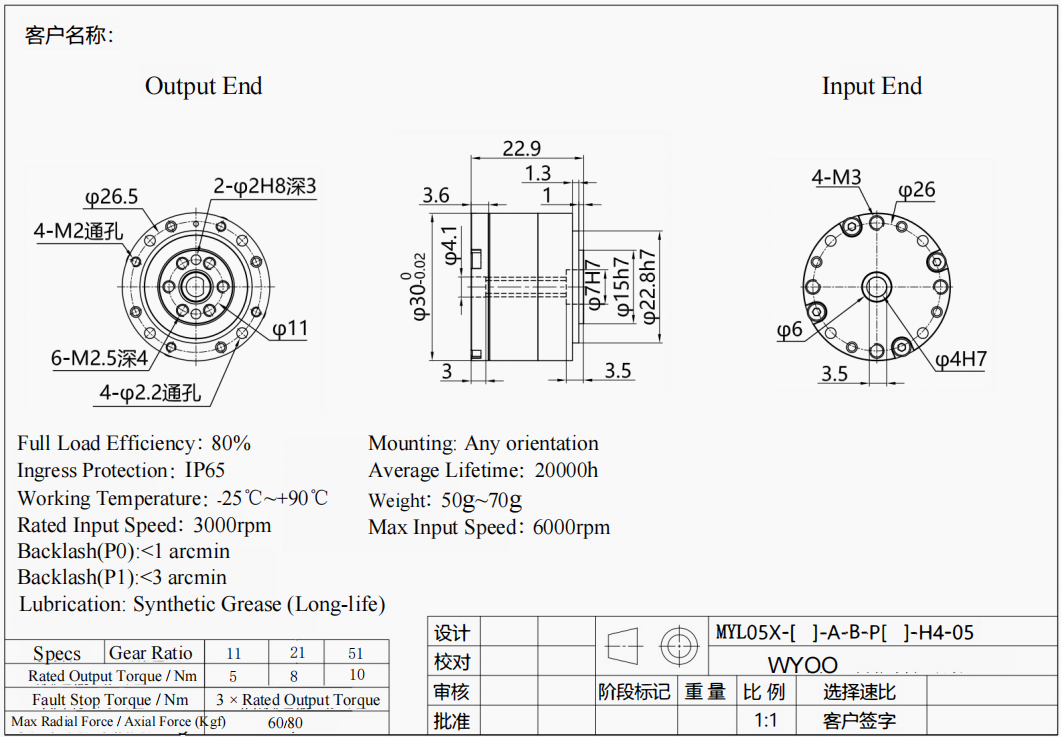

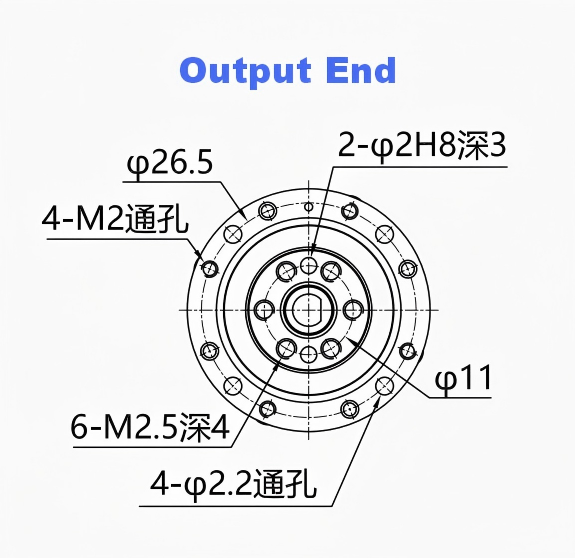

Dimensions & Technical Drawings

Why Choose Us

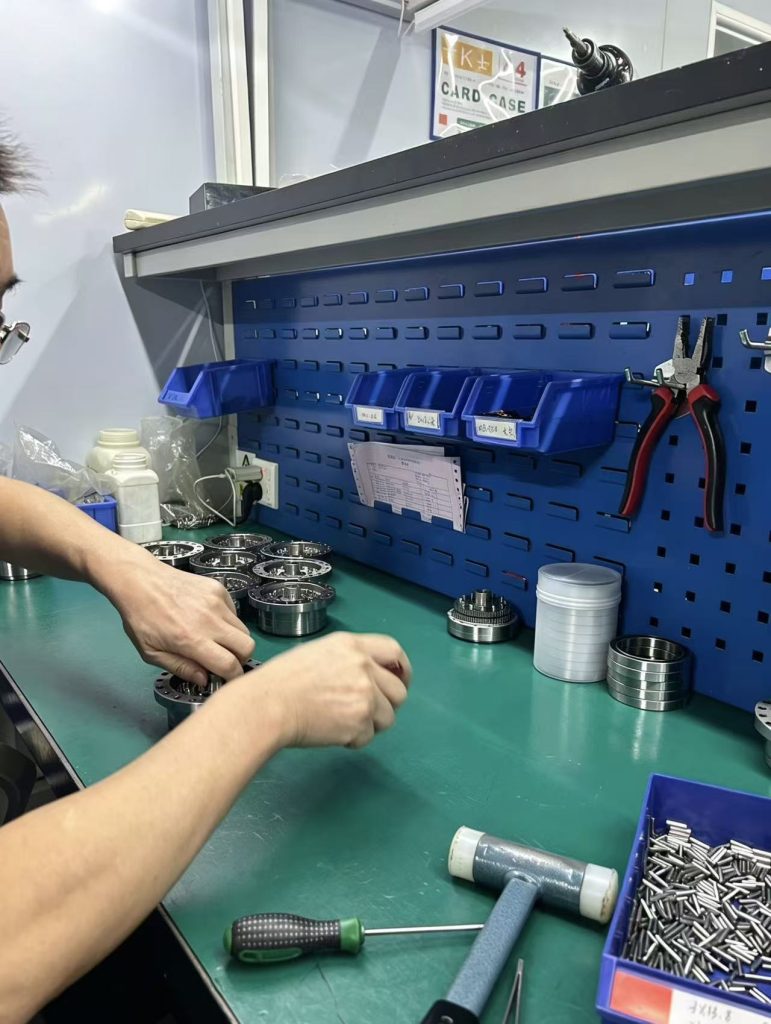

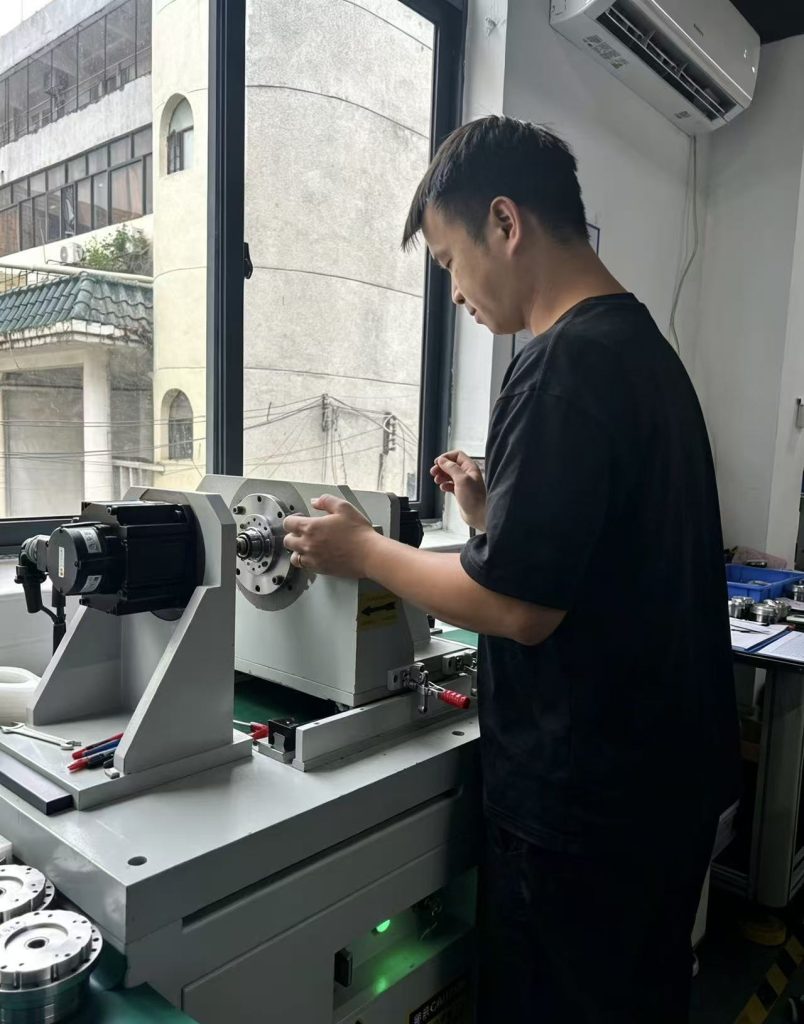

Factory Manufacturing Capabilities

Modern precision workshop, advanced CNC automated machining centers, and 100% full-inspection assembly lines.

International Certifications

Verified compliance with global standards, supporting smooth customs clearance and regulatory approvals across North America and Europe.
