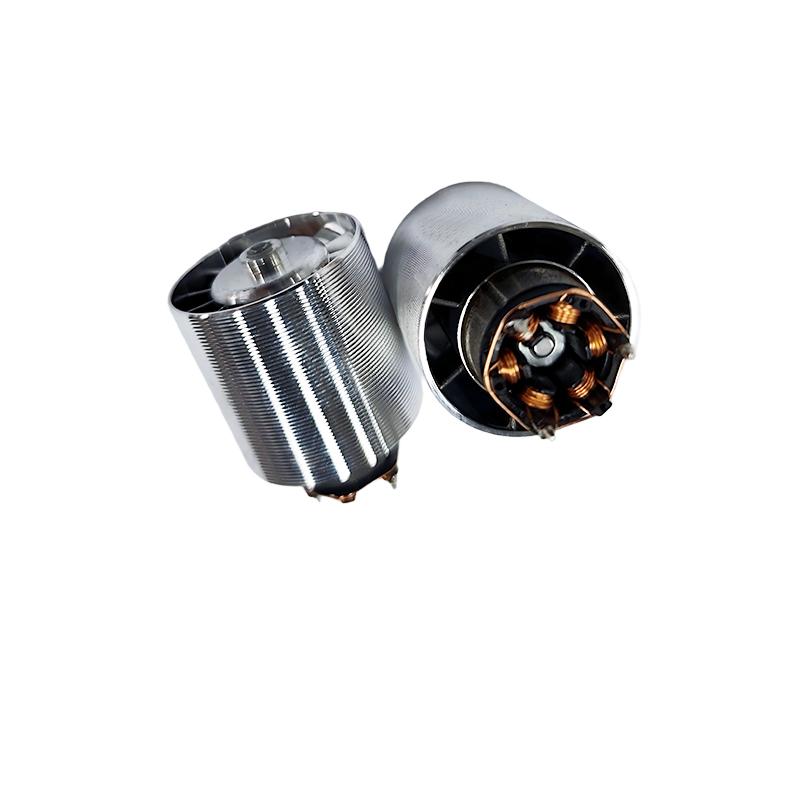

2829-09 High-Torque Precision DC Motor
- · Rated Power: 78W
- · Speed Rpm: 90000±3000RPM
- · Speed(RPM): 0-11000 RPM
- · Efficiency: IE 4
- · Frame: 29mm(1.14in)
- · Continuous Current(A): 9A
- · Diamater: 29mm
- · Weight: 0.05KG
- · Rated Voltage: 8.4V DC
Product Overview
The 2829-09 Precision DC Motor is designed for high-demand B2B applications requiring compact dimensions, low operation noise, and continuous high-torque performance. Featuring high-grade magnetic circuitry and precision-wound copper coils, this motor delivers stable drive output across industrial automation systems, medical equipment, and modern robotics.
Precision-Engineered for Efficiency and Dependability
Built on the standard 2829 frame architecture, the 2829-09 DC motor minimizes energy loss while maximizing output torque density. The specialized stator-rotor configuration provides a flat torque-speed curve, giving design engineers consistent speed control under fluctuating dynamic loads.
Dual precision-sealed ball bearings significantly reduce mechanical friction, maintaining acoustic performance below 50dB during standard operation. Combined with thermal-resistant copper windings, the motor operates reliably under continuous-duty environments without degradation of internal magnetic materials.
System Integration & OEM/ODM Versatility
Designed for straightforward electrical and mechanical mounting, the 2829-09 motor seamlessly pairs with pulse-width modulation (PWM) speed controllers, planetary gearheads, and encoder systems for closed-loop control setups.
Custom Shafts & Mounting Interfaces
We support customized shaft length, D-cut flats, keyways, cross-drilled holes, and specialized mounting faceplates to streamline integration into existing system assemblies.
Gearbox & Encoder Integration
Easily pairs with precision spur or planetary gearboxes for higher torque output at low speeds, as well as magnetic or optical encoders for accurate speed/position feedback.
Tailored Voltage & Winding Options
Available in custom winding configurations optimized for 6V, 12V, or 24V system architectures to precisely hit target RPM and torque requirement points.
Quality Control & Certification Compliance
Each 2829-09 DC motor undergoes thorough automated inspection, including electrical insulation tests, no-load/full-load current checks, and rotational dynamic balancing. Manufactured under ISO9001 quality management standards with full CE and RoHS compliance.
Technical Specifications
| Rated Power | 78W |
| Speed Rpm | 90000±3000RPM |
| Speed(RPM) | 0-11000 RPM |
| Efficiency | IE 4 |
| Frame | 29mm(1.14in) |
| Continuous Current(A) | 9A |
| Diamater | 29mm |
| Weight | 0.05KG |
| Rated Voltage | 8.4V DC |
Key Features
Applications
