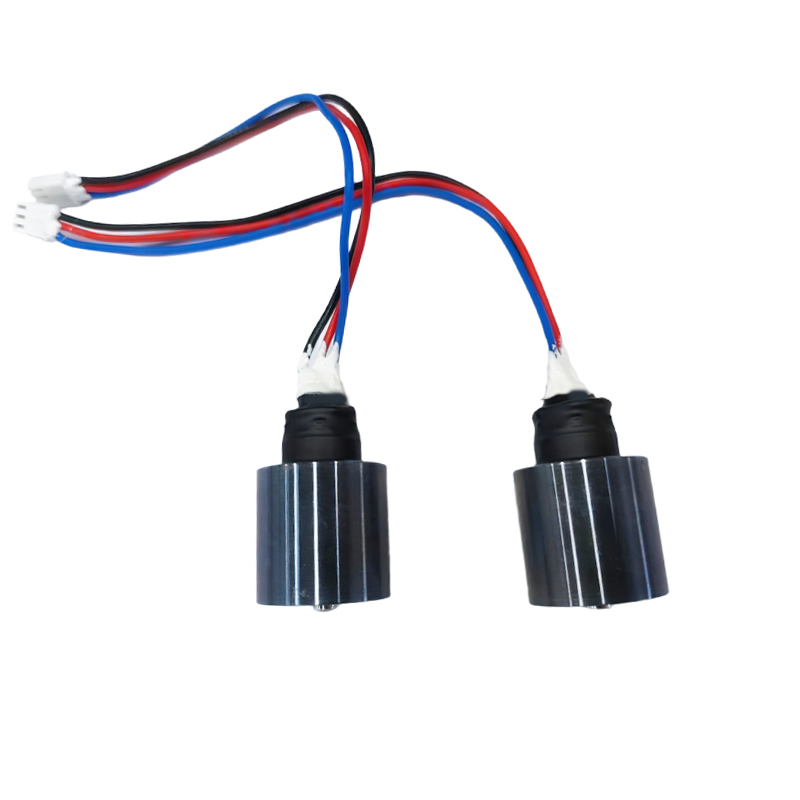

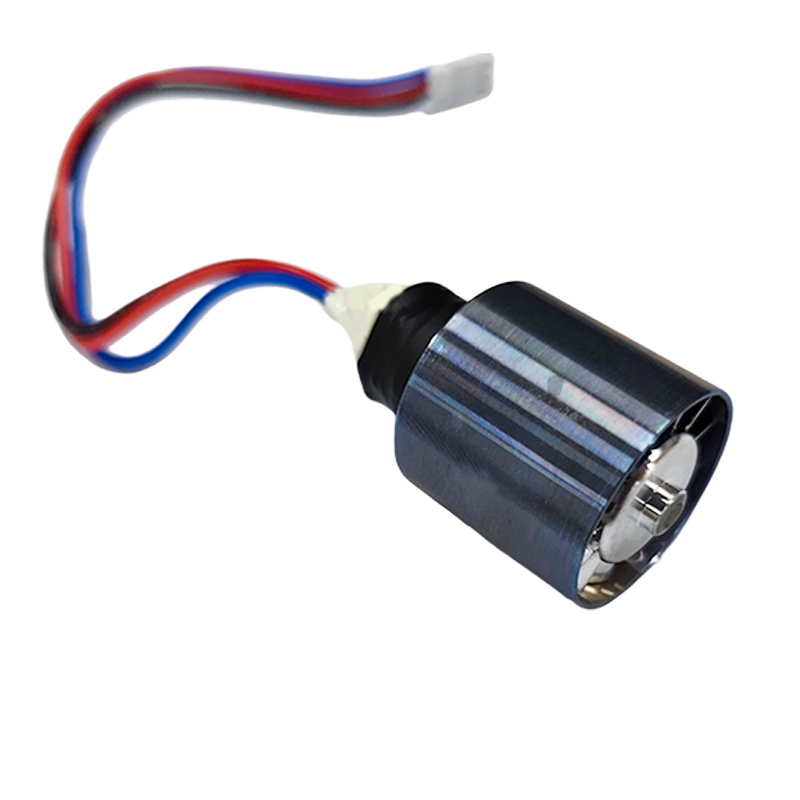

2829-010 High-Efficiency Micro DC Motor

Product Overview

The 2829-010 Micro DC Motor is an advanced drive solution engineered for precision B2B equipment requiring low energy consumption, ultra-quiet operation, and reliable continuous power output. Featuring an optimized rotor-stator layout and premium copper windings, it delivers exceptional motion control performance across medical instruments, smart automation, and robotic systems.

Precision Electromagnetic Design for Continuous Performance

Engineered specifically for low-loss electrical conversion, the 2829-010 DC motor combines high-flux permanent magnets with a low-inertia armature core. This configuration enables rapid starting speeds and stable linear speed-torque control curves, making it highly effective for applications utilizing pulse-width modulation (PWM) speed regulation.

To guarantee stable performance under demanding duty cycles, the internal copper wire is insulated up to Class F standards (155°C). Dual high-precision bearings drastically reduce rotational friction, keeping noise under 48dB and minimizing maintenance requirements over an extended operational lifetime.

Tailored OEM Options & Easy System Integration

Recognizing that precision hardware demands tailored specs, the 2829-010 series supports comprehensive customization options. It integrates seamlessly into compact mechanical setups and supports quick coupling with gear reducers and feedback sensors.

Custom Shafts & Mechanical Adapters

We offer custom output shaft modifications including D-cut flats, keyways, custom lengths, and threaded ends to match your exact mechanical interface.

Gearhead & Encoder Assembly

Can be pre-assembled with planetary gearboxes or spur gear reducers for amplified torque output, as well as optical or magnetic encoders for closed-loop control systems.

Targeted Winding & Voltage Options

Custom winding specs are available to optimize operational voltage (6V, 12V, 24V, 36V) and balance RPM targets with optimal torque density.

Stringent Quality Control & Standards Compliance

Every 2829-010 DC motor undergoes full computer-controlled end-of-line testing covering dielectric strength, current draw consistency, noise emissions, and dynamic rotor balance. Manufactured in ISO9001 certified facilities and compliant with international CE and RoHS requirements.

Technical Specifications

Commutation	Brushless
Rated Power	94W
Speed Rpm	0-11000 RPM
Speed(RPM)	0-11000 RPM
Efficiency	IE 4
Continuous Current(A)	1.5A
Diamater	29mm
Weight	0.06KG

Key Features

High Energy Efficiency: Optimized electromagnetic design ensures maximum output torque with minimal current draw.

Ultra-Quiet Performance: Dynamically balanced rotor and precision sleeve/ball bearings minimize operational noise (<48dB).

Fast Dynamic Response: Low-inertia rotor configuration allows rapid acceleration, deceleration, and frequent start-stop cycles.

Robust Thermal Stability: High-temperature copper windings prevent power loss and overheating during prolonged continuous use.

Compact & Lightweight Frame: Standard 2829 series housing delivers high power density in tight spatial footprints.

Flexible Mounting Configurations: Modular design compatible with standard gearheads, encoders, and custom shaft profiles.

Applications

Smart Home & Office Automation: Motorized shades, smart door locks, automated paper shredders, and curtain drives.

Precision Medical & Lab Equipment: Dosing pumps, centrifugal agitators, blood analyzers, and automated diagnostic tools.

Robotics & Unmanned Systems: Miniature robotic joints, small AGV drive wheels, and pan-tilt camera platforms.

Commercial & Vending Machines: Coin mechanisms, automated ticket dispensers, and small liquid dispensing pumps.

Industrial Automation & Sensing: Conveyor alignment actuators, automated valve controls, and pneumatic replacement drives.
