Deep Groove Ball Bearings: An In - Depth Look

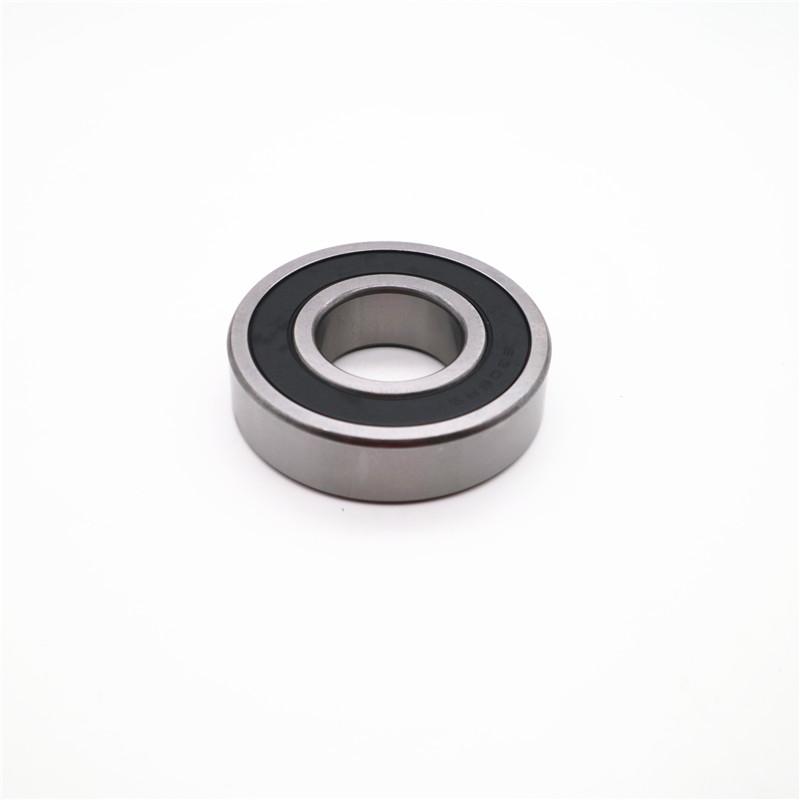

Deep groove ball bearings are one of the most common and versatile types of rolling element bearings in the industrial world. They are designed to carry both radial and axial loads, making them suitable for a wide range of applications.

Construction and Design​

At the core of a deep groove ball bearing is a set of precision - made balls that are housed between two grooved rings, the inner and outer rings. The deep grooves are carefully engineered to provide maximum contact area between the balls and the rings, which in turn enables the bearing to handle high loads efficiently. The balls are typically made of high - quality bearing steel, such as AISI 52100, which offers excellent hardness, wear resistance, and fatigue strength. The inner and outer rings are also made of specialized steels and are heat - treated to enhance their mechanical properties.​

Working Principle​

When a load is applied to a deep groove ball bearing, the balls roll along the grooves in the inner and outer rings. The rolling motion of the balls reduces friction significantly compared to sliding contact. In the case of radial loads, the balls distribute the load evenly around the circumference of the bearing, allowing it to rotate smoothly. For axial loads, the deep grooves guide the balls to resist the thrust forces. The smooth operation of deep groove ball bearings is further enhanced by the use of lubricants, which reduce friction and wear, and also help to dissipate heat generated during operation.​

Advantages​

• High Rotational Speed: Deep groove ball bearings can operate at high rotational speeds due to their low friction design. This makes them ideal for applications such as electric motors, where high - speed rotation is required.​
• Versatility: As mentioned earlier, they can handle both radial and axial loads, making them suitable for various mechanical systems, from small household appliances to large industrial machinery.​
• Long Service Life: With proper lubrication and operating conditions, deep groove ball bearings can have a long service life. Their robust construction and high - quality materials contribute to their durability.​
• Cost - effective: They are relatively inexpensive compared to some other types of bearings, making them a popular choice for many manufacturers.​

Deep groove ball bearings play a crucial role in countless industrial applications. Their simple yet effective design, combined with their numerous advantages, makes them an essential component in the world of mechanical engineering.
