Miniature Flange Ball Bearing F698ZZ Manufacturer

Produce Description

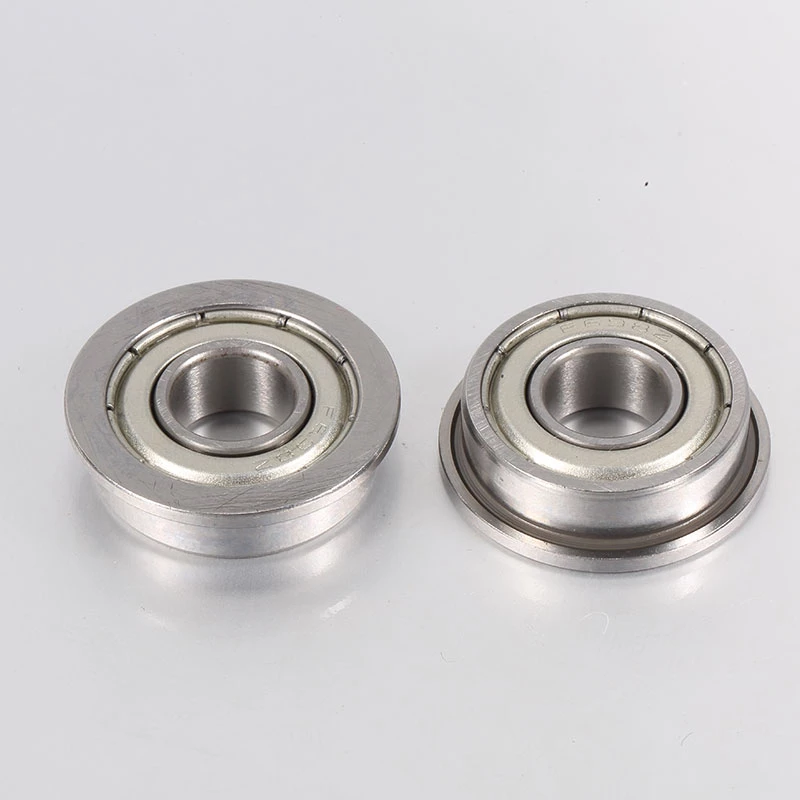

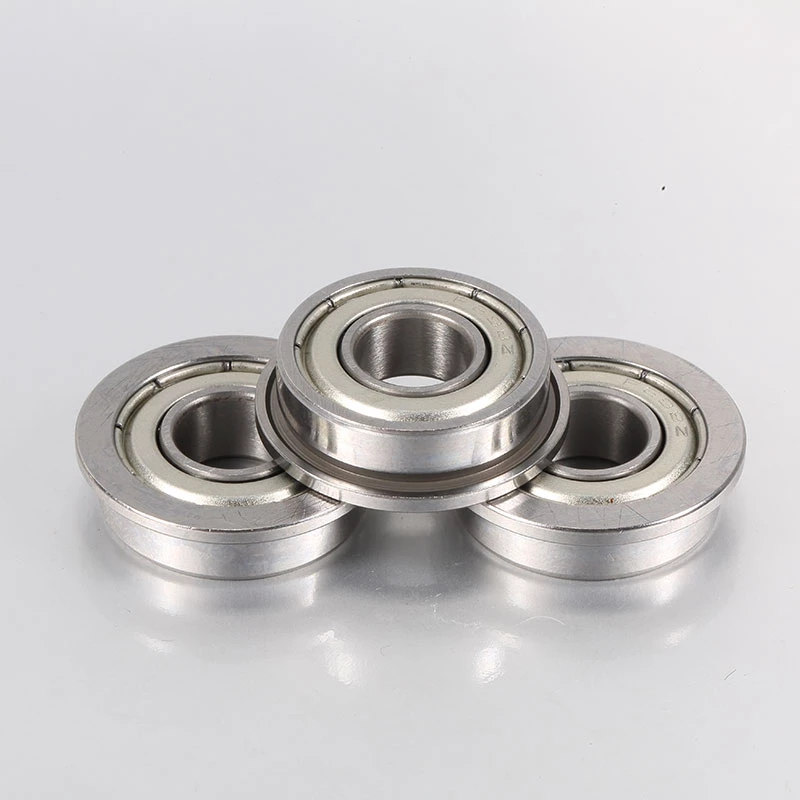

Miniature Flange Ball Bearing F698ZZ This bearing is suitable for a variety of occasions requiring high precision, high speed and low noise due to its compact size, high precision and good performance.

Features of Miniature Flange Ball Bearing F698ZZ

• Compact design: The dimensions are 8×19×6mm, suitable for space-constrained applications.

• High precision: The precision grade is P0 (ABEC-1), which can meet most high-precision requirements.

• High load capacity: It has high radial dynamic load (2210N) and static load (893N), and can withstand large radial forces.

• High speed performance: The reference speed can reach 36000r/min when grease lubrication is used, and the limit speed can reach 43000r/min when oil lubrication is used.

• Low noise: Low noise during operation, suitable for equipment with high noise requirements.

• Flange design: The outer ring is equipped with a flange, which is convenient for positioning in the bearing seat, preventing axial movement, and easy installation.

• Double dust cover: The ZZ type double dust cover effectively prevents dust and impurities from entering and extends the service life.

• Material and lubrication: It is usually made of chrome steel (such as GCr15SiMn), with good wear resistance and strength. The pre-lubricated design makes it ready for use when delivered.

Production Customization Process

Miniature Flange Ball Bearing F698ZZ Application

• Industrial equipment: widely used in machine tools, textile machinery, metallurgical equipment, mining machinery, printing machinery, food processing machinery, plastic machinery, etc.

• Automobiles and ships: used in auxiliary equipment for automobiles, ships, etc., such as electric fans, wipers, etc.

• Home appliances and consumer goods: suitable for power tools, household appliances, small motors, etc.

• Medical equipment: used for light rotating parts in medical equipment, such as medical handpieces, respiratory assistance equipment, etc.

• Robotics and automation: used in robot joints, light transmission parts of automated production lines.

• Others: also used for conveyor belts, light industrial applications, flow meters, fuel control devices, etc.

Shenzhen Wanyuan Bearing Co., Ltd. is a professional bearing manufacturer integrating R&D and innovation. The company mainly produces metric bearings with inner diameters of 1-50MM, imperial bearings, spherical roller bearings, double-row cylindrical bearings, cylindrical roller bearings, four-point angular contact bearings, flange bearings, ceramic bearings and customized non-standard bearings.
