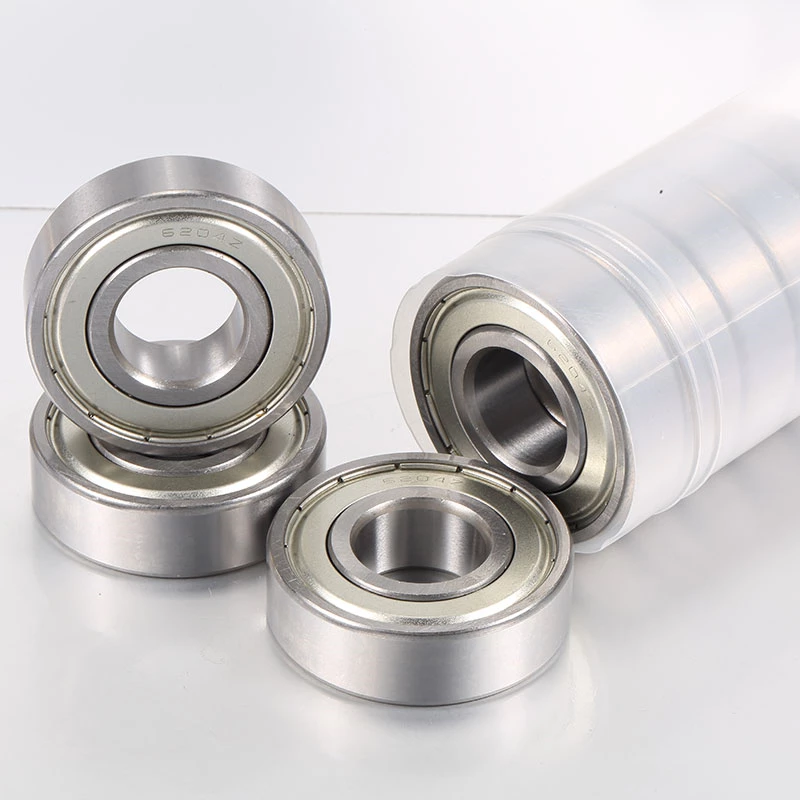

6204ZZ bearings are ideal for many industrial equipment and machinery due to their high precision, durability and low noise.
Features of 6204ZZ Bearings
With high-quality materials and reasonable structure, the 6204ZZ bearing has a strong load-bearing capacity. It can withstand considerable radial loads. According to standard calculations, its basic rated dynamic load can reach 12.8kN and its basic rated static load is 7.85kN. This makes it suitable for a variety of load conditions. Even when subjected to large external forces, it can still ensure the normal operation of the equipment, is not prone to deformation or damage, and ensures the reliability and stability of the equipment.
Our advantages
The 6204ZZ bearing is a widely used deep groove ball bearing with dimensions that conform to international standards. Its dimensions of 47mm outer diameter, 20mm inner diameter and 14mm width can be well matched with many mechanical components. It can be easily installed and used in a variety of equipment such as motors, fans, pumps, machine tools, and household appliances without the need for complex customization or modification, greatly reducing the design and maintenance costs of the equipment.
High Precision and Durability
The 6204ZZ bearing adopts a deep groove ball bearing design, which has high precision and durability and can withstand radial and bidirectional axial loads.
Its inner and outer ring raceways are arc-shaped deep grooves, suitable for high-speed applications, with low friction torque and low noise.
Double dust cover design
The 6204ZZ bearing is equipped with a bimetallic dust cover, which can effectively prevent dust and impurities from entering and extend the life of the bearing.
Suitable for high-speed rotation occasions, with good dust resistance.
High speed and low noise
The bearing is designed for high-speed applications, with high limit speed, smooth operation and low noise.
Suitable for equipment requiring low noise and low vibration.
Wide range of applications
The 6204ZZ bearing is suitable for a variety of industries, including automobiles, machinery, home appliances, agricultural equipment, etc.
It is also widely used in motors, fans, machine tools and other equipment.
Standardized design
The 6204ZZ bearing meets international standards, has uniform dimensions, and is easy to replace and maintain.
Product name: deep groove ball bearing 6204ZZ
Applicable Industries
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Retail, Construction works , Other
Bore Size
10mm - 20mm
Type
BALL
Structure
Deep Groove
Model Number
6204zz
Seals Type
Double-sided seal
Cage and its materials
J steel stamping
Material
chrome steel
Size(mm)
20x47x14mm
Weight
0.01 (kg)
Accuracy level
P0
Sealing cap
Double-sided seal
Rolling body
steel ball
Bearing material
high carbon chromium bearing steel
Raceway type
deep groove raceway
Uses
precision instruments
Production Customization Process
6204ZZ Bearings Application
Industrial machinery
Used in machine tools, transmission devices, vibrating screens and other equipment to provide high-precision and stable rotation.
Automobiles and machinery
Widely used in automotive parts and engineering machinery, capable of withstanding high loads and impacts.
Household appliances and motors
Applicable to household appliances such as motors and fans to ensure smooth operation of the equipment.
Agriculture and mining
Used in agricultural machinery and mining equipment to provide reliable rotation support.
Other fields
It can also be used in railways, metallurgy, mining and other industries to meet a variety of industrial needs.
External groove grinding
Bearing production
Bearing packaging workshop
Internal groove grinding
Automated production
Bearing inspection
Shenzhen Wanyuan Bearing Co., Ltd. is a professional bearing manufacturer integrating R&D and innovation. The company mainly produces metric bearings with inner diameters of 1-50MM, imperial bearings, spherical roller bearings, double-row cylindrical bearings, cylindrical roller bearings, four-point angular contact bearings, flange bearings, ceramic bearings and customized non-standard bearings.
Our Cooperative Customers
Frequently asked questions
Q1. Are you a buyer or manufacturer?
A: We are a bearing manufacturer with export permission.
Q2. What's your business range?
A: Our business ranges mainly includes miniature ball bearing, flange bearing, thrust roller bearing, needle roller bearing, rod end bearing, and non-standard bearing.
Q3. What do you have a certificate of factory?
A: We have passed the certificate of IS09001. Our products have passed REACH and RoHS etc.
Q4. Can you provide OEM service with us?
A: Yes, we always provide OEM service to our clients.
Q5. How do you deal with non-standard bearing order?
A: First of all, our MOQ is 50000 pcs on the non-standard bearing order. We must provide the relative drawing.
Q6. How do you charge on the samples?
A: Our samples are free for you if we have them stocked. But the sample express cost will be charged at your end.
Q7. Do you accept small orders?
A: Yes, we accept all kinds of smart orders.
Q8. How long is your lead time?
A: It will take 1 week if the order size is less than 10,000 pcs. It will take 4 weeks if the order size is more than 100,000 pcs.
Q9. What's your packaging mode of bearing?
A: We have packaging modes of plastic tube and individual box for your choice.
