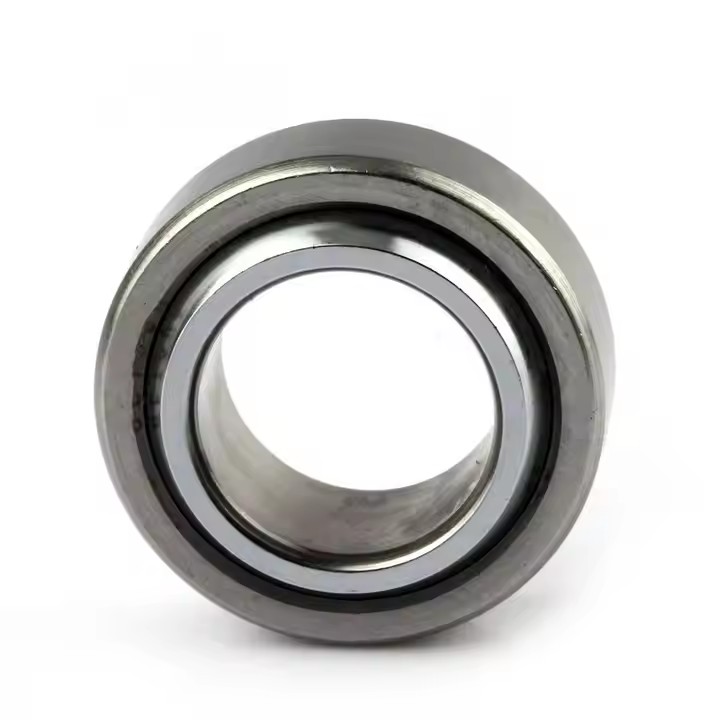

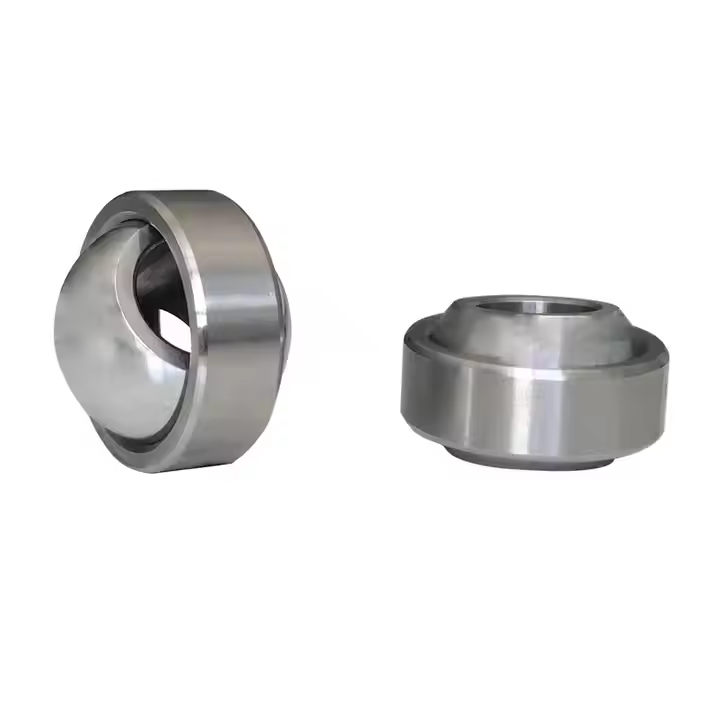

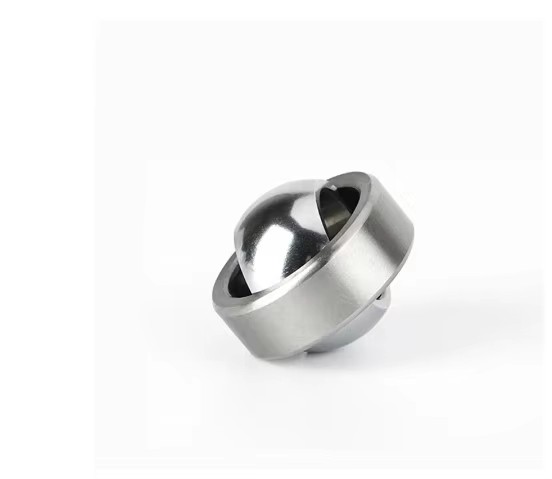

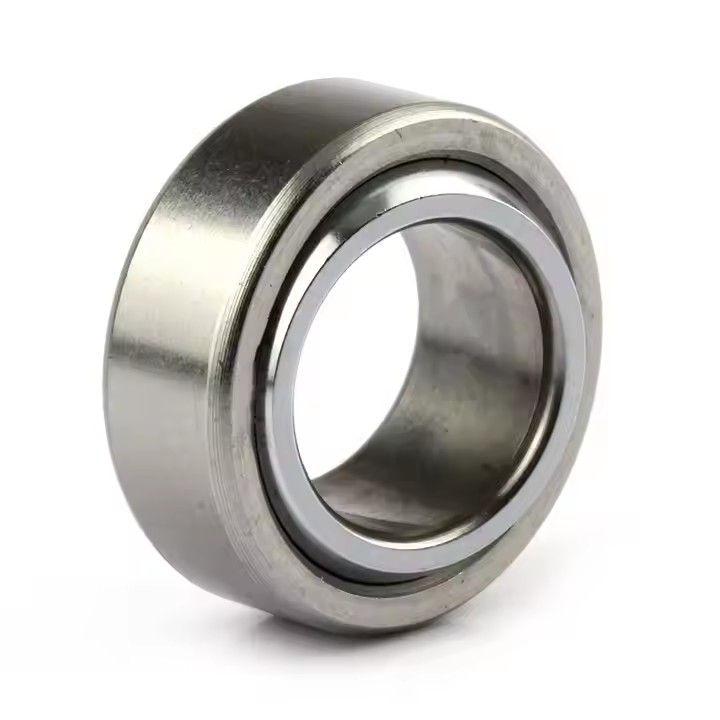

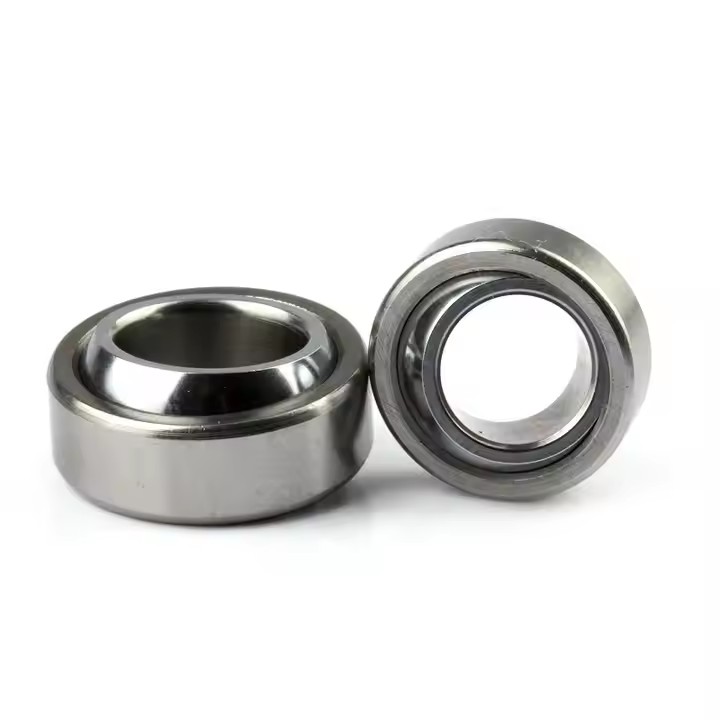

GEK12T Spherical Plain Bearing 12x26x15mm Maintenance-Free Radial Joint Bearing
Model: GEK12T
- · Bore Diameter (d): 12 mm
- · Outer Diameter: 26 mm
- · Inner Ring Width: 15 mm
- · Outer Ring Width: 10 mm
- · Tilt Angle: Approx. 13°
- · Inner Ring Material: Chrome Steel
- · Dynamic Load Rating: 17.5 kN
- · Static Load Rating: 35.0 kN
Product Overview
The GEK12T (also commonly classified under the GE12ET / GEK 12 series) is a heavy-duty radial spherical plain bearing designed for oscillating, pivoting, and angular misalignment applications without the need for relubrication. Built with a precision-ground, hard chrome-plated inner sphere sliding against a self-lubricating PTFE composite outer ring liner, it ensures minimal friction and long-term durability.
This bearing accommodates high radial loads combined with simultaneous moderate axial forces, making it an optimal solution for articulated linkages, suspension systems, and industrial steering mechanisms requiring smooth, maintenance-free motion.
Technical Specifications
| Bore Diameter (d) | 12 mm |
| Outer Diameter | 26 mm |
| Inner Ring Width | 15 mm |
| Outer Ring Width | 10 mm |
| Tilt Angle | Approx. 13° |
| Inner Ring Material | Chrome Steel |
| Dynamic Load Rating | 17.5 kN |
| Static Load Rating | 35.0 kN |
Key Features
Completely Maintenance-Free: The self-lubricating PTFE composite liner provides dry-running capability, eliminating greasing routines and avoiding environmental contamination.
Superior Load Bearing Capacity: Wide inner ring profile and heavy-duty steel construction withstand high radial shocks and static overloads.
Smooth Angular Misalignment: High spherical precision allows seamless pivoting and angular rotation to absorb structural alignment deviations.
Corrosion & Wear Resistance: Precision-honed and hard chrome-plated ball surface prevents galling, seizing, and premature mechanical wear.
Applications
Hydraulic cylinder clevis ends and pneumatic linkages
Motorsports suspension arms, sway bar links, and steering pivots
Construction, forestry, and agricultural machinery linkages
Industrial robotics, articulated arms, and automated handling equipment
Material handling pivots, sorting gates, and heavy-duty packaging mechanisms
