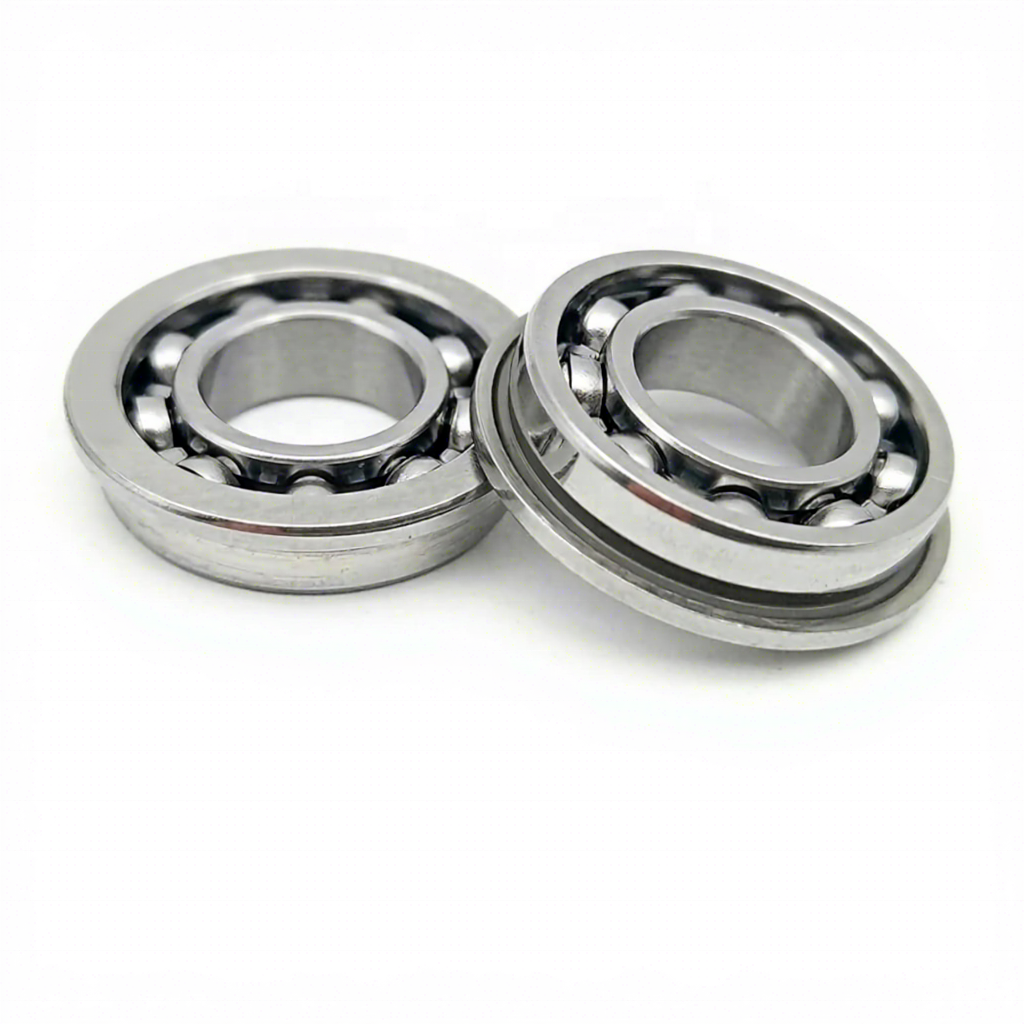

F688 / FL688 / F618/8 Flanged Miniature Ball Bearing (8mm x 16mm x 4mm, Open)
- System of Measurement: Metric
- Inner Diameter: 8mm
- Outer Diameter: 16mm
- Width: 4mm
- Precision Rating: P0
Key Features
Engineered for superior reliability, high torque efficiency, and low-noise continuous operations.
System of Measurement
High precision engineered system of measurement (Metric)
Inner Diameter
High precision engineered inner diameter (8mm)
Outer Diameter
High precision engineered outer diameter (16mm)
Width
High precision engineered width (4mm)
Precision Rating
High precision engineered precision rating (P0)
Clearance
High precision engineered clearance (CN)
Technical Specifications
Detailed engineering parameters, mechanical dimensions, and electrical performance figures.
| Parameters | Specifications |
|---|---|
| System of Measurement | Metric |
| Inner Diameter | 8mm |
| Outer Diameter | 16mm |
| Width | 4mm |
| Precision Rating | P0 |
| Clearance | CN |
| Sealing Type | No Seal |
| Number of Rows | Single Row |
| Material | Chrome steel |
| Grease RPM Limit | 2000rpm |
| Lubrication | Grease free |
| Applicable Industries | Building Material Shops, Energy & Mining, Farms, Machinery Repair Shops, Manufacturing Plant, Printing Shops, Other, Construction works, Hotels |
| Place of Origin | Zhejiang, China |
| Feature | Long Life High Speed |
| OEM Service | Custom Bearing's Size Logo Packing |
| Size | 8*16*4mm |
| Certificate | ISO9001 |
| Quality | 100% Tested |
| Application | Machinery Motor Hotel Bicycle Cycling |
| Selling Units | Single item |
| Single package size | 5X5X5 cm |
| Single gross weight | 10.0 kg |

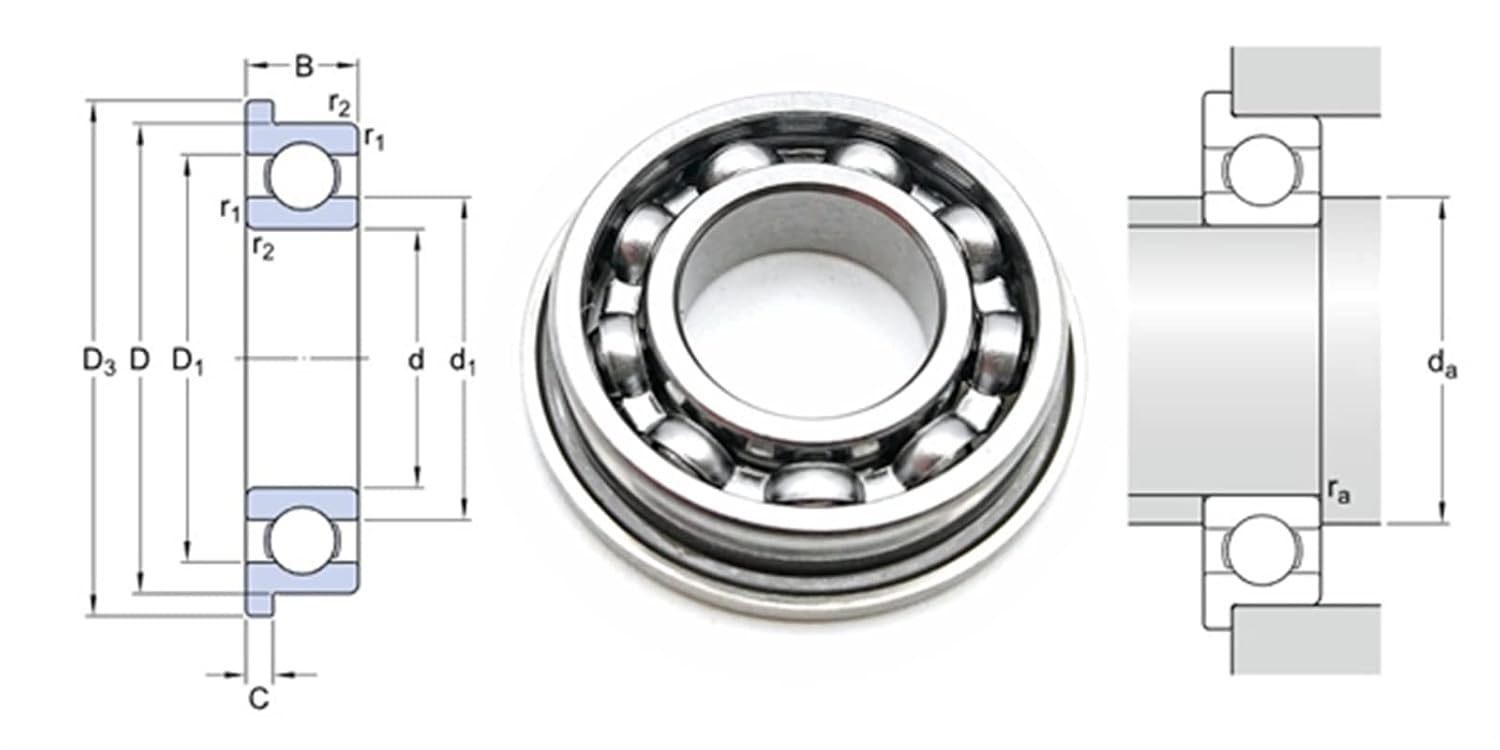

Dimensions & Technical Drawings
