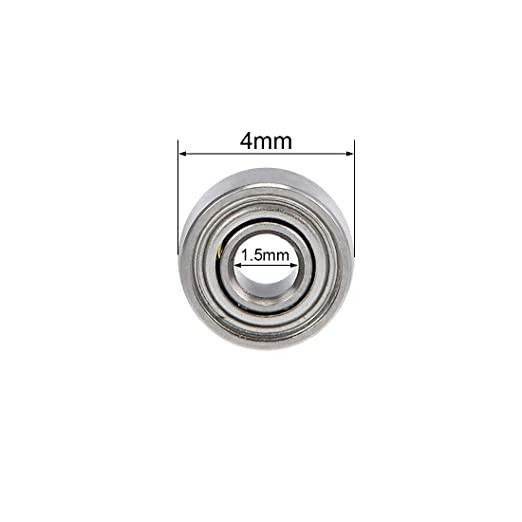

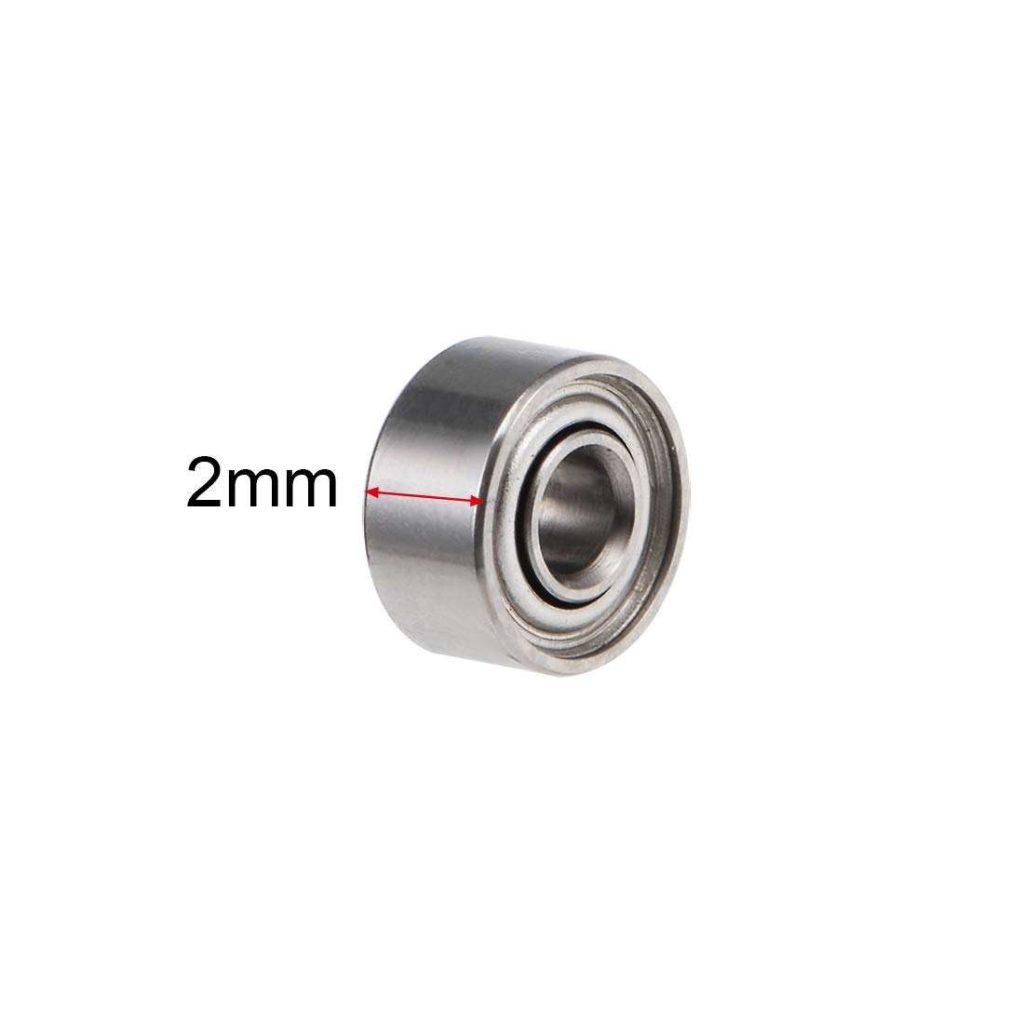

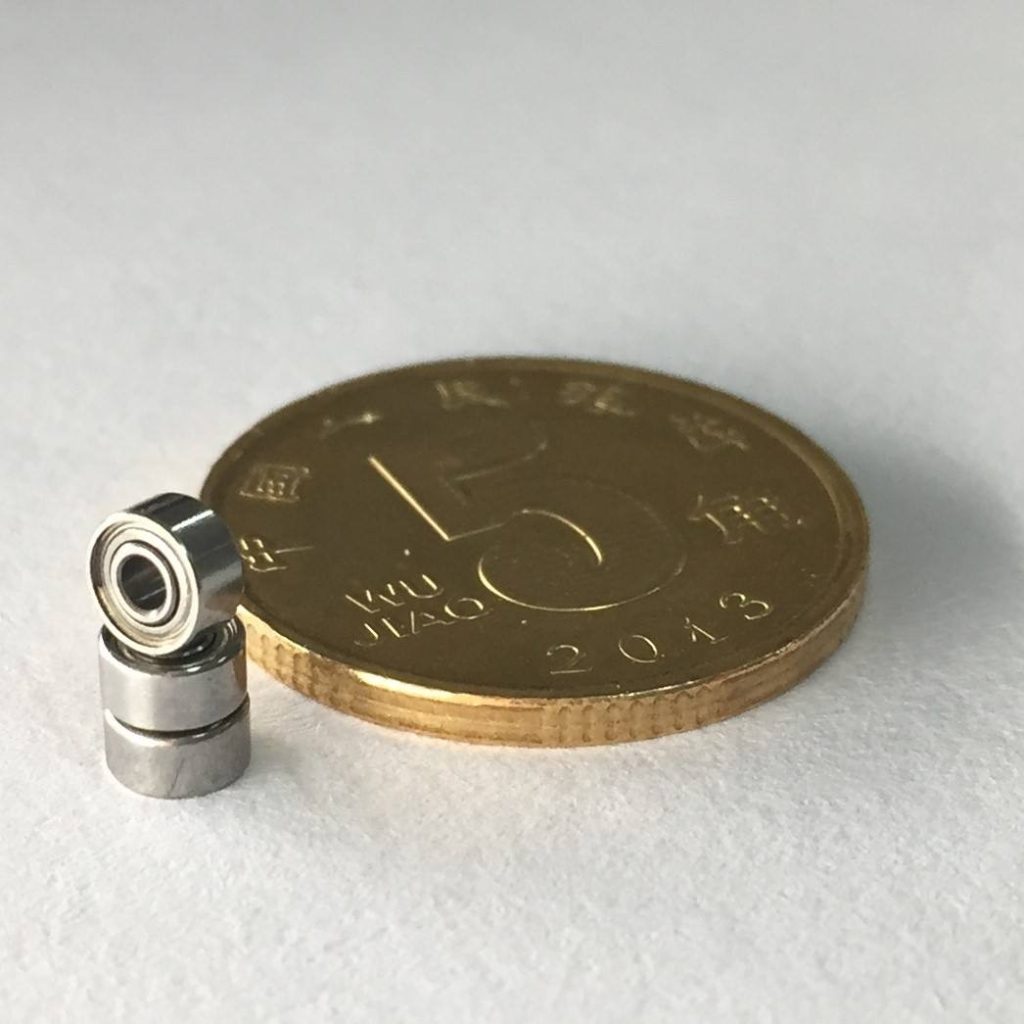

681XZZ / 681X-ZZ Ultra-Miniature Ball Bearing (1.5mm x 4mm x 2mm)
- · Inner Diameter: 1.5mm
- · Outer Diameter: 4mm
- · Width: 2mm
- · Precision Rating: P0
- · Clearance: C0
- · Sealing Type: ZZ
- · Number of Row: Single Row
- · Material: Chrome Steel GCR15
- · Grease RPM Limit: 2000 RPM
- · Lubrication: Grease
Product Overview
High-Precision 681XZZ / 681X-ZZ Ultra-Miniature Deep Groove Ball Bearing
The 681XZZ (681X-ZZ) Ultra-Miniature Ball Bearing is a metric single-row thin-section deep groove ball bearing engineered for high-precision, low-friction, and ultra-high-speed rotary applications. Featuring an inner bore size of 1.5mm, an outer diameter of 4.0mm, and a compact width of 2.0mm, the 681XZZ is an ideal component for micro-mechanical drives, precision sensors, and miniature electronics where space and weight are critical factors.
High-Grade Chrome Steel & Dust Shielded Protection
Manufactured from high-carbon chromium bearing steel (GCr15 / AISI 52100), the inner ring, outer ring, and precision micro balls undergo specialized thermal heat treatment to achieve superior surface hardness (HRC 60-65) and structural fatigue strength. Equipped with dual non-contact stamped metal shields (ZZ designation), the bearing retains internal factory lubrication while preventing ambient dust and fine particulates from entering the raceway.
Ultra-Low Friction & High-RPM Capability
Featuring precision-honed raceway grooves and a balanced ribbon cage, the 681XZZ bearing delivers minimal rotational resistance, low acoustic noise, and smooth running performance at speeds up to 70,000 RPM. Its sub-micron dimensional tolerances ensure smooth radial guidance and minimal axial play in micro-spindle assemblies.
Custom Manufacturing & Material Options
To support specialized industrial and OEM application environments, custom configurations are available upon request:
- Stainless Steel Options: Stainless steel (SUS440C / SUS304) construction for damp, corrosive, or medical-grade environments.
- Flanged Ring Design: Flanged outer ring model (F681XZZ) available for simplified housing mounting and axial location.
- Ceramic Hybrid Options: Silicon nitride (Si3N4) or zirconia (ZrO2) ceramic ball options for ultra-high-speed, low-inertia performance.
- Precision Grading: Available in ABEC-1, ABEC-3, ABEC-5, and ABEC-7 tolerance classes.
Technical Specifications
| Inner Diameter | 1.5mm |
| Outer Diameter | 4mm |
| Width | 2mm |
| Precision Rating | P0 |
| Clearance | C0 |
| Sealing Type | ZZ |
| Number of Row | Single Row |
| Material | Chrome Steel GCR15 |
| Grease RPM Limit | 2000 RPM |
| Lubrication | Grease |
| Size | 1.5*4*2mm |
| Certificate | ISO9001 |
