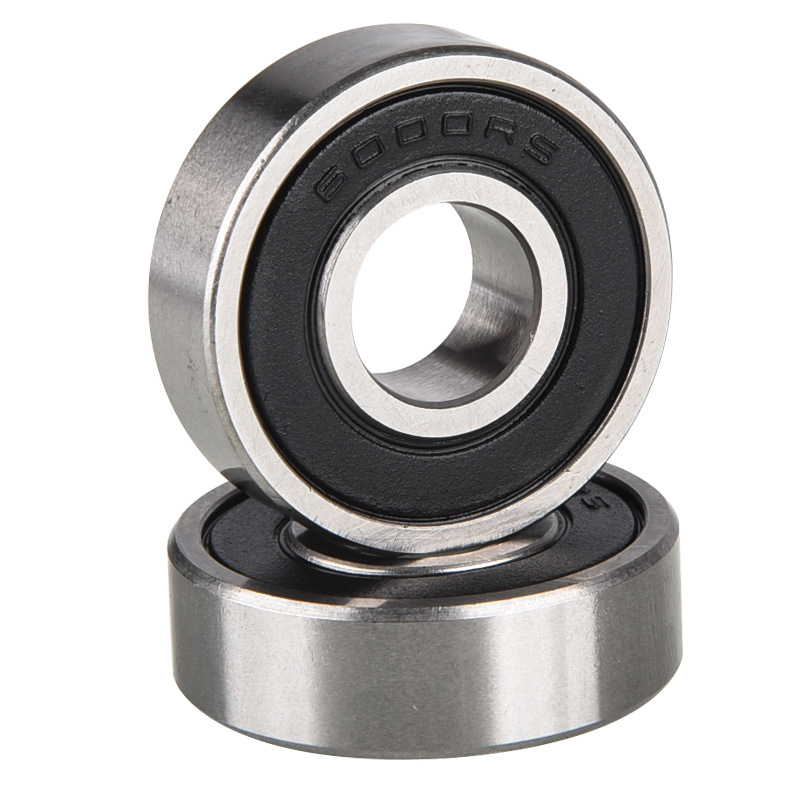

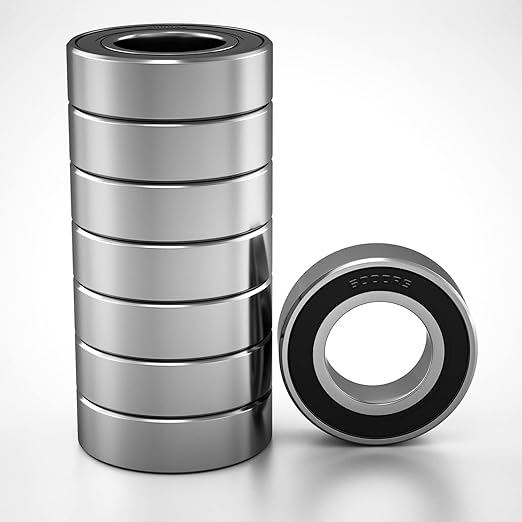

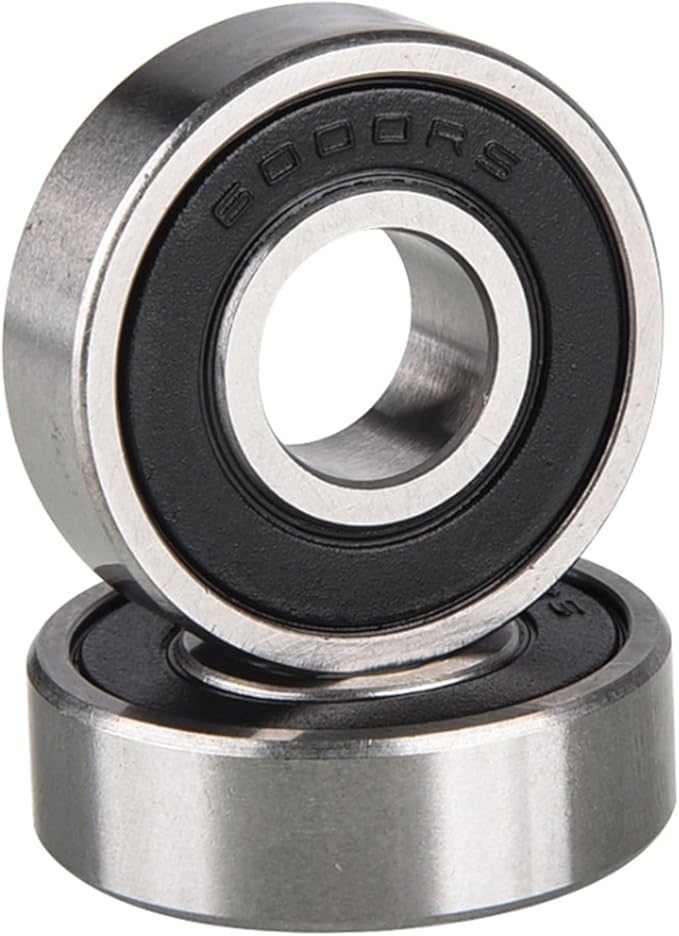

6000-2RS Deep Groove Ball Bearing 10x26x8mm Rubber Sealed Chrome Steel Bearing
Model: 6000-2RS

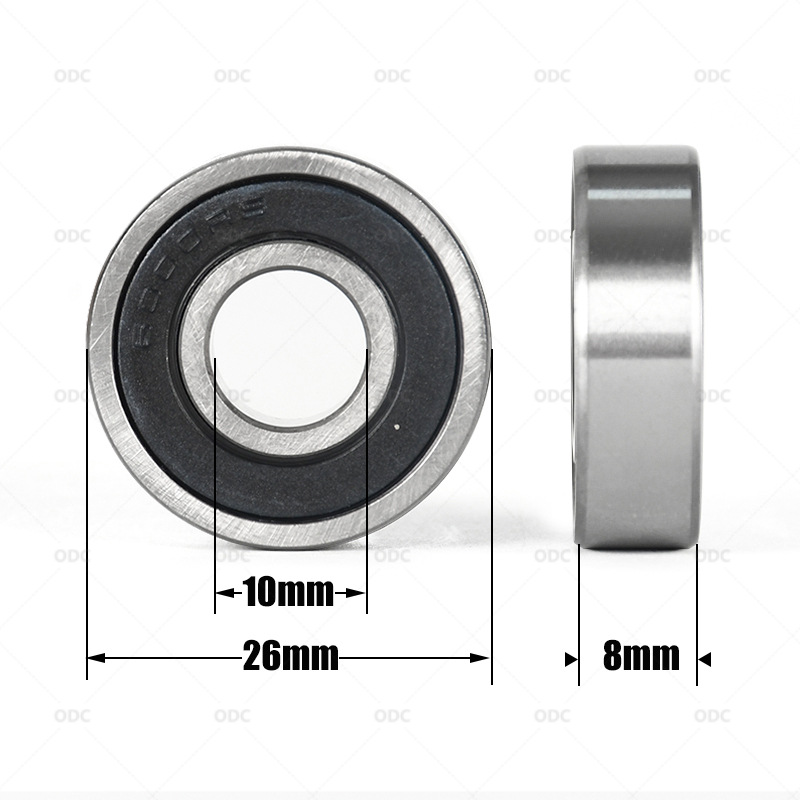

- · Inner Diameter: 10mm(0.39in)
- · Outer Diameter: 26 mm(1.02in)
- · Width: 8 mm(0.31in)
- · Precision Rating: P0 P6 P5 P4
- · Clearance: C0
- · Sealing Type: 2RS
- · Number of Row: Double Row
- · Material: Chrome Steel
- · Lubrication: Grease
- · Size(mm): 10*26*8mm
Product Overview
The 6000-2RS (also designated as 6000RS / 6000-2RSH) is a single-row deep groove ball bearing designed for versatile, high-speed, and low-friction industrial applications. It is engineered with dual contact nitrile rubber (NBR) seals to retain factory grease and provide superior protection against dust, dirt, and moisture ingress.
Manufactured from high-grade vacuum-degassed GCr15 chrome steel and super-finished on raceway surfaces, the 6000-2RS bearing delivers low vibration, minimal running noise, and exceptional durability under combined radial and light bidirectional axial loads.
Technical Specifications
| Inner Diameter | 10mm(0.39in) |
| Outer Diameter | 26 mm(1.02in) |
| Width | 8 mm(0.31in) |
| Precision Rating | P0 P6 P5 P4 |
| Clearance | C0 |
| Sealing Type | 2RS |
| Number of Row | Double Row |
| Material | Chrome Steel |
| Lubrication | Grease |
| Size(mm) | 10*26*8mm |
| Weight | 0.01(kg) |
| Accuracy level | P0 |
| Sealing cap | Double-sided seal |
| Raceway type | Deep Groove Raceway |
Key Features
High-Efficiency Dual Rubber Seals (2RS): Effectively locks in grease while blocking external contaminants like dust, grit, and moisture, extending operational life.
Low Noise & Low Vibration: Precision-honed raceways and premium grade steel balls ensure quiet running (Z2/Z3 vibration grade standard).
High-Speed & Low-Torque Performance: Optimized internal geometry minimizes friction losses and heat build-up at elevated rotational speeds.
Maintenance-Free Operation: Factory pre-lubricated for immediate installation with no secondary lubrication required.
Applications
Small electric motors, micro motors, and power tools
3D printers, CNC stepper motors, and precision automation equipment
Skateboards, inline skates, and RC models
Household appliances (vacuum cleaners, ceiling fans, power garden tools)
Office automation equipment, gearboxes, and conveyor rollers
