High-Precision Bearings, Motors & Servos in Industrial Automation and Robotics: Core Engineering Applications
Modern industrial automation relies heavily on the seamless integration of high-precision bearings, high-power-density motors, and dynamic digital servos. From humanoid robot joints to heavy-duty AGV drive axles and high-speed CNC feed axes, selecting the right motion control components determines operational reliability, positional accuracy, and overall thermal efficiency.
Overview
Key Takeaways for Engineers & OEM Buyers
- Humanoid & Collaborative Robotics: Compact frameless BLDC motors paired with harmonic drive bearings achieve exceptional torque density and precise joint positioning under tight space constraints.
- AGV/AMR Autonomous Drive Systems: High-radial-load angular contact ball bearings and low-voltage servo traction drives ensure sustained stability during continuous operation and frequent start-stop cycles.
- CNC Machining & Automation: Zero-backlash servo actuators combined with preloaded precision linear guide bearings maintain rigid axial stability on high-speed CNC feed axes and automated fastening systems.
1. Humanoid Robot Joint Actuators & Collaborative Arms

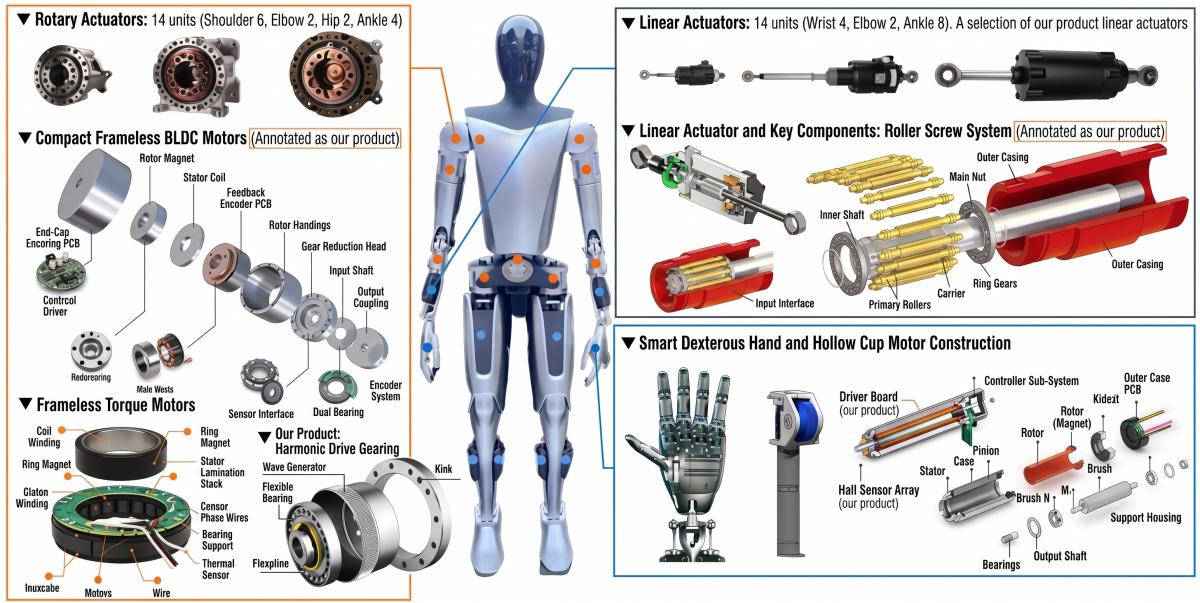

In next-generation humanoid robotics and collaborative robot (cobot) arms, weight, spatial layout, and power density are critical design constraints. Actuator modules require frameless brushless DC (BLDC) motors integrated with high-ratio strain wave reducers (harmonic drives) and ultra-thin section precision bearings.
Key Performance Requirements:
- Servos & Motors: High continuous torque output, minimal cogging torque, and high dynamic acceleration response to enable fluid multi-axis motion compensation.
- Precision Bearings: Cross-roller bearings and thin-section angular contact bearings capable of supporting simultaneous radial, axial, and tilting moment loads within ultra-compact housings.
2. Drive Axles for AGVs and Autonomous Mobile Robots (AMRs)
Automated Guided Vehicles (AGVs) and Autonomous Mobile Robots (AMRs) deployed in smart warehousing and automotive assembly plants operate under harsh, continuous-duty cycles. Their drive units integrate low-voltage DC servo motors, high-efficiency planetary gearboxes, and reinforced bearing assemblies.
System Performance Advantages:
- Heavy Load Capacity: Heavy-duty deep groove ball bearings and double-row tapered roller bearings absorb heavy dynamic impacts from uneven factory floors.
- Thermal Stability: Brushless servo motors with integrated thermal management prevent over-temperature shutoffs during full-capacity continuous transport.
- Precise Wheel Speeds: High-resolution optical or magnetic absolute encoders provide precise speed feedback for micro-steering adjustments and path tracking.
3. CNC Machine Feed Axes, Automated Assembly Lines & Electric Fasteners
Precision manufacturing platforms—such as CNC milling feed axes, robotic pick-and-place gantry systems, and automatic screw-locking electric power tools—demand instantaneous power delivery and sub-micron positioning repeatability.
Core Technical Attributes:
- Fastening Tools (Electric Screwdrivers): Micro-servos deliver digital torque-limiting performance, stopping rotational torque within accurate tolerance limits to prevent thread stripping in fast-paced electronic assembly lines.
- CNC Feed Drives: Ultra-precision ball screw support bearings paired with AC servo drives handle rapid forward-reverse directions with minimal friction loss and zero backlash.
Technical Specification Matrix across Key Applications
| Application Category | Motor & Servo Selection | Bearing Configuration | Primary Performance Focus |
|---|---|---|---|
| Humanoid Joints & Cobots | Frameless BLDC / Direct Drive Servos | Cross-Roller & Harmonic Drive Bearings | Torque Density, Compact Footprint, Zero Backlash |
| AGV / AMR Traction Systems | Low-Voltage DC Brushless Servos | High Radial Angular Contact Ball Bearings | Impact Endurance, Continuous Load Duty, Thermal Efficiency |
| CNC Machinery & Feed Axes | High-Speed AC Servos with Absolute Encoders | High-Rigidity Precision Ball Screw Support Bearings | Positional Accuracy, Sub-Micron Precision, Fast Start/Stop Response |
| Automated Electric Tooling | Miniature Digital Torque Servo Motors | High-Speed Miniature Deep Groove Bearings | Rapid Dynamic Response, Repeatable Torque Shut-off |
Frequently Asked Questions (FAQ)
Why are frameless BLDC motors preferred over traditional cased motors in humanoid robot joint design?
Frameless BLDC motors consist only of a rotor and stator, allowing mechanical engineers to integrate them directly inside custom housing structures (such as harmonic drive strain gears). This design reduces extra couplings, eliminates housing weight, drastically increases joint torque density, and improves overall motion dynamic efficiency.
How do precision angular contact bearings handle frequent start-stop cycles in AGV drives?
Engineered with optimized ball cage geometries, high-purity bearing steel, and specialized synthetic grease formulations, high-precision angular contact bearings maintain uniform oil-film distribution under heavy loads. This resists surface fretting corrosion and micro-sliding fatigue caused by rapid torque variations and continuous direction changes.
