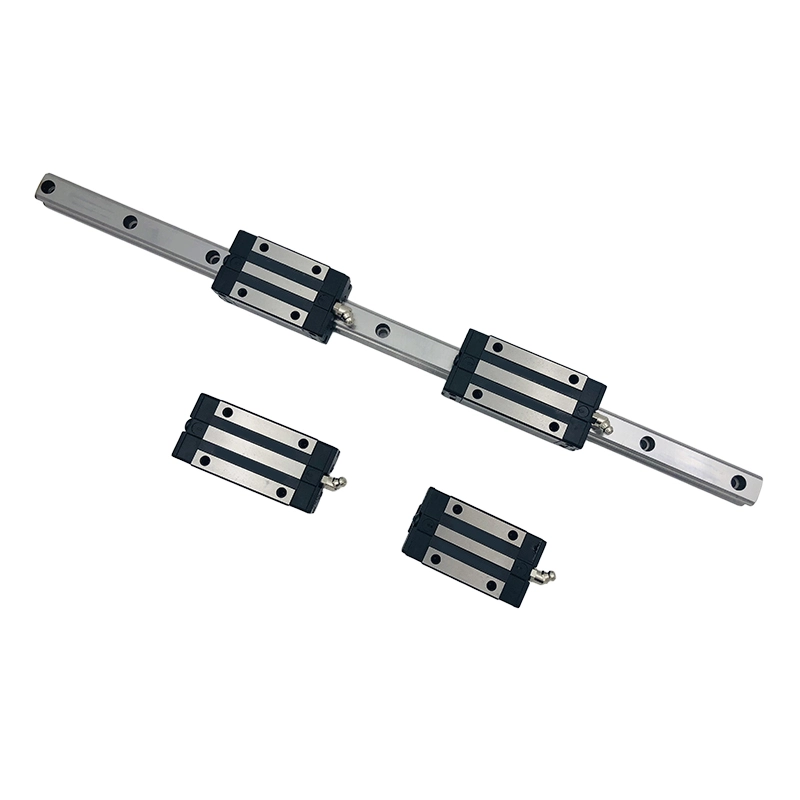

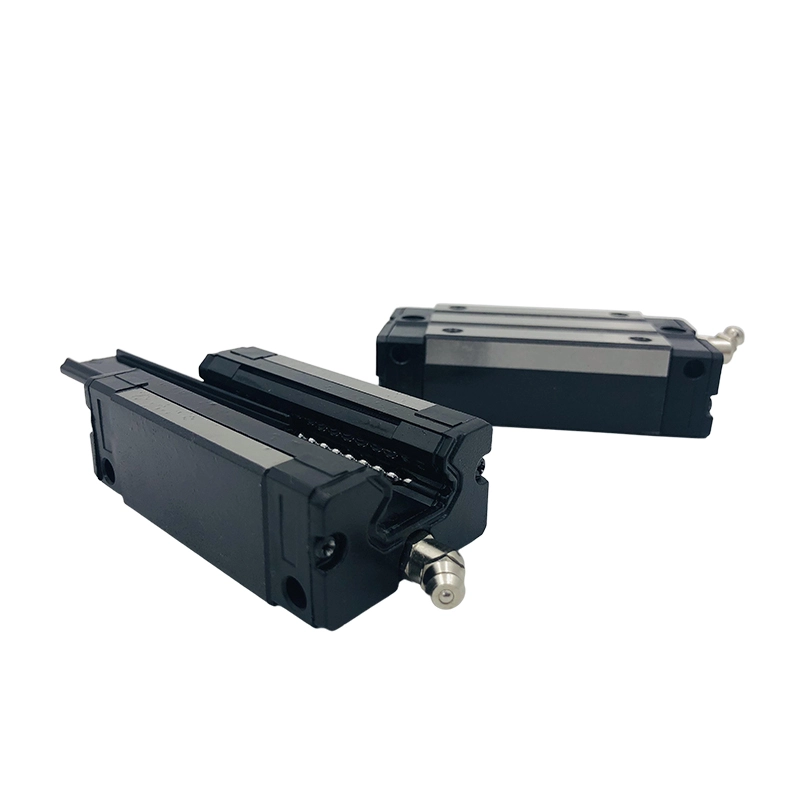

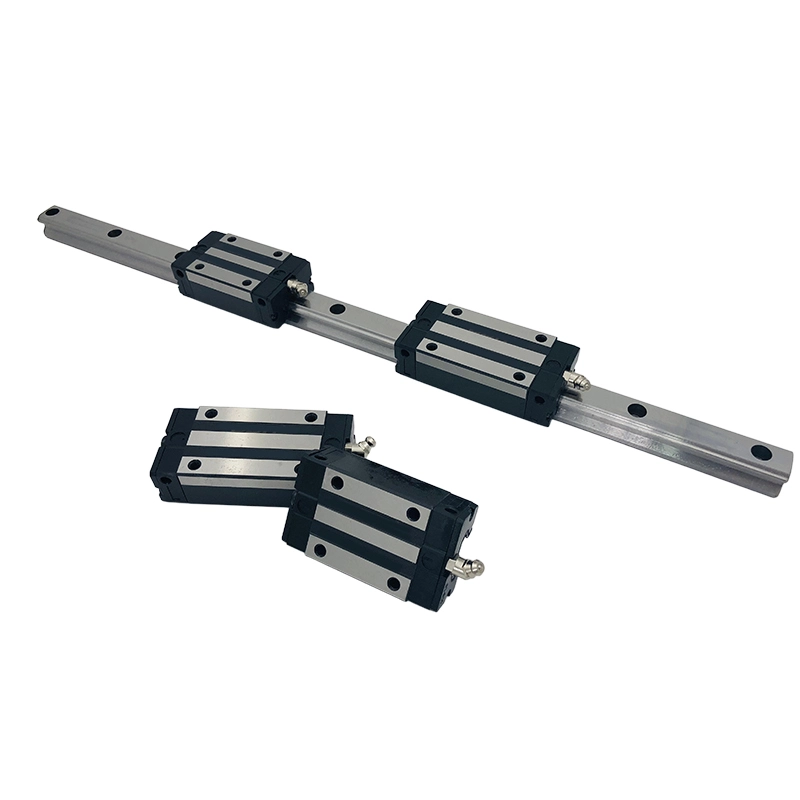

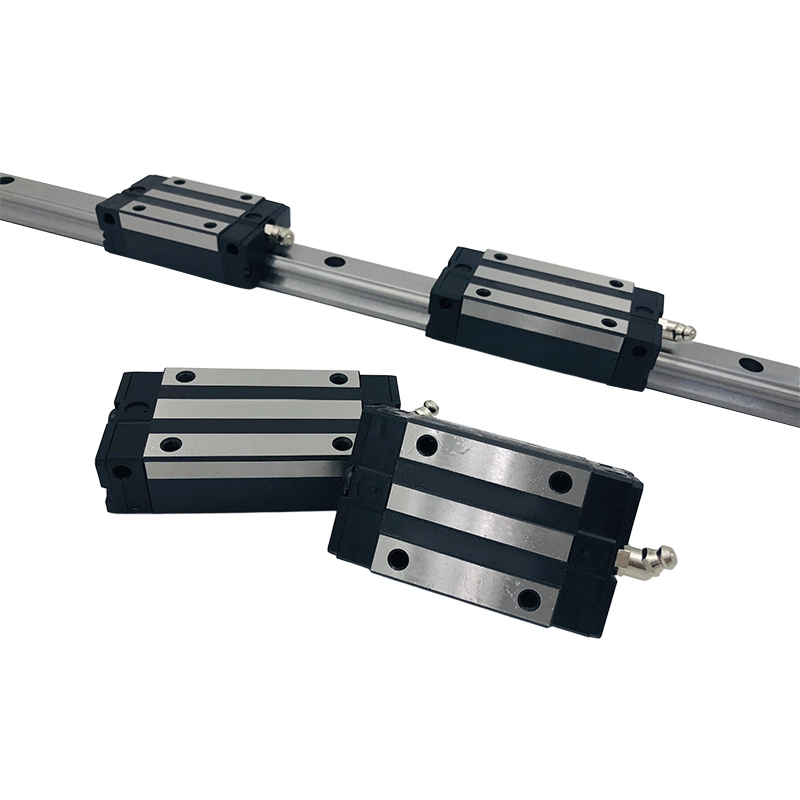

High Precision Linear Guide Rail HGR15 HLH15CA Block Slider Carriage Linear Slider for CNC Machine

Product Description

The HLH15CA Linear Slider Carriage is a premium-grade linear motion component designed for industrial automation, CNC machinery, and high-accuracy applications. Featuring a robust construction with precision-ground rails and high-load ball , it ensures smooth movement, minimal friction, and long service life.

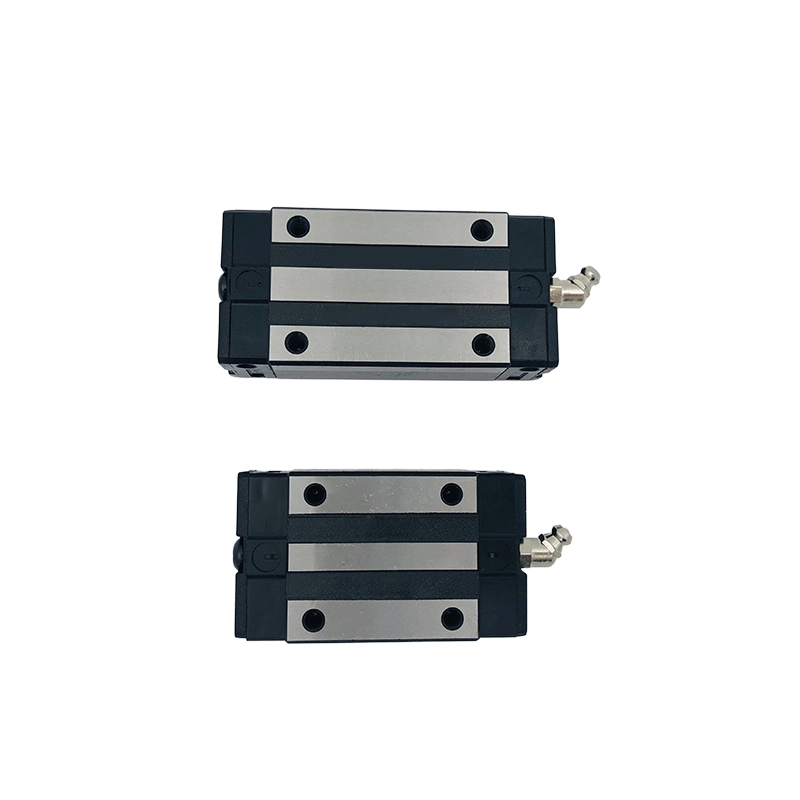

HLH15CA Linear Slider

Our advantages

The HLH15CA Block Slider is a precision linear motion component designed for smooth and stable sliding applications. It features a compact block design with high-load capacity, typically incorporating ball bearings or rollers for low friction and long service life. The unit is constructed from durable materials (e.g., hardened steel or aluminum alloy) to withstand repetitive motion and mechanical stress.

Features of HLH15CA Block Slider

Type: HLH15CA Block Slider
Dynamic Load Rating: Standard Configuration: 11.38~16.97 kN (varies by preload level)
Speed Capability: Maximum Speed: 2~5 m/s (depends on lubrication and acceleration)
Common Applications: industrial automation, CNC machinery, and high-accuracy applications.

Type	Linear Slider
core components	Slider
weight	0.18KG
Model Number	HLH15CA
Mounting bolt for rail	M4x16 mm
Material	20CrMo
Hardness	HRC 58-62
Sample	Avaliable
OEM	Accept
Series	Linear Blocks HLH15CA Linear Guide-sided seal
Hardness	HRC 58-62
Accuracy	C5 C7
place of origin	Guangdong, China

Production Customization Process

HLH15CA Block Slider

HLH15CA Block Slider Application

CNC machining centers
Automated production lines
Medical imaging equipment
Robotics and pick-and-place systems

HLH15CA Block Slider

Production Line 1

HLH15CA Block Slider

Production Line 2

HLH15CA Block Slider

Production Line 3

HLH15CA Block Slider

Production Line 4

HLH15CA Block Slider

Production Line 5

HLH15CA Block Slider

Production Line 6

Shenzhen Wanyuan Bearing Co., Ltd. is a specialized manufacturer and innovator in precision transmission components, dedicated to providing high-performance solutions for industrial automation and machinery. Our core product portfolio includes: Bearings: High-precision radial, angular contact, and linear bearings for diverse industrial applications. Sliders & Guides: Robust linear motion systems ensuring smooth operation and durability.Ball Screws (Lead Screws): Precision-engineered screw drives for accurate positioning and load transmission.

With advanced R&D capabilities and stringent quality control, we serve global clients across robotics, CNC equipment, automotive, and aerospace sectors. Committed to technological excellence, Shenzhen Wanyuan combines cutting-edge design with cost-efficiency to deliver reliable motion control solutions.
