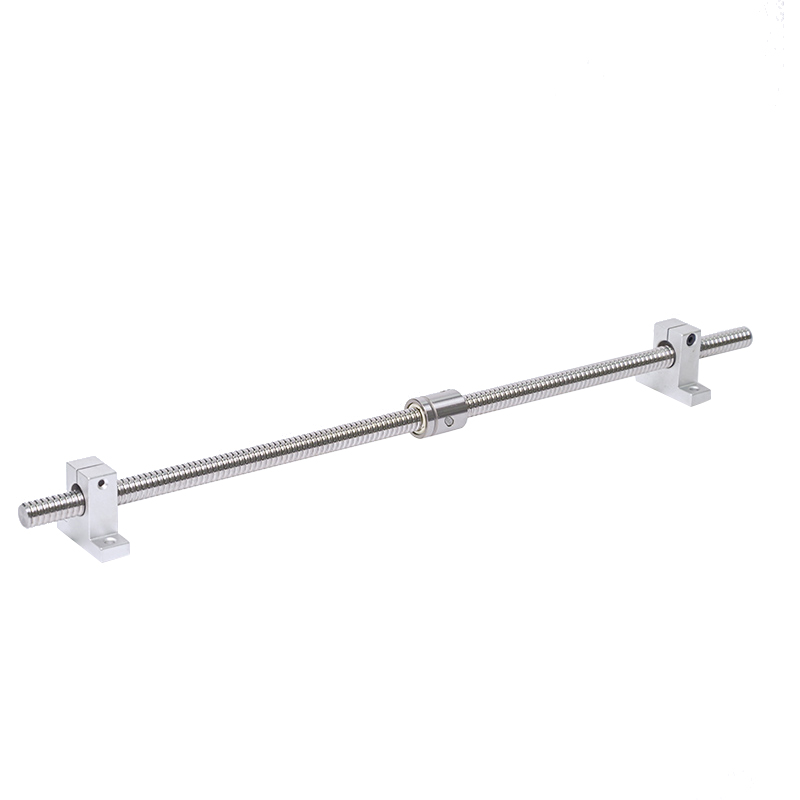

High Precision Ball Screw SCI Series SCI01604 with Nut and Bearing Core Components

Product Description

This SCI01604 ball screw features a 16mm-diameter precision-ground shaft with single-nut construction Engineered for high-accuracy linear motion applications, the assembly delivers exceptional positioning repeatability (±0.01mm) and smooth operation with minimal backlash.

Ball Screw SCI01604

Our advantages

The SCI01604 series delivers ±0.01mm precision (ISO Class 7) with 4-turn nut for smoother motion. Its 16mm hardened shaft supports 973N dynamic loads Pre-loaded single-nut design minimizes backlash (<0.005mm) while simplifying maintenance. Features include flanged mounting for linear guides, 4mm lead for balanced speed/thrust. Ideal for CNC, medical, and automation systems requiring reliability and accuracy.

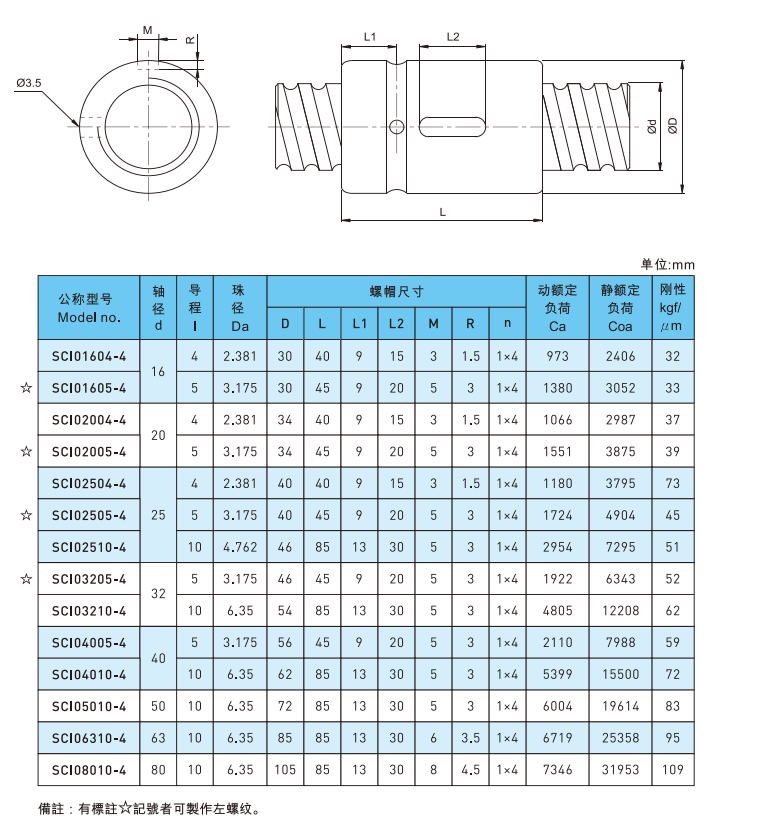

Features of SCI01604 Ball Screw

SCI01604 Ball Screw
Internal return design saves more space.
Small driving torque only one third of ACEM ball screw.
High accuracy guaranteed.
Fine feed, can be controlled within 0.1μm.
No backlash, High rigidity.

Type	Ball Screw
core components	Bearing, Nut, Shaft, Balls
weight	3KG
Model Number	SCI01604
Diameter of axle	16-80mm
Lead	4-10mm
Accuracy Grade	C7 , C5
Material	Steel
Sample	Avaliable
OEM	Accept
Series	Ball Screw SCI seires
place of origin	Guangdong, China

Ball Screw SCI01604

Production Customization Process

Ball Screw SCI01604

SCI01604 Ball Screw Application

CNC machinery
Semiconductor & Electronics
3D Printing & Additive Manufacturing
Optical & Metrology Equipment

Ball Screw SCI01604

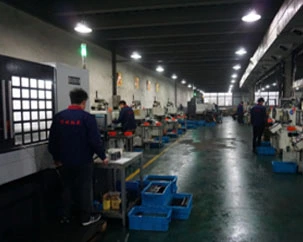

Production Line 1

Ball Screw SCI01604

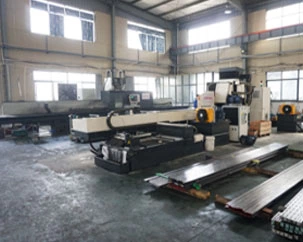

Production Line 2

Ball Screw SCI01604

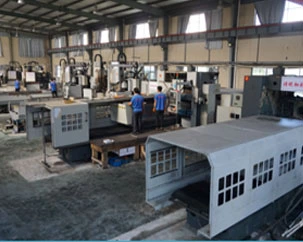

Production Line 3

Ball Screw SCI01604

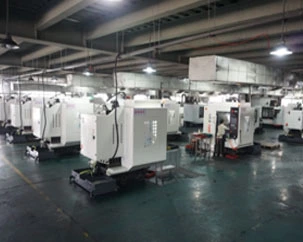

Production Line 4

Ball Screw SCI01604

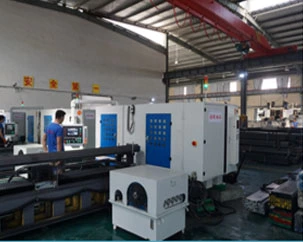

Production Line 5

Ball Screw SCI01604

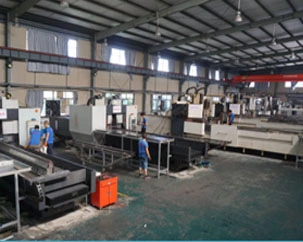

Production Line 6

Shenzhen Wanyuan BearingCo., Ltd. is a specialized manufacturer and innovator in precision motion components, dedicated to providing high-performance solutions for industrial automation and machinery. Our core product portfolio includes: Bearings: High-precision radial, angular contact, and linear bearings for diverse industrial applications. Sliders & Guides: Robust linear motion systems ensuring smooth operation and durability.Ball Screws (Lead Screws): Precision-engineered screw drives for accurate positioning and load transmission.

With advanced R&D capabilities and stringent quality control, we serve global clients across robotics, CNC equipment, automotive, and aerospace sectors. Committed to technological excellence, Shenzhen Wanyuan combines cutting-edge design with cost-efficiency to deliver reliable motion control solutions.
