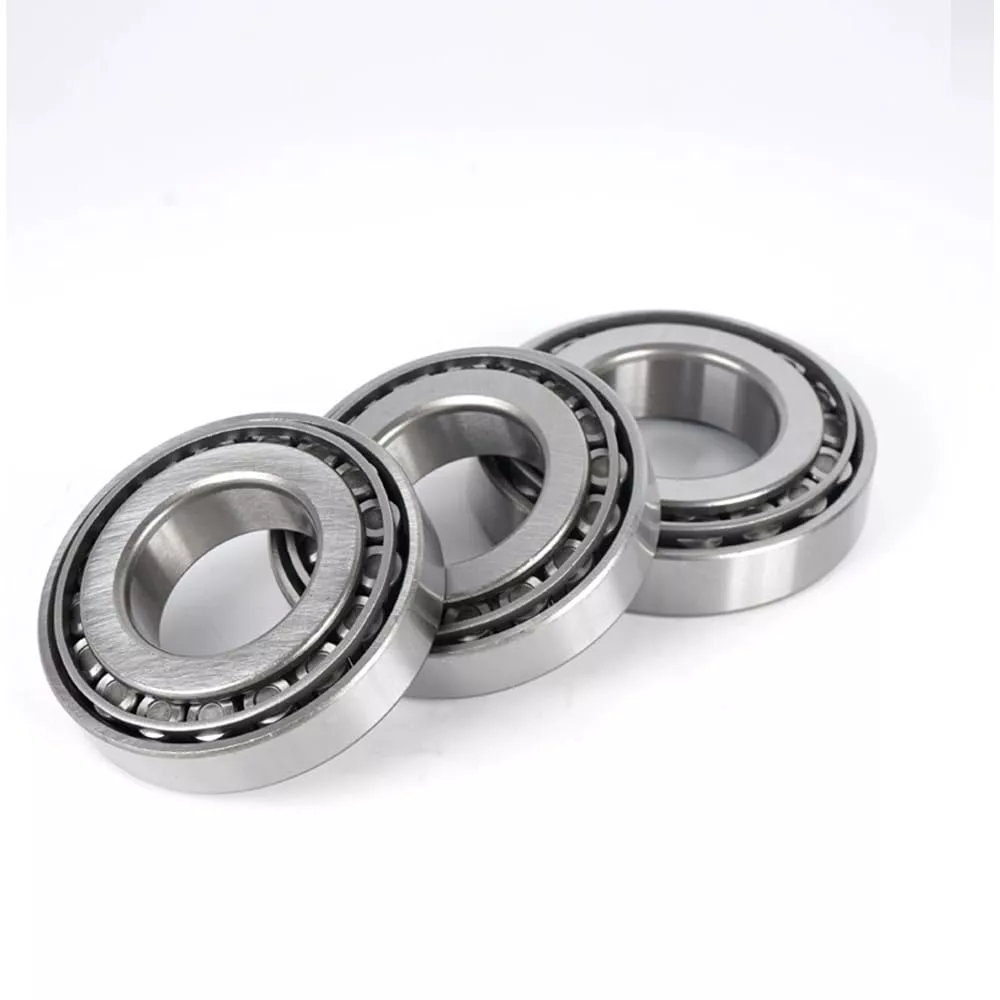

Factory Supply 643/633 H715344/H715310 HM914545/HM914510 655/653 744A/742 9382/9321 H715347/H715311Tapered Roller Bearings

Product Description

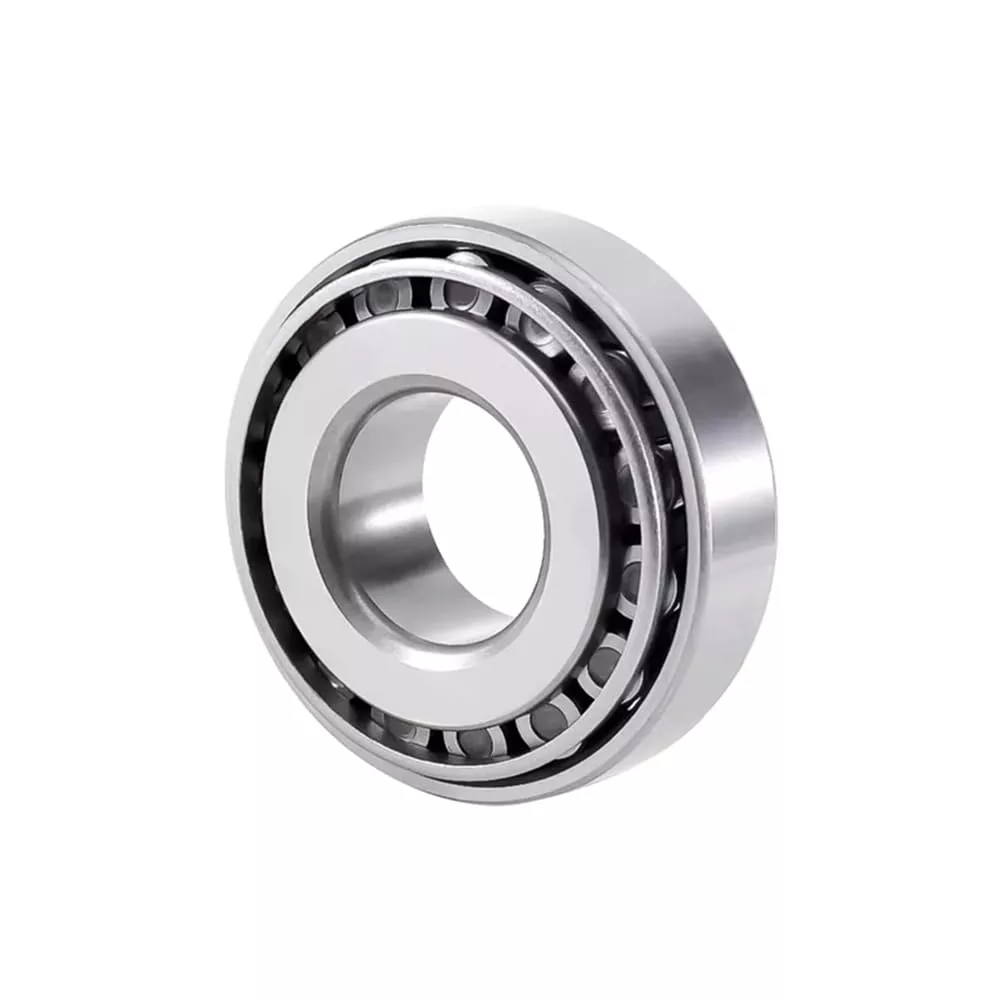

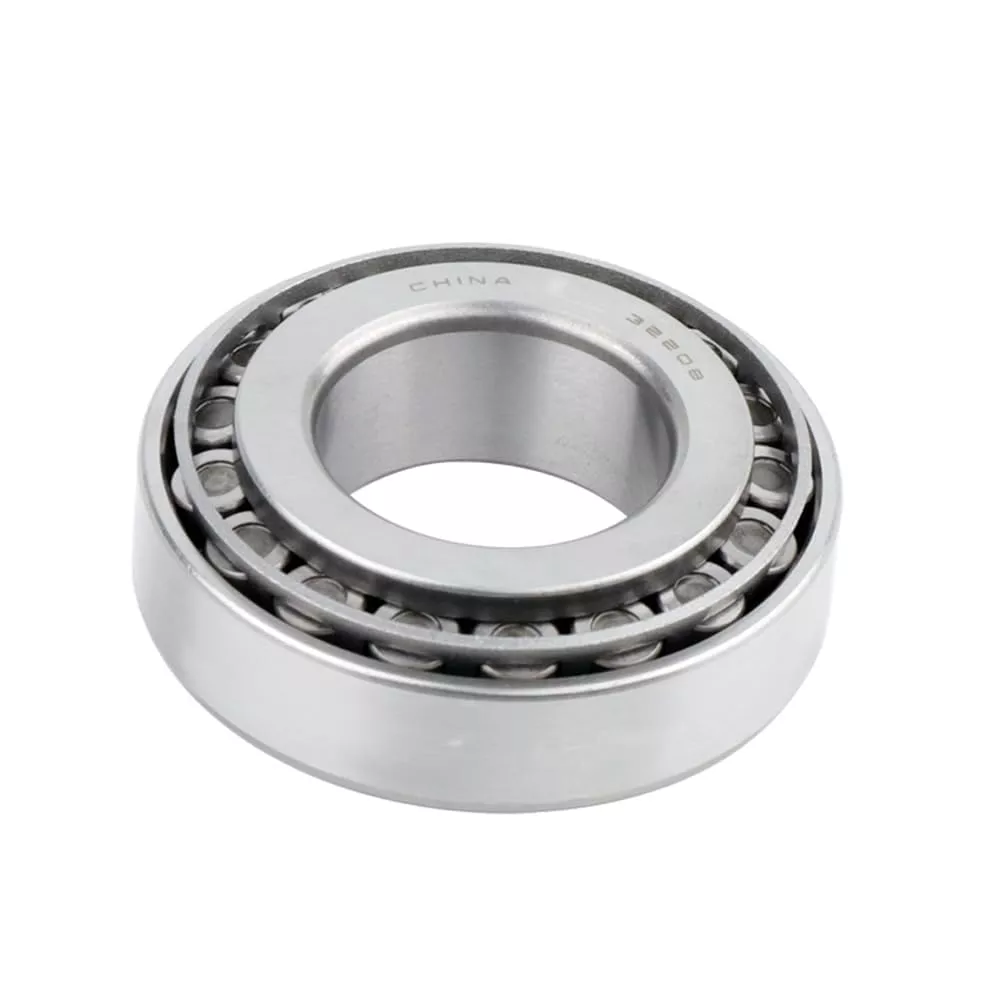

The 643/633 H715344 Tapered Roller Bearing is the most basic and most widely used type of tapered roller bearing. It consists of two main separable parts: the cone (inner ring) assembly and the cup (outer ring). It is typically mounted in opposing pairs on a shaft.

Features of  643/633 H715344 Tapered Roller Bearings

643/633 H715344 Tapered Roller Bearing is the most basic and most widely used type of tapered roller bearing. It consists of two main separable parts: the cone (inner ring) assembly and the cup (outer ring). It is typically mounted in opposing pairs on a shaft.

• Exceptional Radial/Axial Load Capacity: Precision-engineered conical rollers and raceways provide optimal load distribution for combined radial and thrust forces in demanding applications.
• Tapered Design: The rollers and raceways are conical (tapered), designed to manage combined loads—significant radial and axial (thrust) loads simultaneously. The axial load capacity is high in one direction.
• Single-Row Configuration: This is a single-row bearing, meaning one set of rollers arranged between a single cone (inner ring) and cup (outer ring). It's a fundamental, widely used design for applications where axial load is primarily in one direction.
• Metric Dimensions: The prefix "643/633" indicates this bearing has metric dimensions, conforming to ISO standards. The "H715344" is a specific manufacturer's drawing number or suffix detailing exact internal specifications.

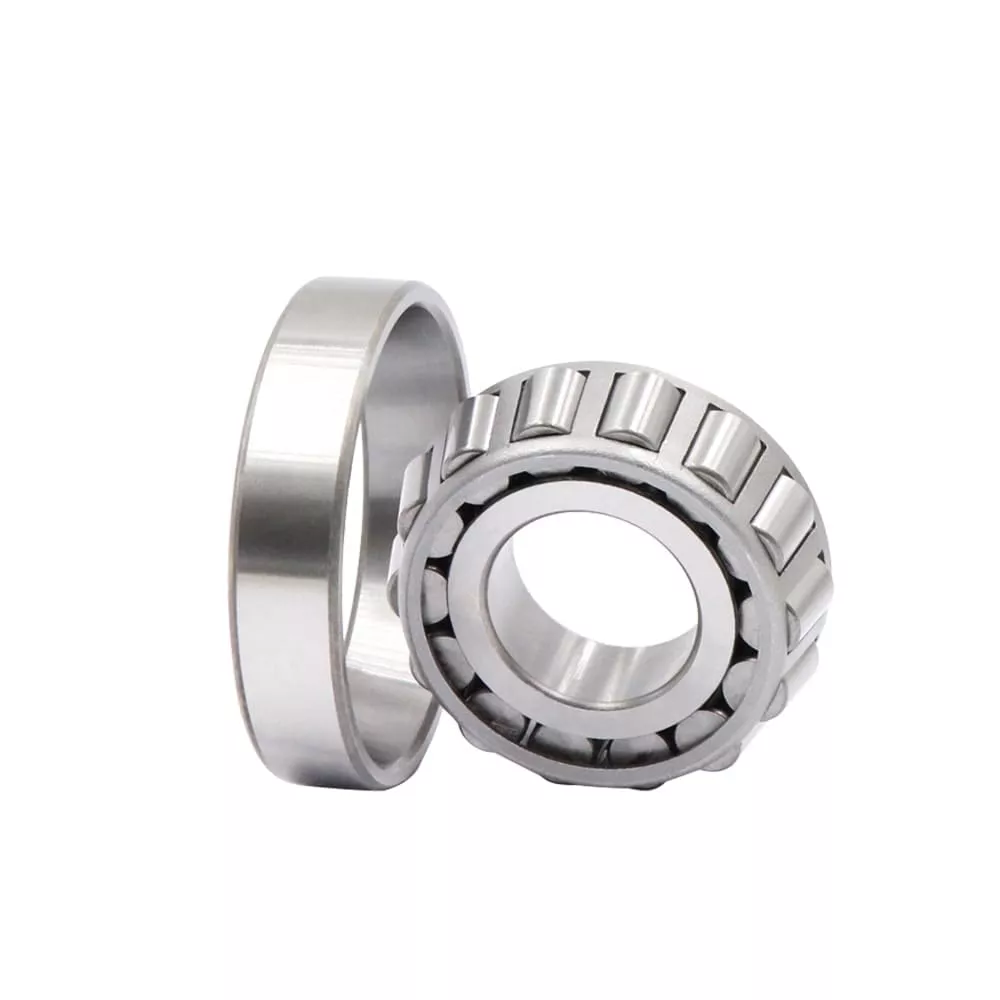

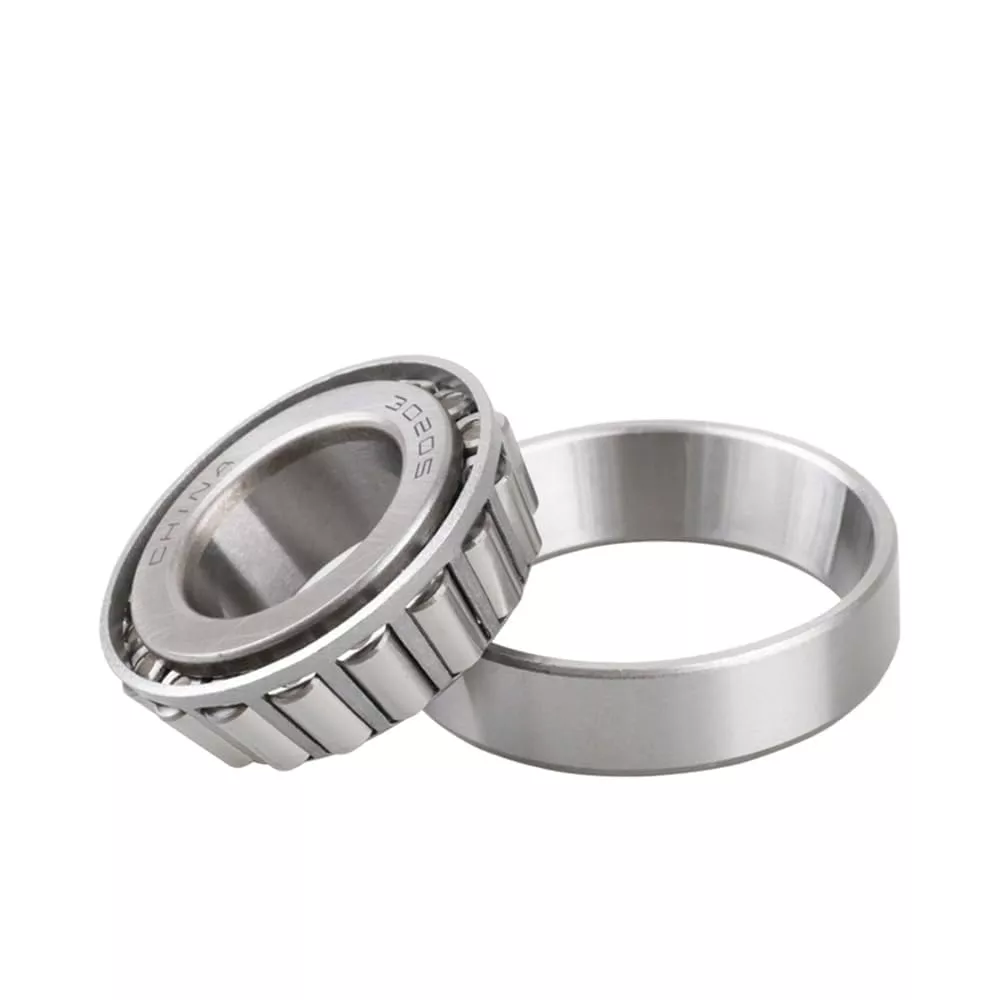

• Separable Components: Like most tapered roller bearings, the cone assembly (inner ring with rollers and cage) and the cup (outer ring) can be installed separately. This simplifies mounting and dismounting, especially in tight configurations.
• Precision and Adjustment: These bearings require careful adjustment of axial clearance (end-play) or preload during installation. Proper adjustment is critical for optimal performance, load distribution, and bearing life.
• High Rigidity: Due to the line contact of the tapered rollers, they provide high rigidity, minimizing shaft deflection under heavy loads.

Production Customization Process

643/633 H715344 Tapered Roller Bearings Manufacture Application

Heavy-Duty Gearboxes (industrial, automotive, agricultural)

Differential and Pinion Settings in trucks and heavy machinery

Construction and Mining Equipment

Agricultural Machinery (axles, transmissions)

Maintenance and Replacement for original equipment using this part number.

Shenzhen Wanyuan Bearing Co., Ltd. is a professional bearing manufacturer integrating R&D and innovation. The company mainly produces metric bearings with inner diameters of 1-50MM, imperial bearings, spherical roller bearings, double-row cylindrical bearings, cylindrical roller bearings, four-point angular contact bearings, flange bearings, ceramic bearings and customized non-standard bearings.
