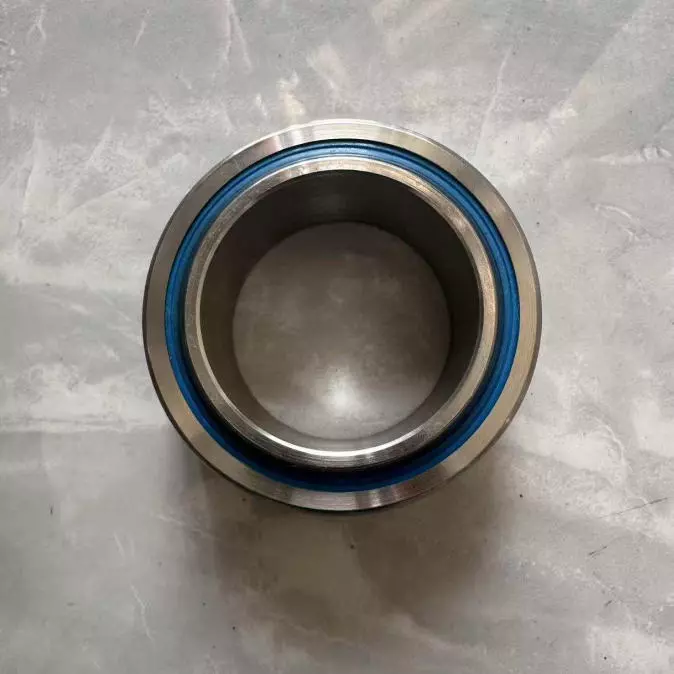

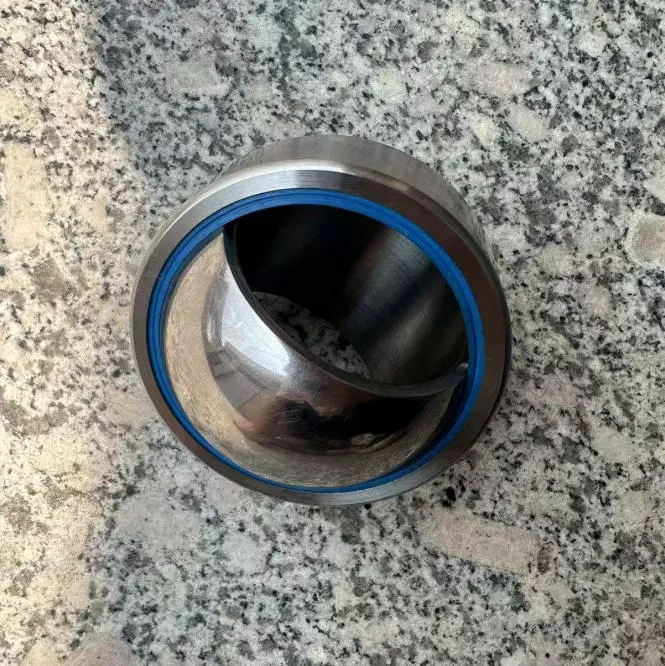

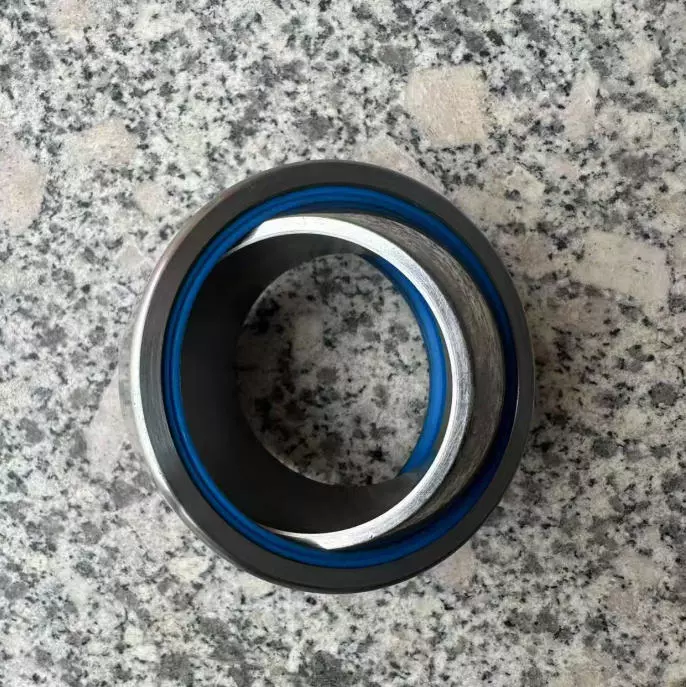

Bearing PTFE GE70 GE702LS 70*105*49MM Self-lubricating Radial Spherical Plain Bearings

Product Description

GE70 is a robust, 70 mm bore, maintenance-friendly spherical plain bearing designed to handle very high radial loads while accommodating significant misalignment. Its steel-on-steel construction makes it ideal for heavy, slow-moving, or oscillating machinery in harsh environments.

Features of GE70 Spherical Plain Bearing

Type: Radial Spherical Plain Bearing. It is designed to accommodate radial loads (loads perpendicular to the shaft) primarily.

Articulation: Its key feature is the ability to accommodate misalignment. The spherical inner ring can slide and rotate within the outer ring, allowing for angular misalignment (typically up to ±2° to ±4°, depending on the series and internal clearance). It can also accommodate rotational movement.

Sliding Contact Surface: The GE series features a hardened and ground steel-on-steel sliding surface. This makes it robust and suitable for:

High loads.

Slow to moderate oscillating movements.

Applications where lubrication is difficult or impossible.

Lubrication: It comes with initial lubrication and has grooves and holes for re-lubrication, extending its service life in demanding conditions.

Dimension:
d     70 mm    Bore Diameter (Shaft size)
D    125 mm    Outer Diameter
B    70 mm    Inner Ring Width
C    54 mm    Outer Ring Width
dₐ min.    82 mm    Minimum Shoulder Diameter (Housing)
d₂ ≈    98 mm    Outer Ring Seal Diameter
r₁,₂ min.    2.1 mm    Minimum Chamfer Radius

Production Customization Process

GE70 Spherical Plain Bearing Application

GE 70 spherical plain bearings are used in heavy-duty applications requiring high load capacity and the ability to handle misalignment and articulation. Common examples include:

Construction Equipment: Excavator booms, arms, and linkages.

Agricultural Machinery: Ploughs, harvesters, and tractor linkages.

Material Handling: Cranes, forklifts, and conveyor systems.

Industrial Machinery: Hydraulic cylinders, presses, and valve linkages.

Marine and Offshore: Steering systems and deck cranes.

Wind Turbines: Pitch and yaw control mechanisms.
