6202ZZ High Temperature Deep Groove Ball Bearing for Industrial Fan

Product Description

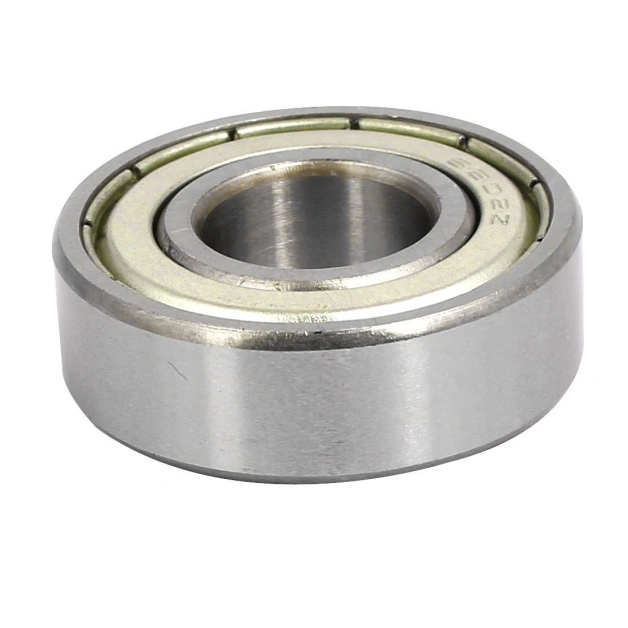

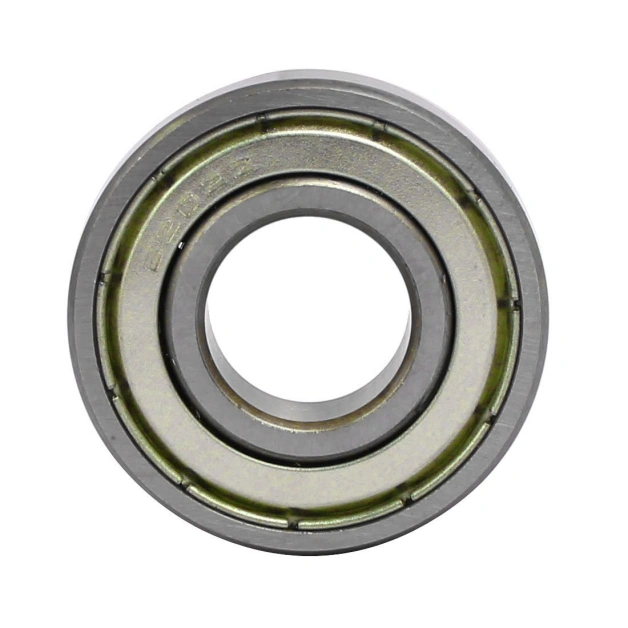

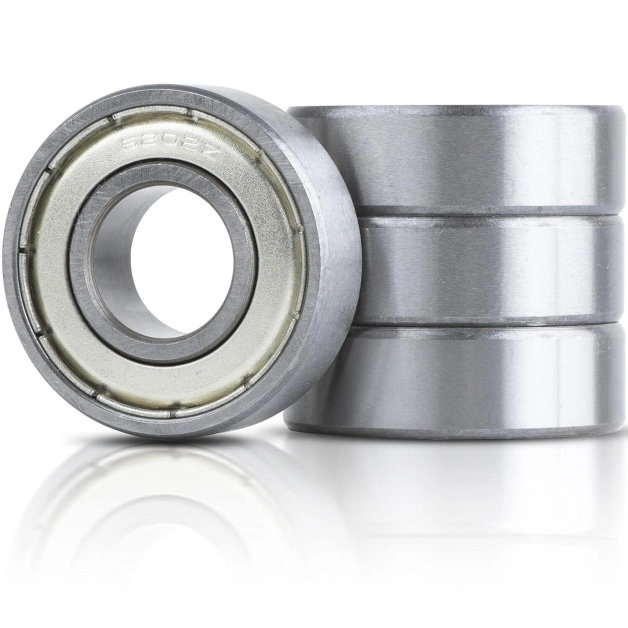

6202zz is a high-temperature deep groove ball bearing with an inner diameter of 15 mm, an outer diameter of 35 mm, and a thickness of 11 mm .

WYOO 6202zz bearing

6805RS Chrome Steel Deep Groove Ball Bearing

Basic Parameters and Structure

· Dimensions: Inner diameter (d) = 15 mm, outer diameter (D) = 35 mm, width (B) = 11 mm .
· Material: Made from high-temperature bearing steel. The cages are made of F2 graphite steel, and the entire surface of the bearings and dust covers is treated with manganese phosphating to improve lubricant adhesion and operational performance .
· Sealing: Features non-contact dust covers on both sides, providing protection against solid contaminants .
· Internal Clearance: The radial internal clearance is multiple times the C5 clearance, preventing seizure even during rapid cooling .

Features of 6202z Deep Groove High Quality Bearing

Temperature Range: Can operate at temperatures up to 250°C , with some descriptions mentioning a maximum limit of 350°C .
Lubrication: Lubricated with a graphite-based high-temperature lubricant for life, eliminating the need for relubrication.
Optimized Design: The internal clearance and lubricant used are optimized for high-temperature applications .

Brand	WYOO
Product Name	Deep groove ball bearing
Model Number	6202zz
Size	15x35x11mm
Quality Standard	ISO9001-2000 & TS16949/ISO14001
Delivery Date	Normally takes within 7 working days,special bearings need about 30 working days.
Rolling Body	Steel ball
Row	Single Row
Precision	P0, P4, P5, P6; Usually P0.
Material	Chrome Steel (GCr15)

Production Customization Process

6202ZZ Deep Groove Ball Bearing

6202zz Deep Groove High Quality Bearing Application

Suitable for high-temperature applications such as: Industrial machinery: engineering machinery, machine tools, steel, metallurgy, petroleum, chemicals, power, mining machinery, construction machinery .Specific equipment: industrial fan, electric motors, wheels, garden machinery , industrial furnaces, fan boilers , and conveying equipment .

6202ZZ Deep Groove Ball Bearing

External groove grinding

6202ZZ Deep Groove Ball Bearing

Bearing production

6202ZZ Deep Groove Ball Bearing

Bearing packaging workshop

6202ZZ Deep Groove Ball Bearing

Internal groove grinding

6202ZZ Deep Groove Ball Bearing

Automated production

6202ZZ Deep Groove Ball Bearing

Bearing inspection

Shenzhen Wanyuan Bearing Co., Ltd. is a professional bearing manufacturer integrating R&D and innovation. The company mainly produces metric bearings with inner diameters of 1-50MM, imperial bearings, spherical roller bearings, double-row cylindrical bearings, cylindrical roller bearings, four-point angular contact bearings, flange bearings, ceramic bearings and customized non-standard bearings.
