 High Torque 30 RPM DC 6V 12mm Hub Dc Electric Brush Motor N20 12V DC Gear Motor for RC Car
 High Torque 30 RPM DC 6V 12mm Hub Dc Electric Brush Motor N20 12V DC Gear Motor for RC Car
 High Torque 30 RPM DC 6V 12mm Hub Dc Electric Brush Motor N20 12V DC Gear Motor for RC Car
 High Torque 30 RPM DC 6V 12mm Hub Dc Electric Brush Motor N20 12V DC Gear Motor for RC Car
 High Torque 30 RPM DC 6V 12mm Hub Dc Electric Brush Motor N20 12V DC Gear Motor for RC Car

High Torque 30 RPM DC 6V 12mm Hub Dc Electric Brush Motor N20 12V DC Gear Motor for RC Car

N20 motor is an extremely common type of small, gear DC motor used in countless projects, from robotics and drones to automatic car windows and camera gimbals.

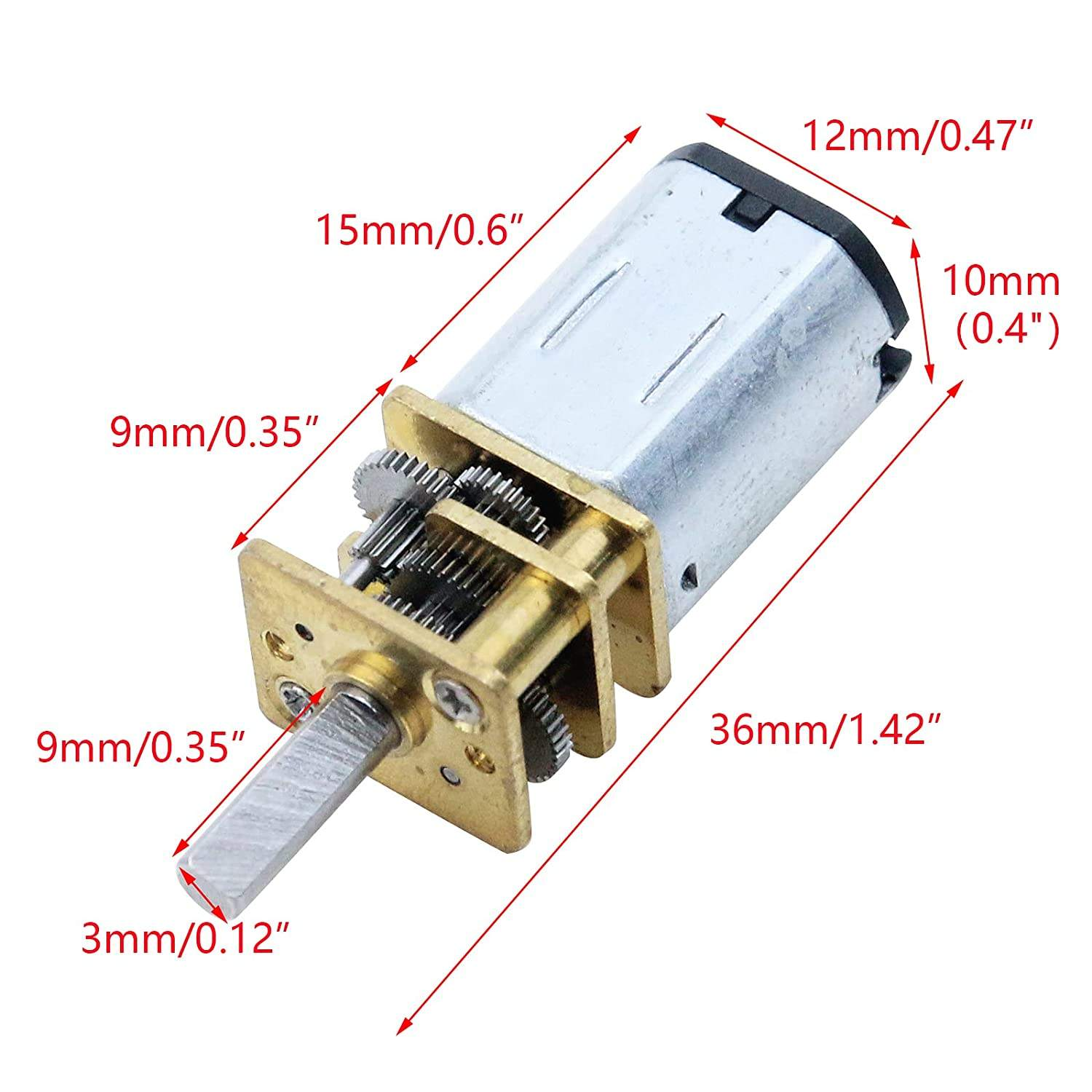

Model : N20 gear motor

Diameter : 12mm

Speed : 30RPM

Voltage : 6V

MOQ : 1000PCS

:

Whatapp:+86 18923489814 +86 13827411085 +86 18823816063

Email:zhangcun@szwyoo.com

Product Details Download





Product Description



N20 motor is an extremely common type of small, geared DC motor used in countless projects, from robotics and drones to automatic car windows and camera gimbals.N20 is the go-to, compact, high-torque workhorse for hobbyist and light-duty commercial applications where small size, low cost, and adequate torque are critical







Features of N20 motor





N20 motor

Our advantages


The primary advantage. Despite its tiny size, the gearbox allows it to produce significant stall torque (often 0.5 kg-cm to 5 kg-cm or more), enabling it to move small wheels, arms, or sliders.






  • Excellent Torque-to-Size Ratio: The biggest selling point.

    Inexpensive: Very low cost, especially in bulk.

    Easy to Interface: Simple two-wire DC control. Speed controlled via PWM from an Arduino/Raspberry Pi.

    Widely Available: Standardized size means many suppliers and compatible accessories (wheels, couplings).

    Variety: Available in many standard voltages, speeds, and shaft types.










Product name: N20 gear motor
Structure
Gear motor
Type
DC motor
Diameter Size
12mm
Weight
0.03(kg)
Model Number
N20
Rated operating voltage 6VDC
 No-load speed
30RPM
Rated current 0.25-1A
Rated torque 0.015-1kg.cm
Shaft length As you request
MOQ 1000PCS
Application Robots,Toys,Automotive Accessories



Production Customization Process

N20 motor

N20 Gear Motor Application



Typical Applications:

Small Robots & Toys: Wheel drives for line-following, sumo, and obstacle-avoidance robots.

Camera Sliders & Gimbals: For smooth panning and movement.

DIY Automation: Automatic plant waterers, mini conveyor belts, tiny blinds/curtain openers.

Vending Machines & Mechanisms: Coin pushers, product dispensers.

Automotive Accessories: Powering small vents, adjusters, or cup holder mechanisms.
